MX-K1
1-7

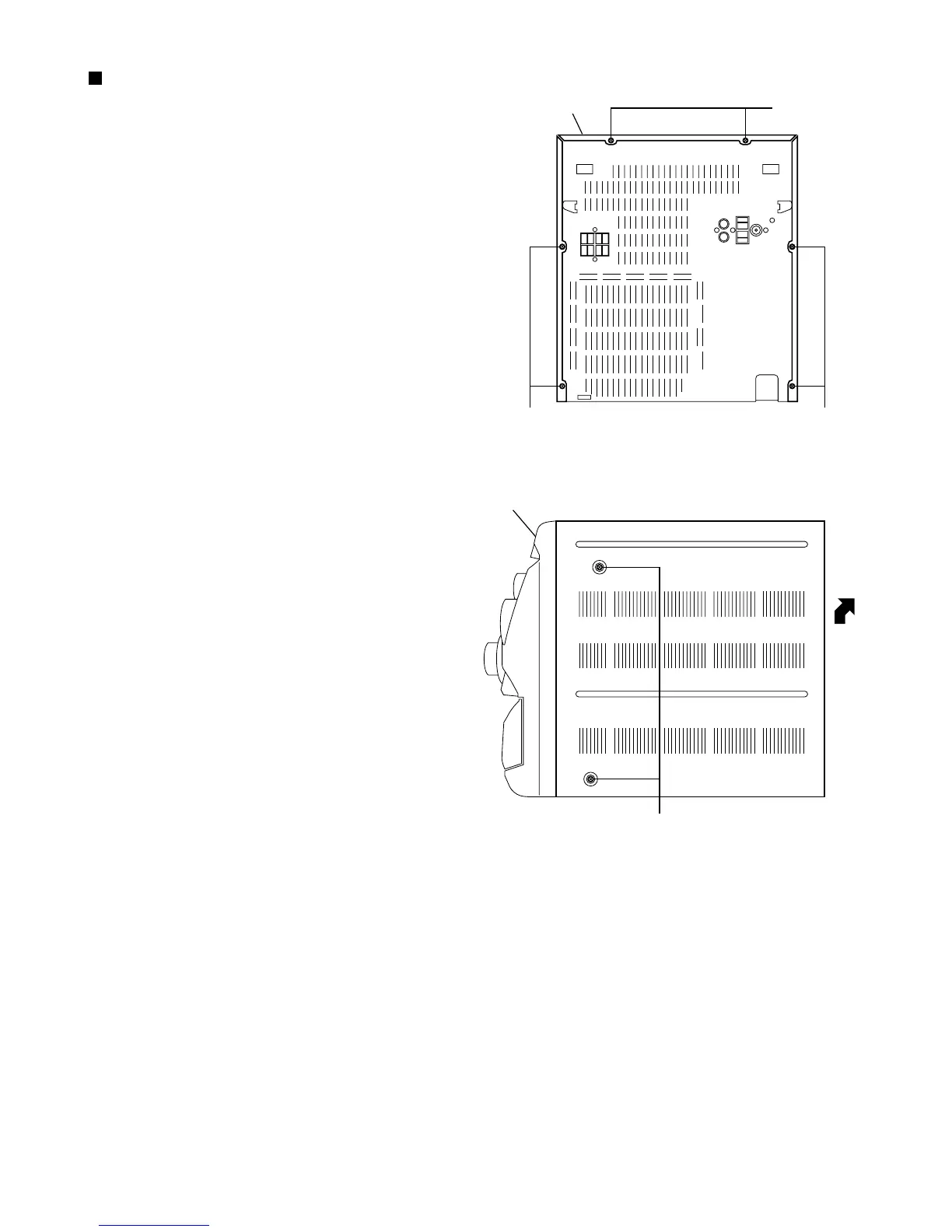

Fig.4
Removing the top cover
(See Fig.4 and 5)
1.
2.
3.
Remove the six screws "B" that retain the top cover
from the rear of the body.
Remove the four screws "C" that retain the top
cover from the two sides of the body.
Remove the top cover from the body by lifting it
toward the rear.
Fig.5
B
BB
Top cover
Front panel assembly
C
