MX-KA3
1-13
Fig.20
Fig.19
Z
Z
Front panel
assembly
P
Front panel
assembly
Earphone jack
PCB
Front panel
assembly
Q
Control/FL
PCB
KEY 2
PCB
KEY 1
PCB
Fig.21

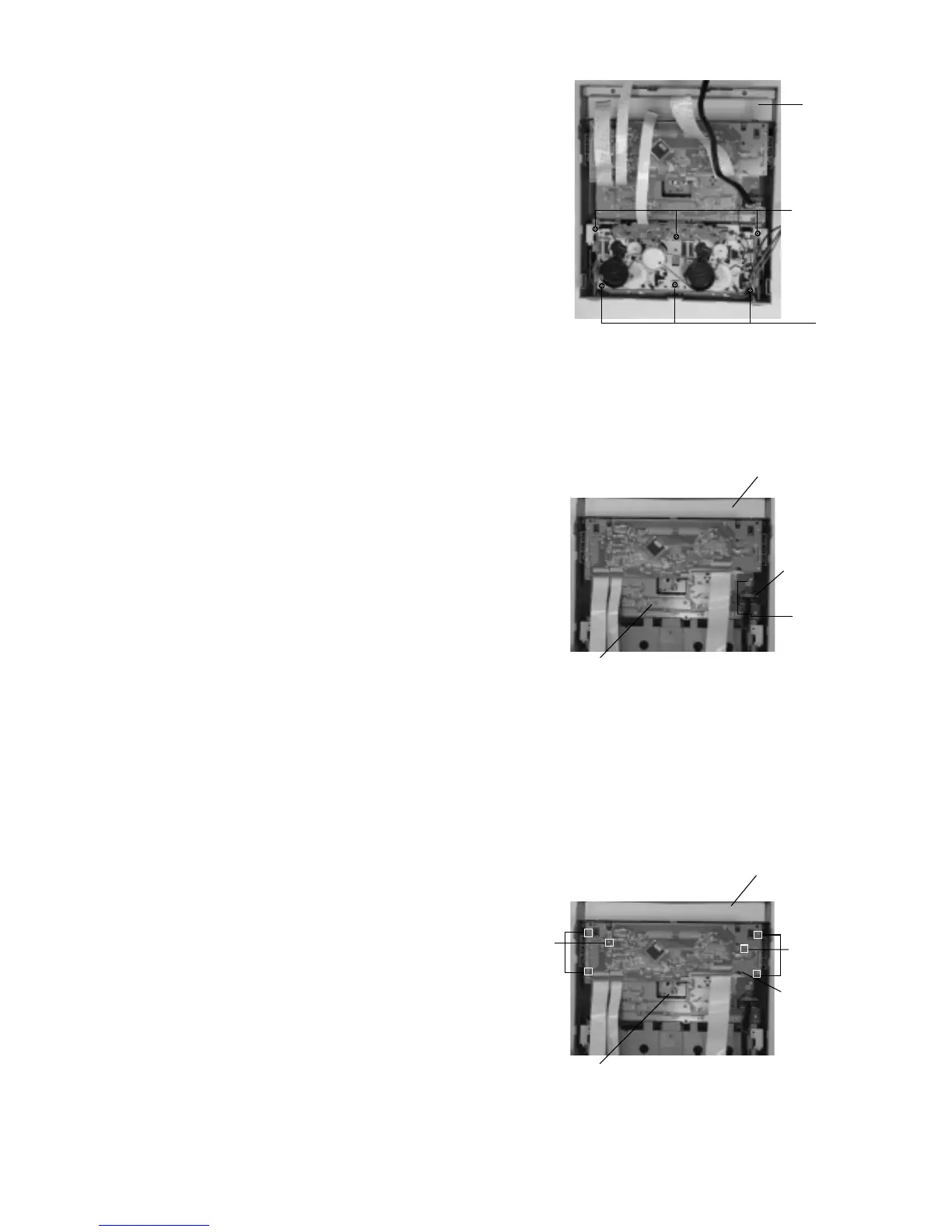

Removing the cassette deck mechanism
(See Fig.19)
Prior to performing the following procedures, remove
the top cover.
Also remove the CD changer unit.
Also remove the front panel assembly.
1. Remove six screws Z retaining the cassette deck
mechanism.
Removing the earphone jack PCB
(See Fig.20)
Prior to performing the following procedures, remove
the top cover.
Also remove the CD changer unit.
Also remove the front panel assembly.
1. Remove the screw with the washer, P that
retains the earphone jack PCB.
Removing the control/FL PCB
(See Fig.21)
Prior to performing the following procedures, remove
the top cover.
Also remove the CD changer unit.
Also remove the front panel assembly.
1. Remove six screws Q that retain the control/FL PCB
from the back of the front panel unit.
Q
To Next Page
