MX-KA3
1-14
Removing the switch PCB and sound
mode and CD function switch PCB
(See Fig.20 to 23)
Prior to performing the following procedures, remove
the top cover.
Also remove the CD changer unit.
Also remove the front panel assembly.
1. Pull out the volume control knob from the front of
the front panel assembly.(Fig.22)
2. Remove six screws Q retaining the front panel
assembly.
3. Remove the control/FL PCB.
4. Remove eleven screws R retaining the switch (key 1)
PCB.(Fig.20)
5. Remove two screws S retaining the sound mode
and CD function (key 2) switch PCB.(Fig.21)

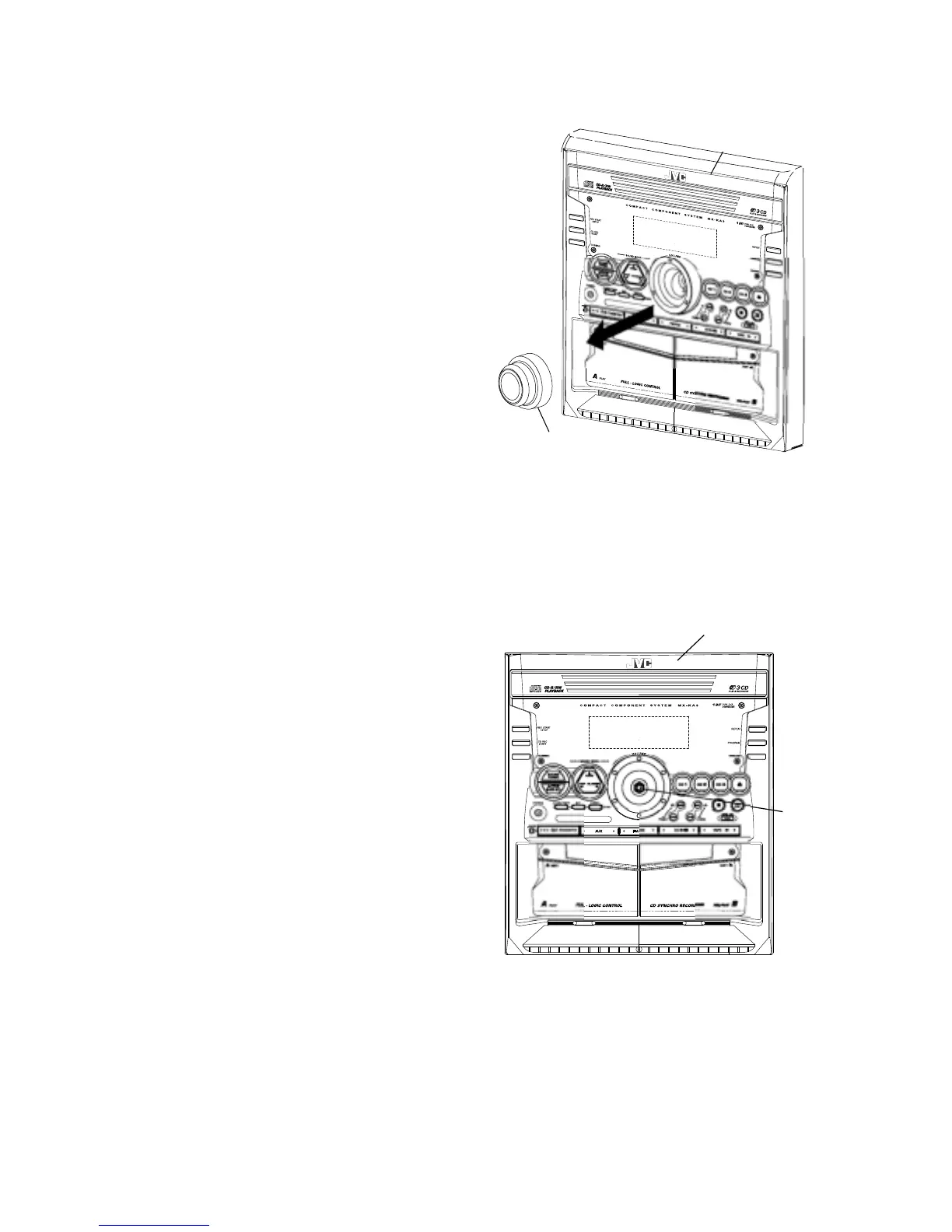

Fig.22
Fig.23
Volume knob
Front panel assembly
Front panel
assembly
Volume
shaft
