 Removing the top cover
(See Fig.4 and 5)
1. Remove six screws C that retain the top cover from
the panel rear of the body.
2. Remove six screws D that retain the top cover from
the two sides of the body.
3. Remove the top cover from the body by lifting it
toward the rear.

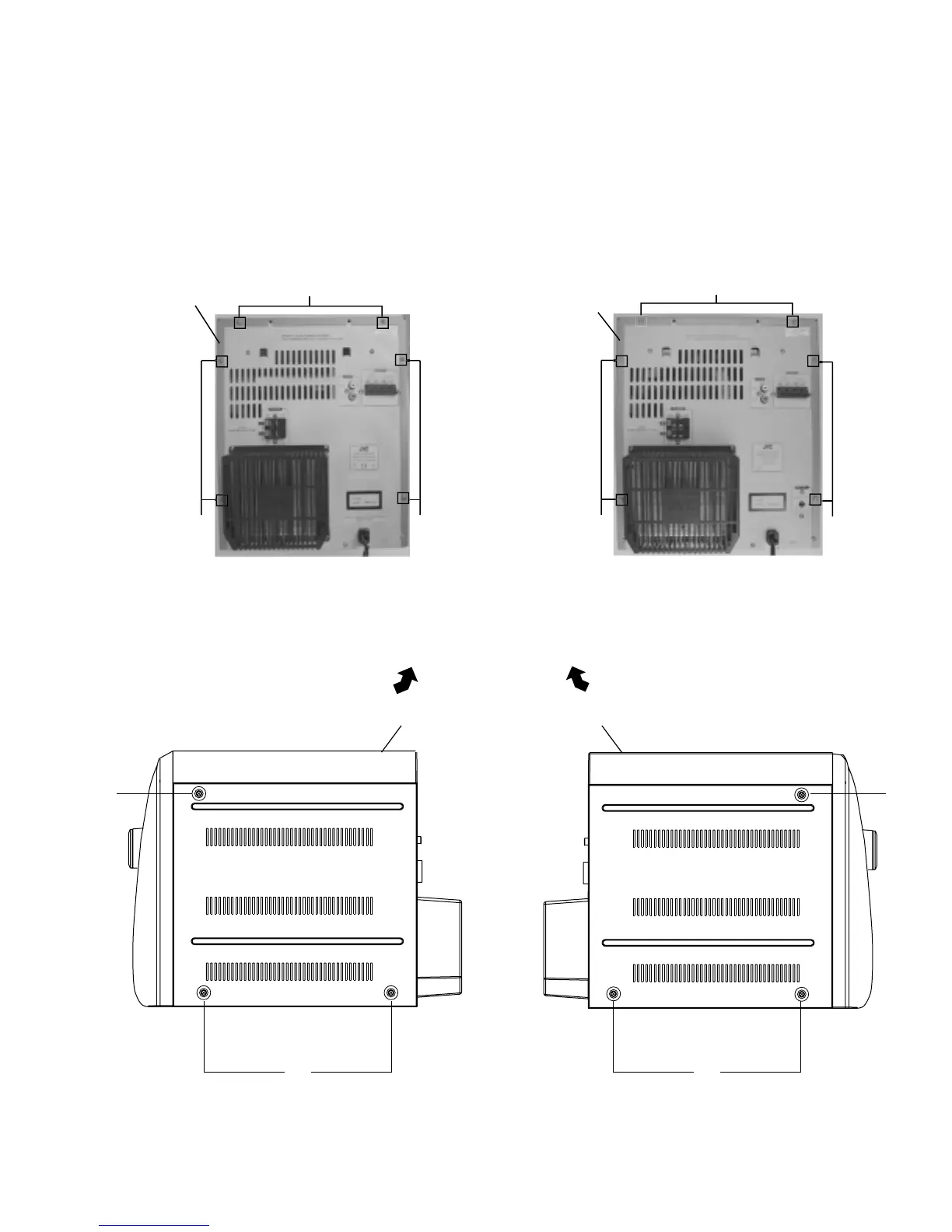

Fig.5
Right Front panel assembly
D
D
Left Front panel assembly
D
D
CA-MXKA3A Fig.4 (A)
Top cove
r
C
C
C
CA-MXKA3U/UJ/UW Fig.4 (B)
Top cove
r
C
C
C
