JVC MX-KA3 Service Manual

MX-KA3
1-8
Fig.6
CD tray panel
Fig.9
CD changer
unit
G

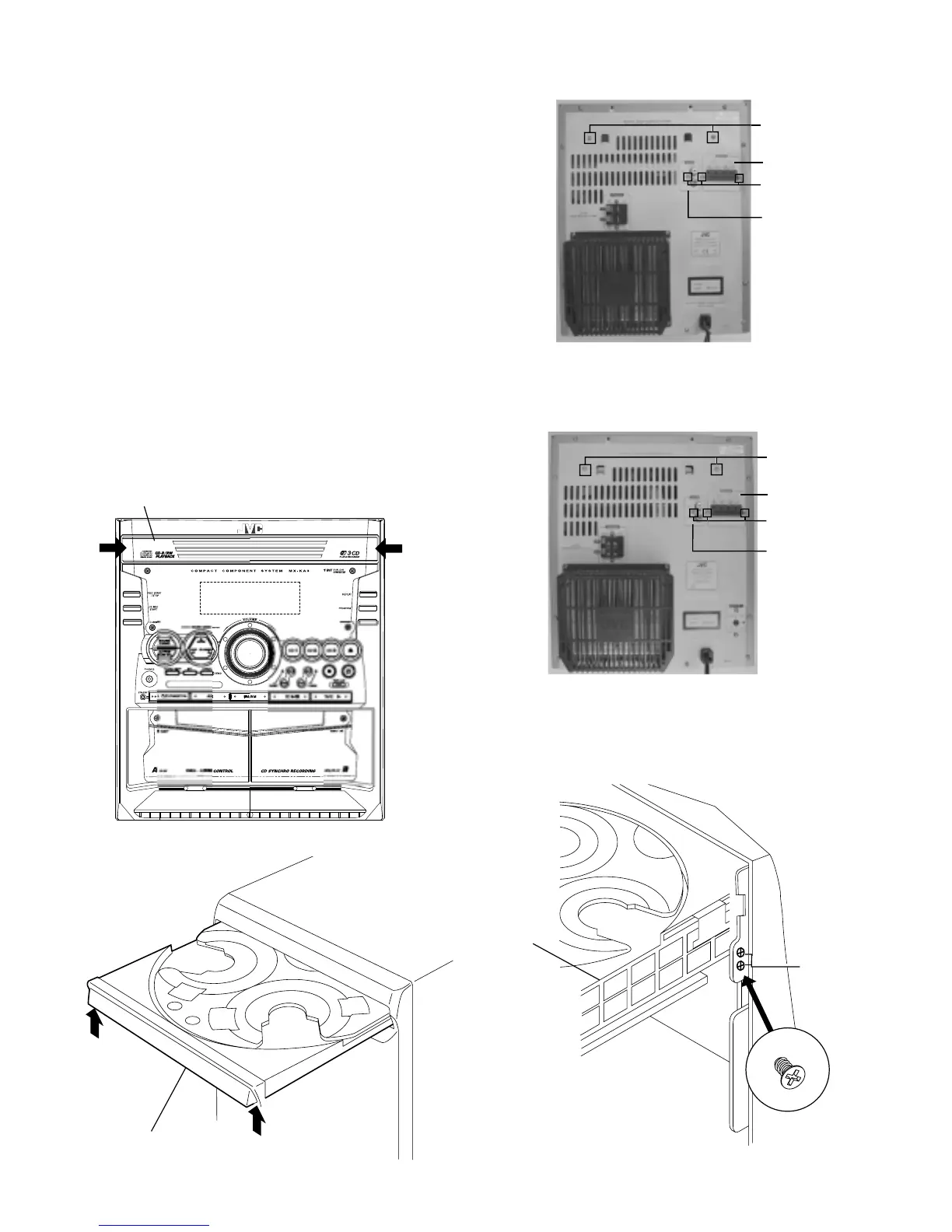

 Removing the CD changer unit
(See Fig.6 to 9)

Prior to performing the following procedures, remove
the top cover.
[Caution] Although the CD mechanism unit can be
removed without removing the CD tray
panel, it is still recommended to remove it
in order to prevent damage.
a. From the front panel side of this set, push in the
sections marked with arrows and pull out the CD
tray toward the front.
b. Remove the CD tray panel by pushing both of its
extremities upward in the direction of the arrows.
c. Push the CD tray deep into the set.
1. Disconnect the cord wires from the CD PCB CN703
and CN203.
2. From the rear of the set, remove two screws E
three screws F and four screws G on the front
panel left and right side.
3. Handle the CD changer unit rear, take out the unit.
Fig.7
CD tray panel
CA-MXKA3U/UJ/UW Fig.8 (B)
F
Aux
terminal
CA-MXKA3A Fig.8 (A)
E
Antenna
termianl
F
Aux
terminal
E
Antenna
termianl

JVC MX-KA3 Specifications

General

Output Power	80 W per channel
Input Sensitivity/Impedance	300 mV/50 kΩ
Frequency Response	63 Hz - 12, 500 Hz
Wow And Flutter	0.15% (WRMS)
CD Capacity	3 CDs
Dynamic Range	85 dB
Signal-To-Noise Ratio	85 dB
FM Tuner Tuning Range	87.5 MHz - 108.0 MHz
AM Tuner Tuning Range	530 kHz - 1, 710 kHz
Dimensions	267 mm x 305 mm x 433 mm
Mass	7.5 kg
Type	3-way bass-reflex type
Woofer	13.5 cm cone
Mid	5 cm cone
Tweeter	2 cm dome
Power Handling Capacity	80 W
Impedance	6 Ω
Frequency Range	45 Hz - 22, 000 Hz
Sound pressure level	89 dB/W.m
Dimensions	228 mm x 316 mm x 258 mm
Mass	3.1 kg
Power Requirements	AC 120 V, 60 Hz
Power Consumption	125 W (power on mode)
Power Consumption in Standby Mode	17 W
