JVC MX-KA3 User Manual

Getting Started
CAUTION:
• Make all connections before plugging the System into an AC power outlet.

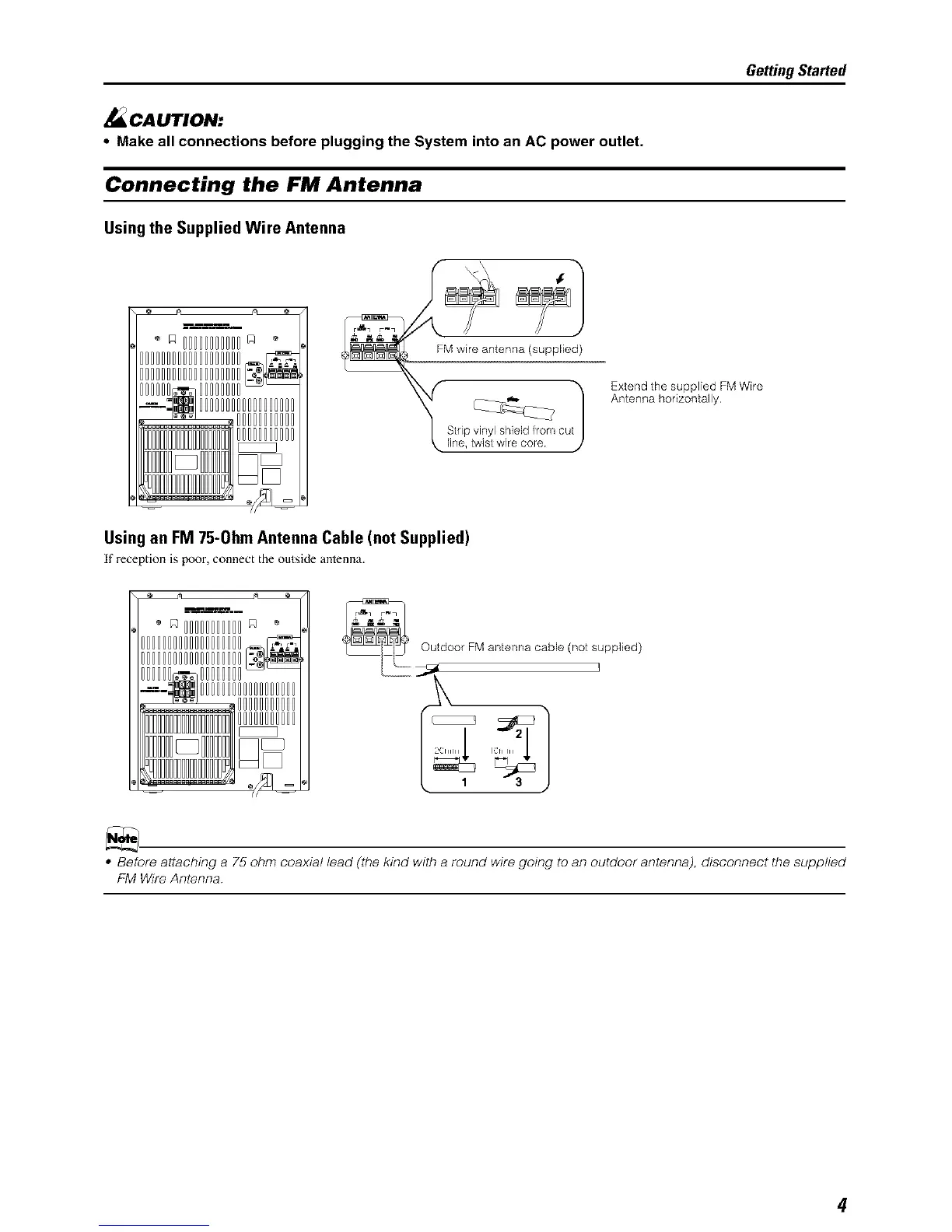

Connecting the FM Antenna
Using the Supplied Wire Antenna
FM wire antenna (supplied)
Strip vinyl slfleld from cut
• line, twist wire core i
Extend the supplied FM Wire
Antenna horizontally
Using an FM 75-0hm Antenna Cable (not Supplied)
If reception is poor, connect the outside antenna.
Outdoor FM antenna cable (not supplied)
_. 1
• Before attaching a 75 ohm coaxial lead (the kind with a round wire going to an outdoor antenna), disconnect the supplied
FM Wire Antenna
4

JVC MX-KA3 Specifications

General

Output Power	80 W per channel
Input Sensitivity/Impedance	300 mV/50 kΩ
Frequency Response	63 Hz - 12, 500 Hz
Wow And Flutter	0.15% (WRMS)
CD Capacity	3 CDs
Dynamic Range	85 dB
Signal-To-Noise Ratio	85 dB
FM Tuner Tuning Range	87.5 MHz - 108.0 MHz
AM Tuner Tuning Range	530 kHz - 1, 710 kHz
Dimensions	267 mm x 305 mm x 433 mm
Mass	7.5 kg
Type	3-way bass-reflex type
Woofer	13.5 cm cone
Mid	5 cm cone
Tweeter	2 cm dome
Power Handling Capacity	80 W
Impedance	6 Ω
Frequency Range	45 Hz - 22, 000 Hz
Sound pressure level	89 dB/W.m
Dimensions	228 mm x 316 mm x 258 mm
Mass	3.1 kg
Power Requirements	AC 120 V, 60 Hz
Power Consumption	125 W (power on mode)
Power Consumption in Standby Mode	17 W
