JVC MX-KB2 User Manual

1-12 (No.MB284)
3.1.5 Removing the tuner board
(See Fig.17, 18)
• Prior to performing the following procedure, remove the top
cover / side cover (R) and (L).
(1) Disconnect the wire from connector CN601 on the tuner
board.
(2) From the back of the body, remove the two screws H, the
two screws J and the two screws K attaching the tuner
board respectively.
(3) Remove the two screws L attaching the tuner board holder.
Caution:
You can remove the tuner board without removing the CD
changer mechanism unit and the rear panel.

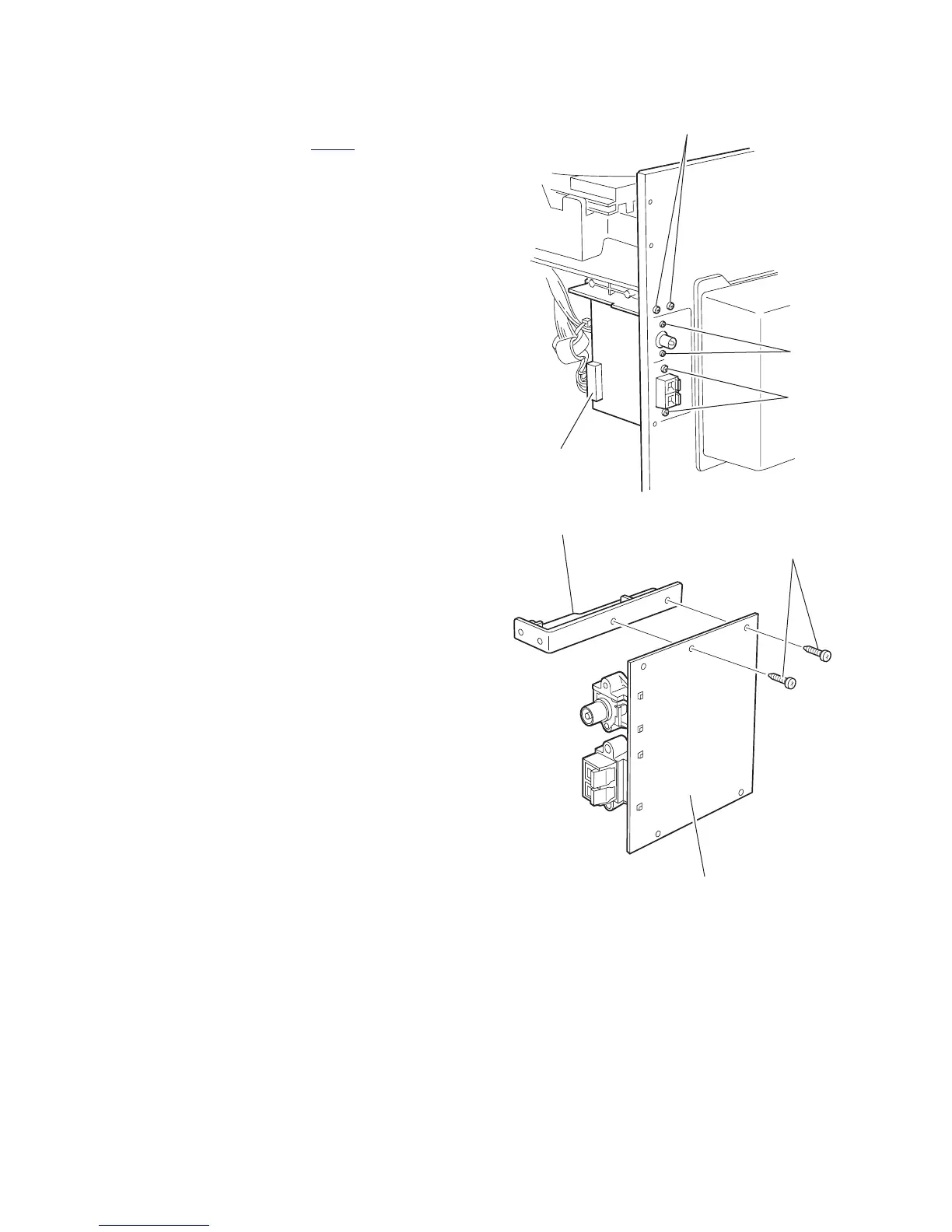

Fig.17
Fig.18
H
K
J
Tuner board
CN601
Tuner board
Tuner board holder
L
