3.1.6 Removing the speaker terminal board

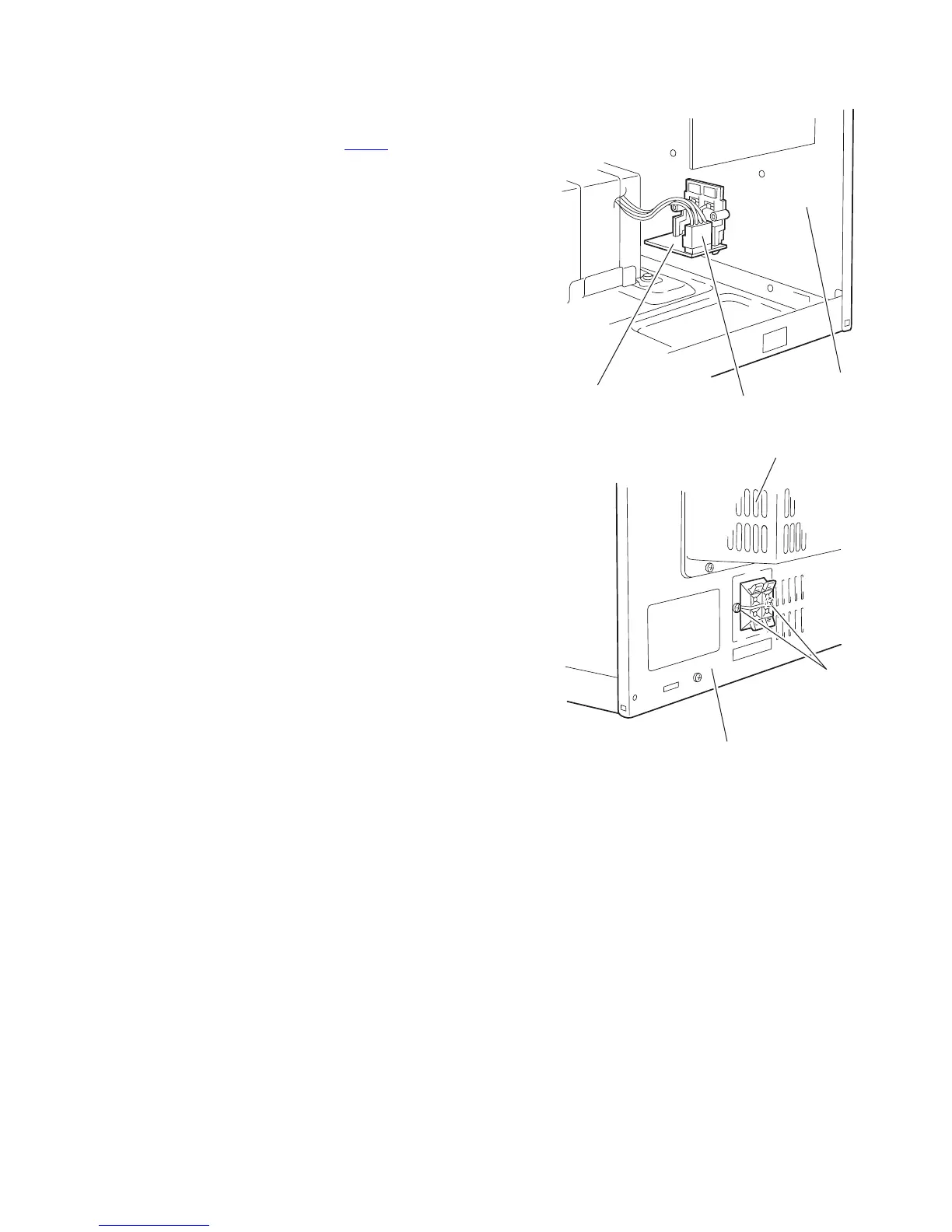

(See Fig.19, 20)
• Prior to performing the following procedure, remove the top
cover / side cover (R) and (L).
(1) Disconnect the wire from connector CN901
on the speaker
terminal board.
(2) From the back of the body, remove the two screws M at-
taching the speaker terminal board.
Reference:
You can remove the speaker terminal board without detaching
the CD changer mechanism unit and the rear panel.
Fig.19
Fig.20
Speaker terminal board
CN901
Rear panel
M
Rear panel
Rear cover
