1-14 (No.MB284)
3.1.7 Removing the front panel assembly
(See Fig.21 to 24)
• Prior to performing the following procedure, remove the top
cover / side cover (R) and (L), the CD fitting / CD changer
mechanism unit.
(1) Disconnect the wire from connector CN861
on the power
board.
(2) Disconnect the earth wire from the base chassis on the bot-
tom of the right side of the body.
(3) From the bottom of the body, remove the two screws N at-
taching the front panel assembly.
(4) Release the two joints f on the side of the body and the joint
g on the bottom using a screwdriver, and remove the front
panel assembly forward.

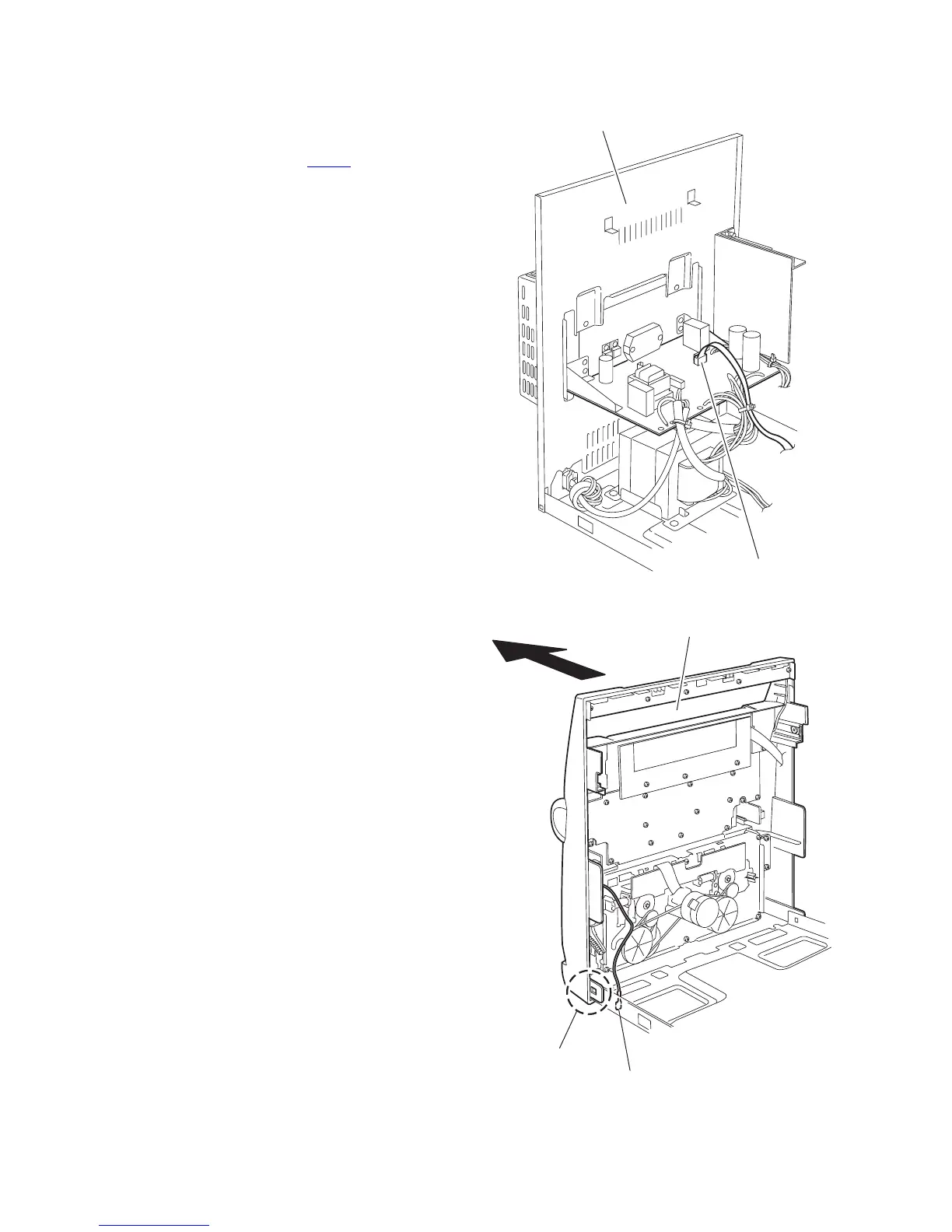

Fig.21
Fig.22
Rear panel
Power board
CN861
Earth wire
f
Front panel assembly
To Next Page
