(No.MB284)1-21

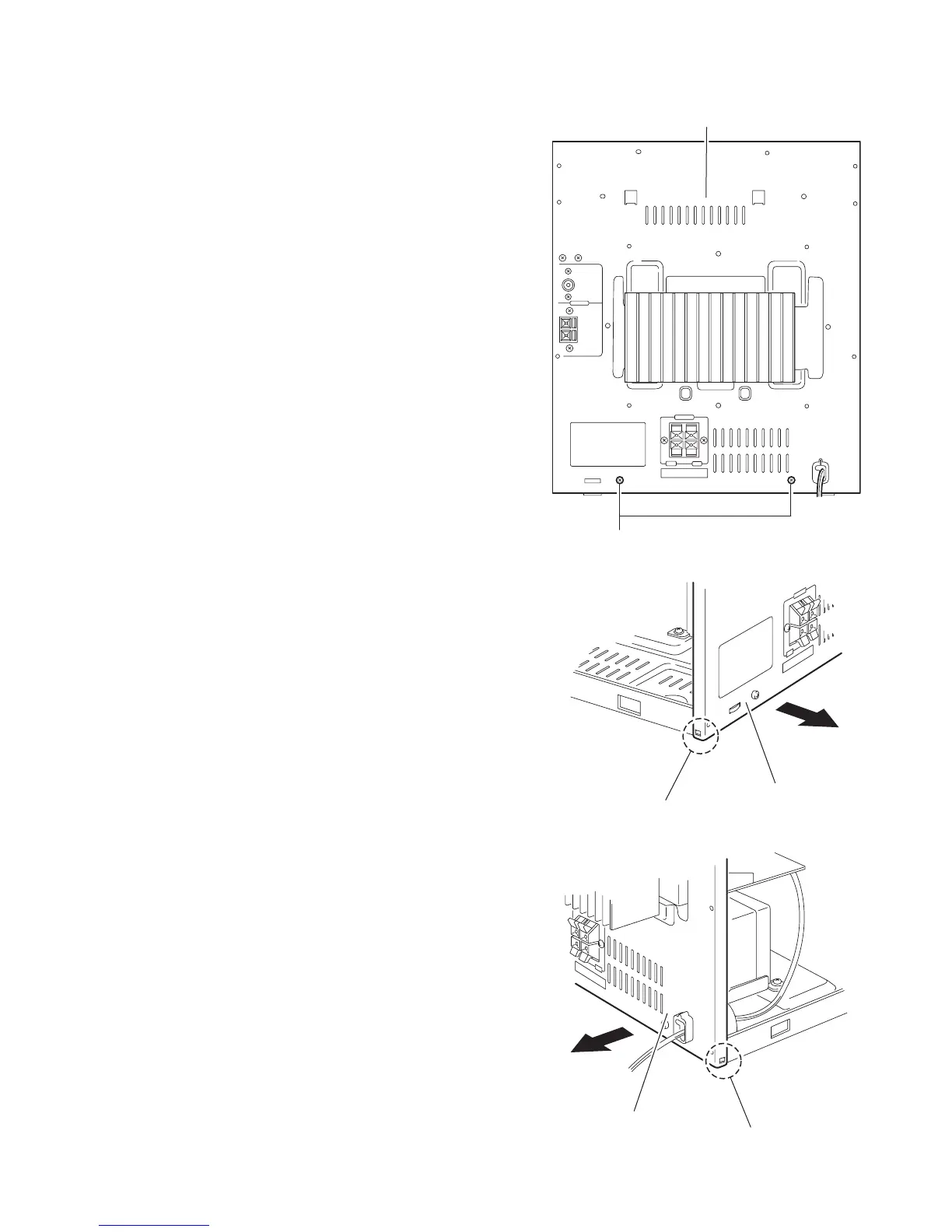

3.1.13 Removing the rear cover / rear panel
(See Fig.36 to 38)
• Prior to performing the following procedure, remove the top
cover / side cover (R) and (L), the CD fitting / CD changer
mechanism unit.
(1) From the back of the body, remove the four screws H’ at-
taching the rear cover.
(2) From the back of the body, remove the two screws J’ at-
taching the rear panel.
(3) Release the two joints h on the bottom of the right and left
sides of the rear panel, and remove the rear panel. The
rear panel comes off with the power board and the heat
sink.
Fig.36
Fig.37
Fig.38
Rear panel
J'
h
Rear panel
Raer panel
h
To Next Page
