3.1.15 Removing the power transformer assembly
(See Fig.43)
• Prior to performing the following procedure, remove the top
cover / side cover (R) and (L), the CD fitting / CD changer
mechanism unit and the rear cover / rear panel.
(1) Move the cord stopper in the direction of the arrow and dis-
connect the power cord.
(2) Remove the four screws R’ attaching the power transform-
er assembly.
If necessary, unsolder each wire.

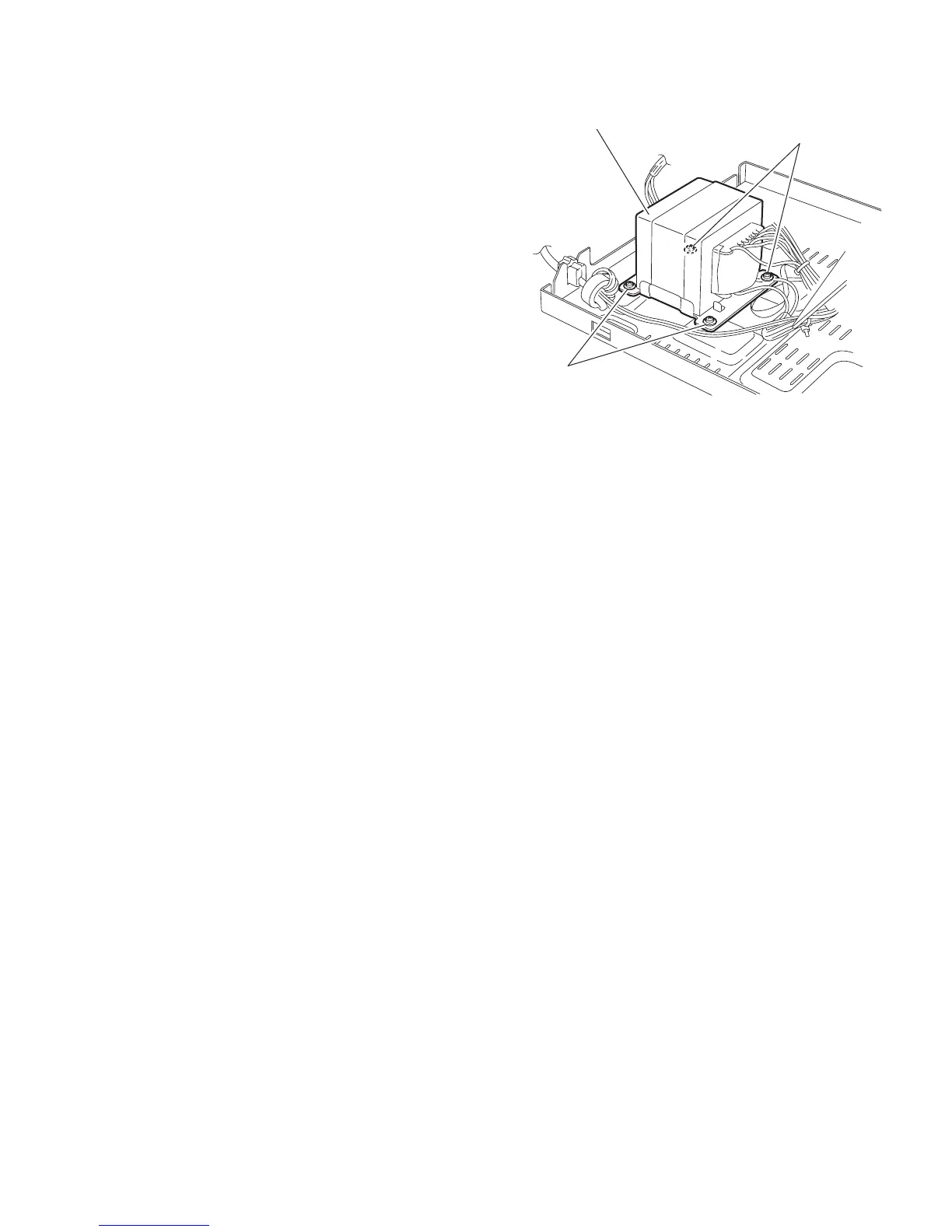

Fig.43
Power transformer
R'
R'
To Next Page
