3.1.2 Removing the CD fitting
(See Fig.7 to 9)
• Prior to performing the following procedure, remove the top
cover / side cover (R) and (L).
Caution:
For preventing from damage, make sure to remove the CD fit-
ting before detaching the CD changer mechanism unit.
(1) Push STANDBY / ON key to turn power on.
(2) Push CD TRAY EJECT key.
(3) Move the CD fitting in the direction of the arrow to release
from the CD tray at two joints d.
(4) Push STANDBY / ON key to close the tray.
3.1.3 Removing the CD fitting
(See Fig.8 to 10)
< How to eject the CD tray without turning power on >
• Prior to performing the following procedure, remove the top
cover / side cover(R) and (L).
(1) Turn over the CD changer mechanism unit and turn the
loading pulley gear at e in the inner part of the notch of the
main board to move the CD tray forward.
(2) Move the CD fitting in the direction of the arrow to release
from the CD tray at two joint d.
(3) Manually push and close the CD tray.

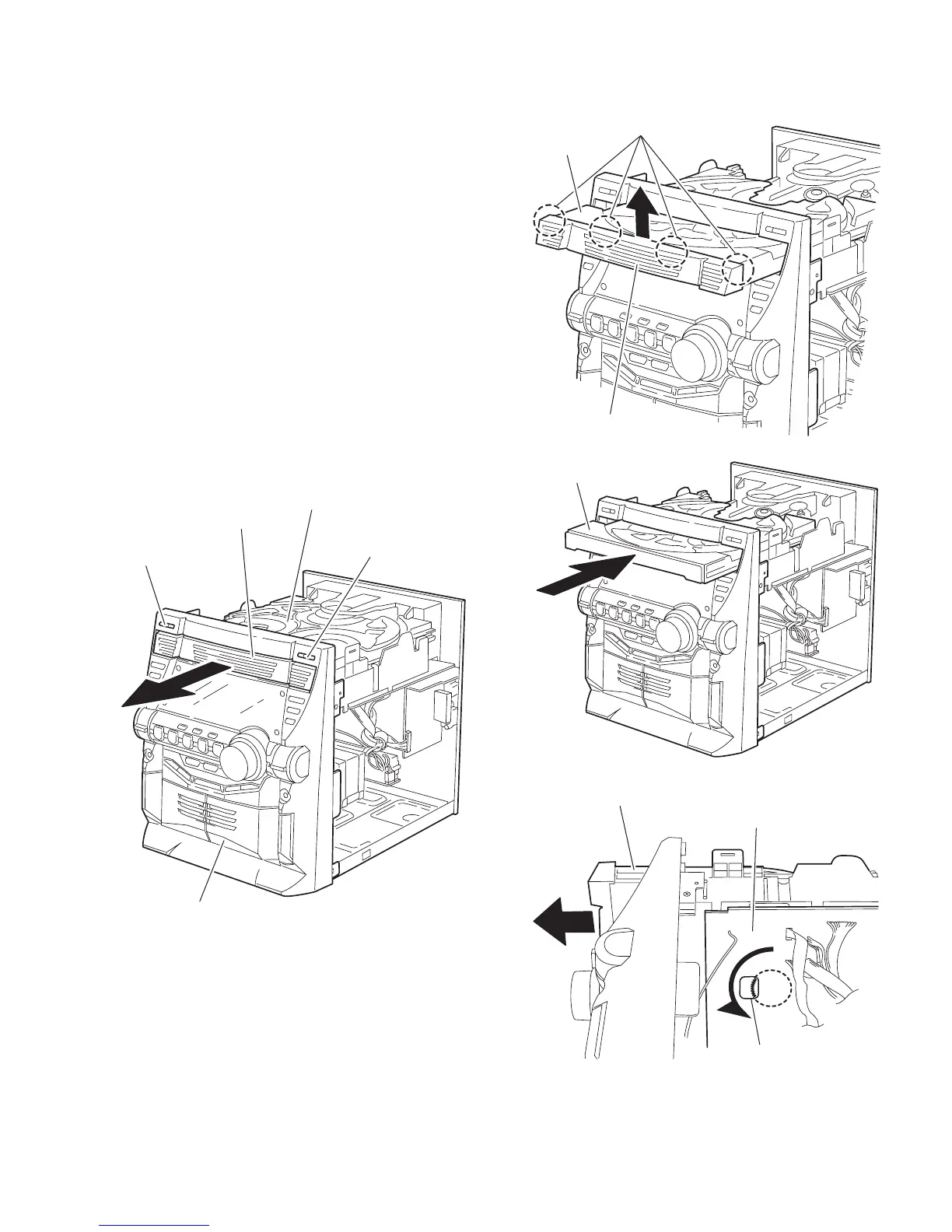

Fig.7
Fig.8
Fig.9
Fig.10
CD TRAY EJECT
STANDBY / ON
CD fitting
CD changer mechanism unit
Front panel assembly
d
CD fitting
CD tray
CD tray
e
Main board
CD changer mechanism
Loading pullygear
