(No.MB350)1-15

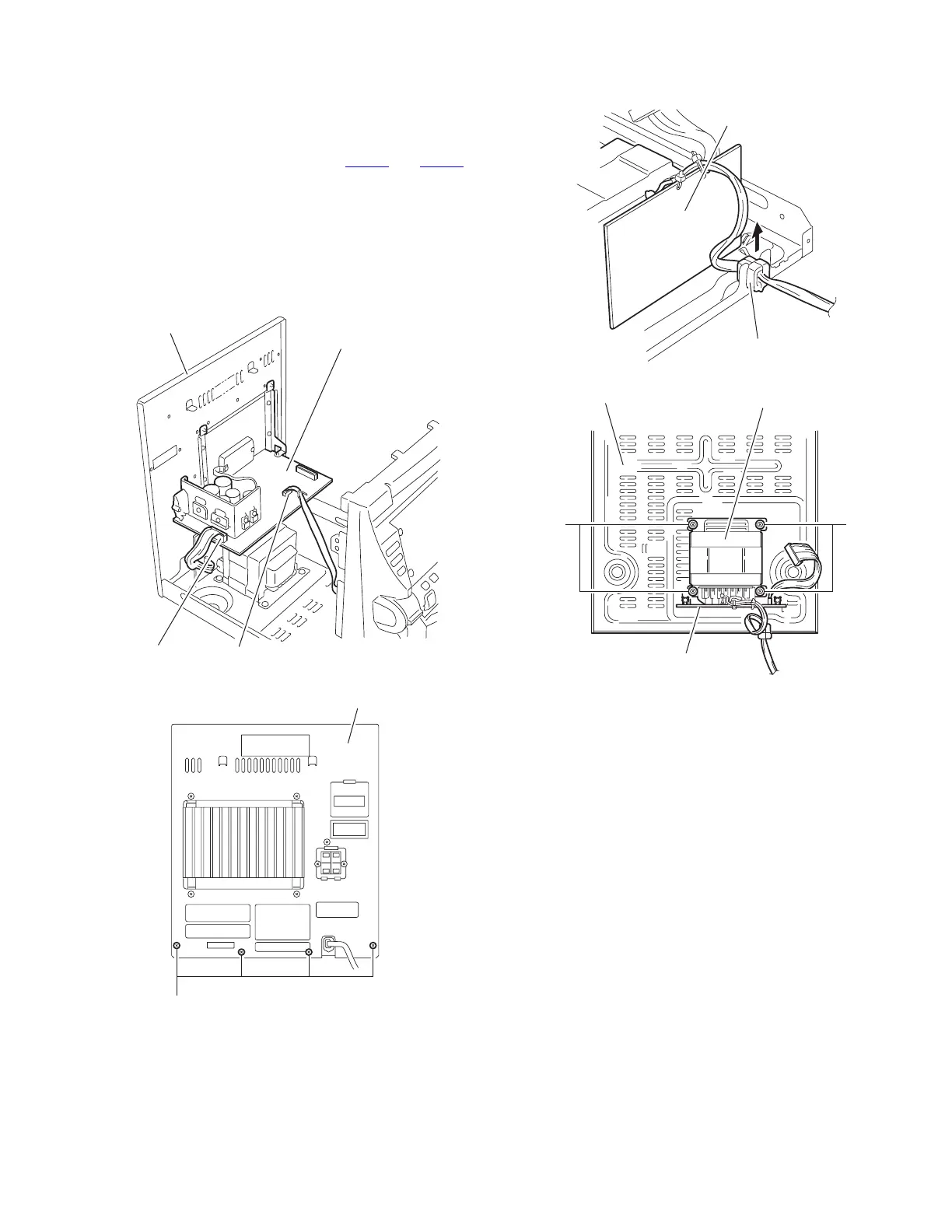

3.1.6 Removing the transformer board
(See Fig.20 to 23)
• Prior to performing the following procedure, remove the metal
cover/ rear cover, the CD fitting and the CD changer mecha-
nism unit.
(1) Disconnect the wire from connector CN903
and CN202 on
the power board.
(2) From the back of the body, remove the four screws L at-
taching the rear panel.
(3) Remove the cord clamp in the direction of the arrow.
(4) From the base chassis, remove the four screws M attach-
ing the transformer.
(5) If necessary, unsolder the power cord and the wire extend-
ing from the power transformer assembly.
Fig.20
Fig.21
Fig.22
Fig.23
CN903
CN202
Rear panel
Power board
L
Rear panel
Transformer board
Cord clamp
Base chassis
MM
Transformer
Transformer board
To Next Page
