JVC MX-KC4 Service Manual

(No.MB350)1-17

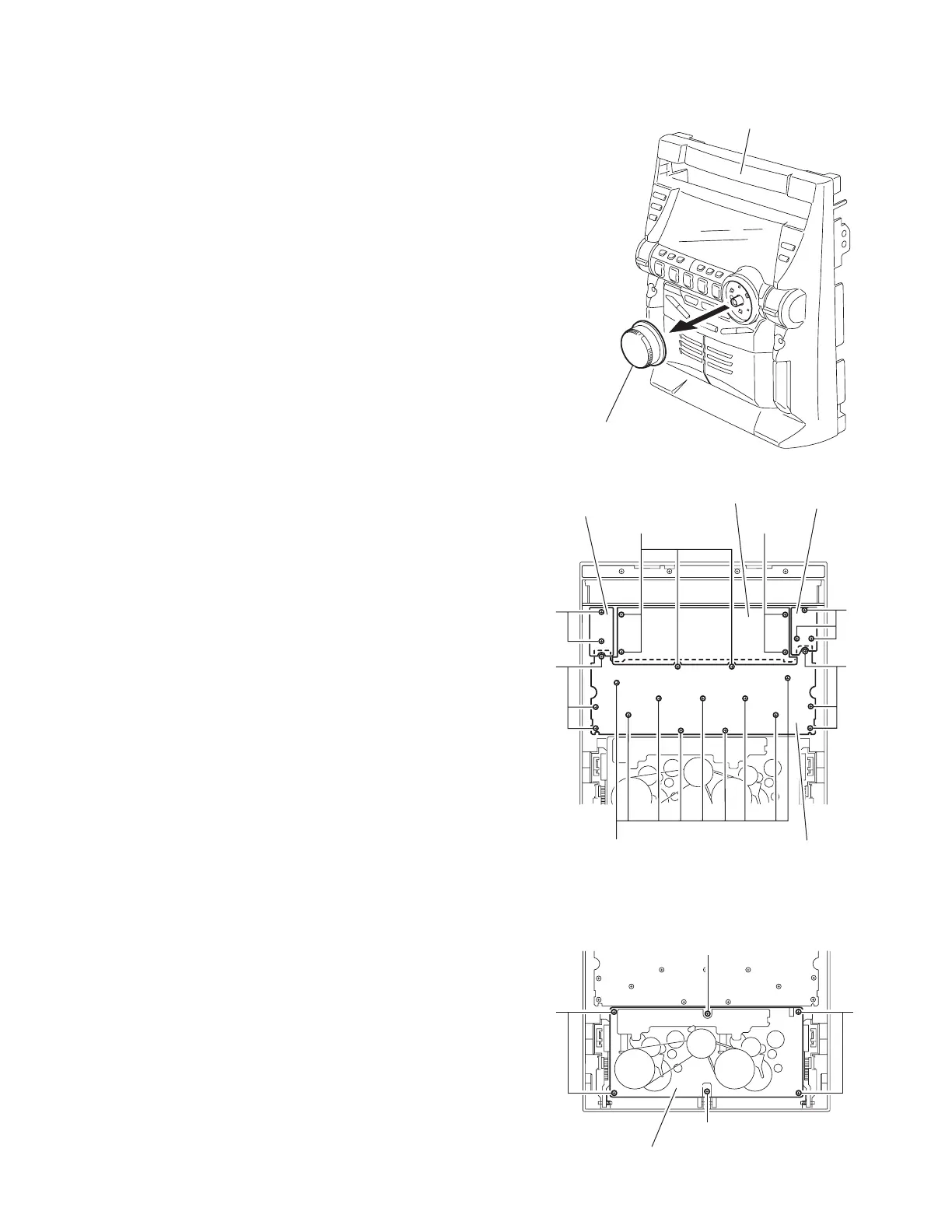

3.1.8 Removing the LCD board, CD tray eject switch board, REC select switch board and Operation board
(See Fig.28 , 29)
• Prior to performing the following procedure, remove the front
panel assembly.
(1) Pull out the volume knob on the front panel assembly.
(2) Remove the twenty-six screws Q attaching the LCD board,
CD tray eject switch board, REC select switch board and
Operation board.
Fig.28
Fig.29
3.1.9 Removing the cassette mechanism assembly
(See Fig.30)
• Prior to performing the following procedure, remove the front
panel assembly.
(1) Remove the six screws R attaching the cassette mecha-
nism assembly.
Fig.30
Volume knob
Front panel assembly
Q
Q
Q
Q
Q
Q
Q
CD tray eject
switch board
LCD board
REC select
switch board
Operation board
R
R
Cassette mechanism assembly
RR
