JVC MX-KC45E - Disassembly Procedures; Main Unit Disassembly

1-6 (No.MB550)
SECTION 3
DISASSEMBLY
3.1 Main Body
3.1.1 Removing the metal cover
(See Fig.1, 2)
(1) Remove the two screws A and four screws B attaching the
metal cover from both side of the main body. (See Fig.1)
(2) Remove the six screws C attaching the metal cover from
back side of main body. (See Fig.2)
3.1.2 Removing the heat sink cover
(See Fig.2, 3)
(1) Disconnect the connector wire from the fan connected to
connector CN603
of the amp board. (See Fig.3)
(2) Remove the four screws D attaching the heat sink cover.
(See Fig.2)
3.1.3 Removing the fan
(See Fig.2)
(1) Remove the four screws E attaching the fan.

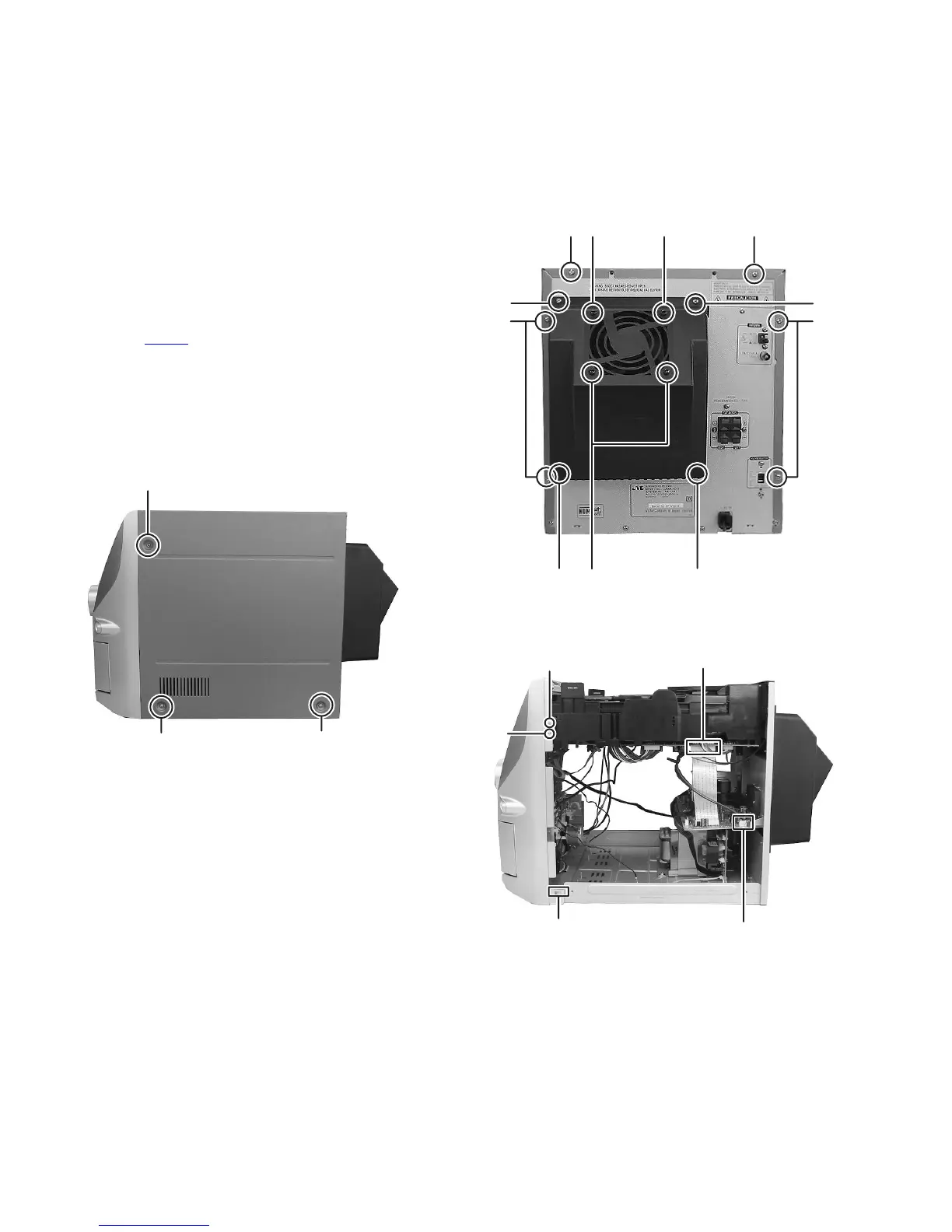

Fig.1
Fig.2
Fig.3
A
BB
(both side)
CE E C
CC
DD
DDE
CN601
CN603
a
