(No.MB550)1-7

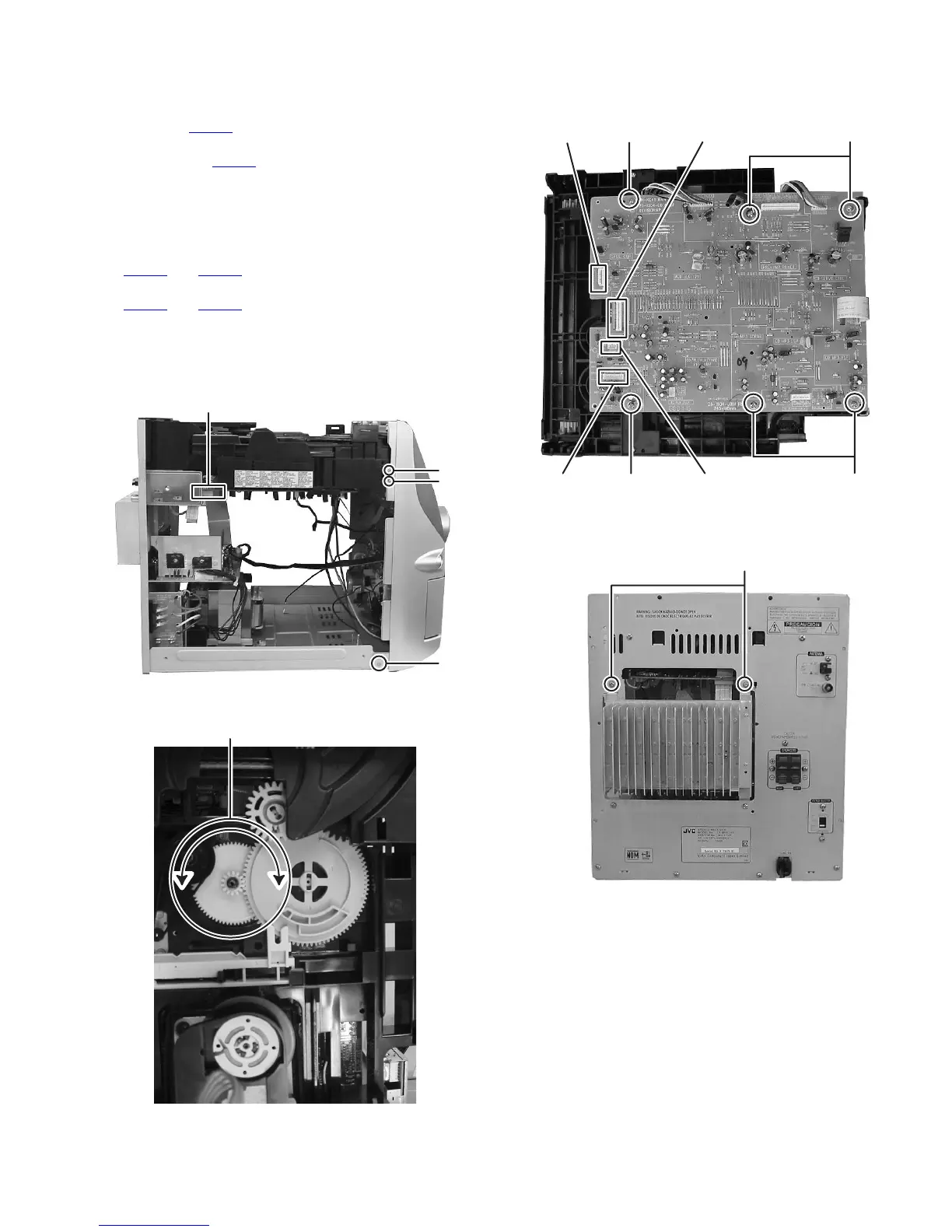

3.1.4 Removing the 3CD changer mechanism
(See Fig.3 to 7)
(1) Disconnect the card wire from amp board connected to the
connector CN601
of the main board. (See Fig.3)
(2) Disconnect the card wire from the tuner pack connected to
the connector CN306
of the main board. (See Fig.4)
(3) Open the CD tray and remove the CD door.
Caution:
If the CD tray can not open at power to ON condition, ro-
tate the gear and open the CD tray. (See Fig.5)
(4) Disconnect the card wire connected to the connector
CN201
and CN303 of the main board. (See Fig.6)
(5) Disconnect the connector wire connected to the connector
CN301
and CN302 of the main board. (See Fig.6)
(6) Remove the two screws F attaching the 3CD changer
mechanism of back side of the main body. (See Fig.7)
(7) Remove the four screws G attaching the 3CD changer
mechanism from both side of the main body. (See Fig.3, 4)
Fig.4
Fig.5
Fig.6
Fig.7
CN306
Q
G
GEAR (top view)
CN303
CN302 CN301
CN201
HH
HH
F
To Next Page
