3.1.11 Removing the cassette mechanism assembly
(See Fig.14)
(1) Remove the six screws R attaching the cassette mecha-
nism assembly.
3.1.12 Removing the front board
(See Fig.14, 15)
(1) Remove the seven screws S attaching the front board.
(See Fig.14)
(2) Disconnect the connector wire from the connector CN201
of the front board. (See Fig.14)
(3) Remove the main volume knob.
(4) Remove the eighteen screws T attaching the front board.
(See Fig.15)
(5) Remove the one screws U attaching the front board. (See
Fig.15)

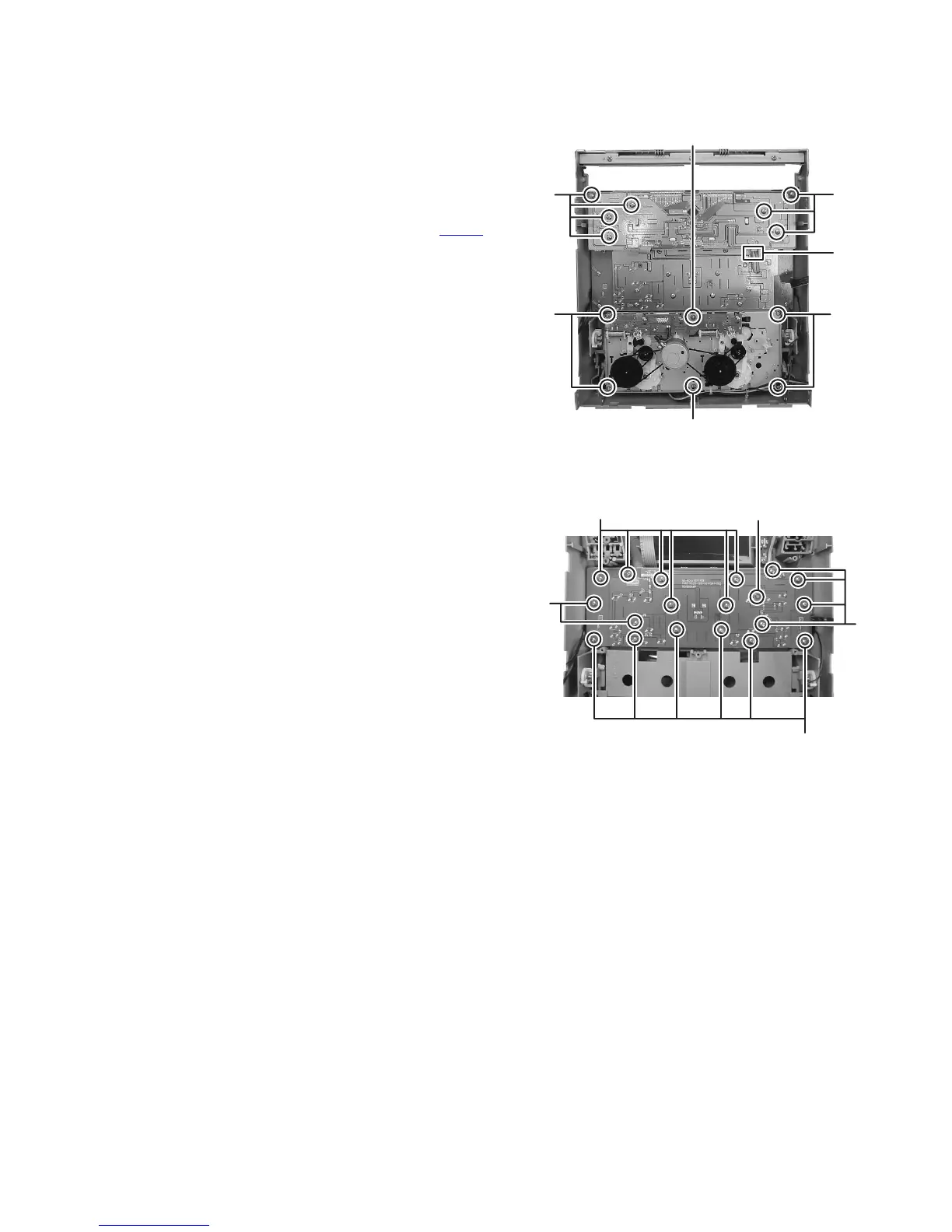

Fig.14
Fig.15
RR
R
R
SS
CN201
U
T
T
T
T
