JVC MX-KC45E User Manual

1-10 (No.MB550)
3.1.10 Removing the front panel assembly
(See Fig.3, 4, 12, 13)
(1) Disconnect the two earth wires from the bottom plate. (See
Fig.12)
(2) Remove the one screw P attaching the front panel assem-
bly from bottom side. (See Fig.13)
(3) Remove the two screws Q attaching the front panel assem-
bly from both side of the main body. (See Fig.4)
(4) Disengage the hook a on the both side of the front panel
assembly. (See Fig.3)

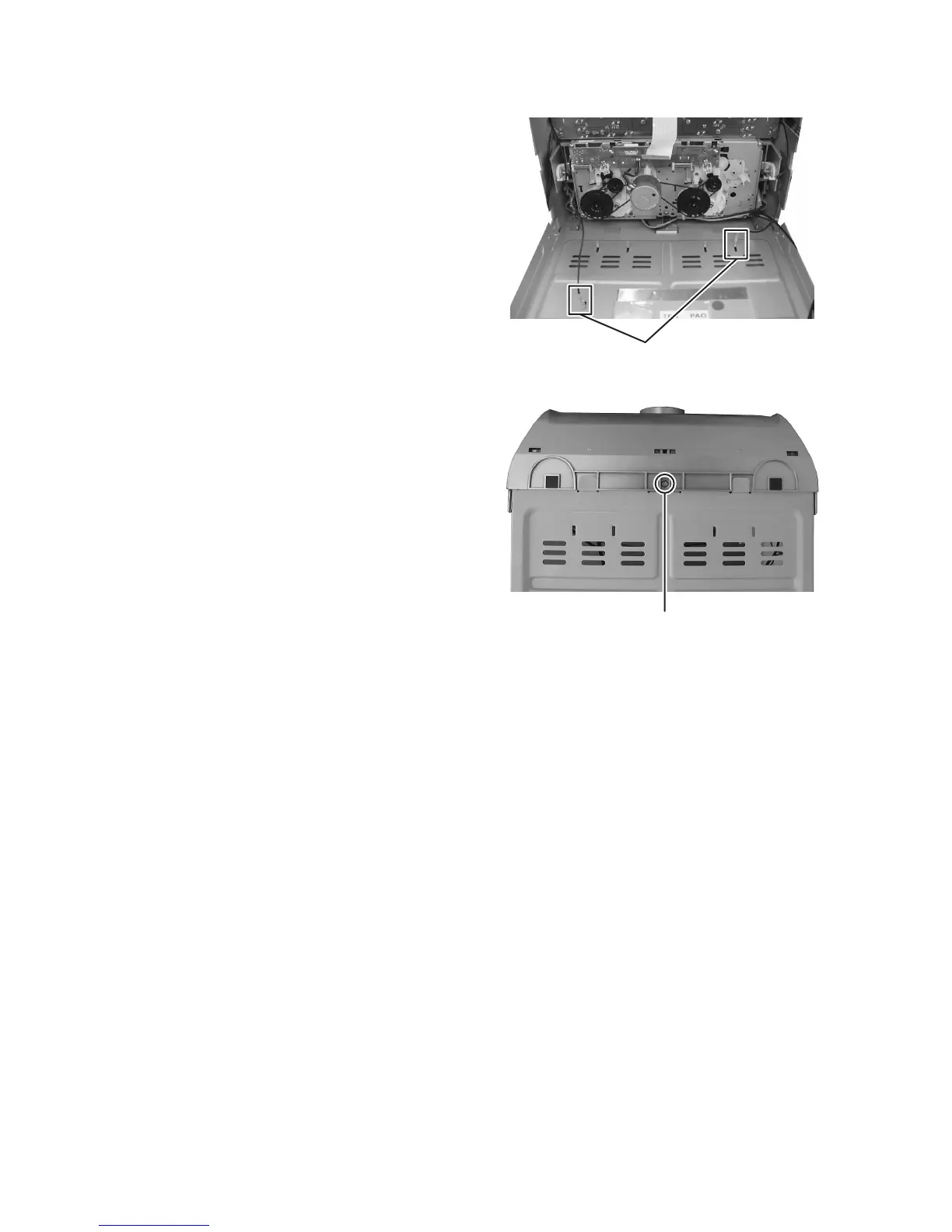

Fig.12
Fig.13
earth wire
P
