1-12 (No.MB664<Rev.002>)

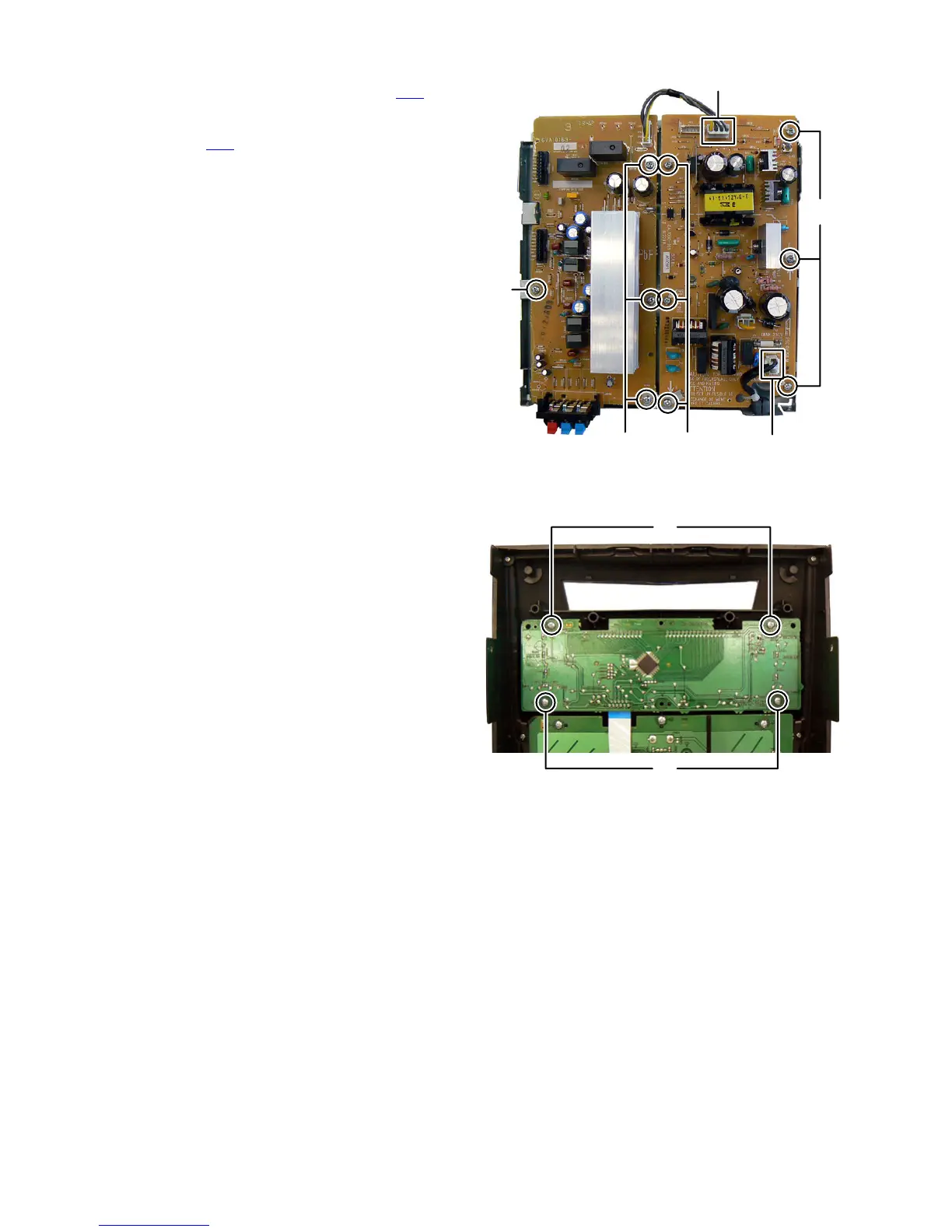

3.1.8 Removing the Power supply unit (See Fig.16)
(1) Disconnect the Power cord connected to connector CN1 of
the Power supply unit.
(2) Disconnect the connector wire from Power amp board con-
nected to connector CN2
of the Power supply unit.
(3) Remove the six screws K attaching the Power supply unit.
3.1.9 Removing the Power amp board (See Fig.16)
(1) Remove the four screws L attaching the Power amp board.
Fig.16
3.1.10 Removing the FL board (See Fig.17)
(1) Remove the four screws M attaching the FL board.
Fig.17
CN1
CN2
K
KL
L
M
M
