1-12 (No.MB711<Rev.002>)

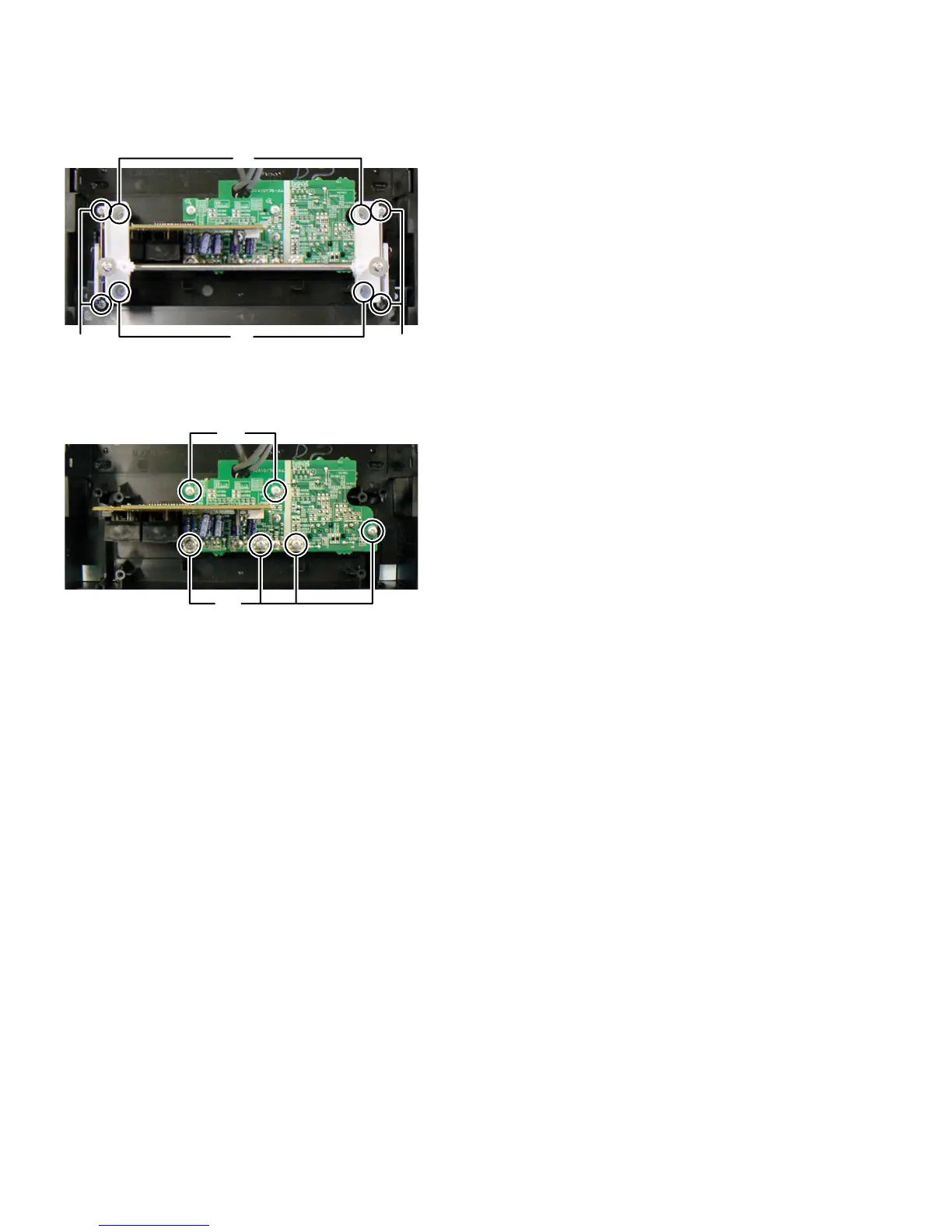

(2) Remove the four screws U attaching the Slider arm.
(See Fig.20)
(3) Remove the four screws V attaching the Shaft holder.
(See Fig.20)
Fig.20
(4) Remove the six screws W attaching the Mic board and
USB board. (See Fig.21)
Fig.21
UU
V
V
W
W
