1-16 (No.MB711<Rev.002>)
3.2.5 Removing the tray assembly
(See Fig.12 & 13)
(1) Remove the two screws H attaching the clamper base.
(See Fig.12)
(2) Remove the one screw J attaching the shaft guide from
bottom side. (See Fig.12)
(3) Remove the two screws K attaching the shaft guide from
top side. (See Fig.13)
Caution:
When attach the tray assembly, boss of loading sub assembly
should attach to guide of bottom side at tray assembly. (See
Fig.13)

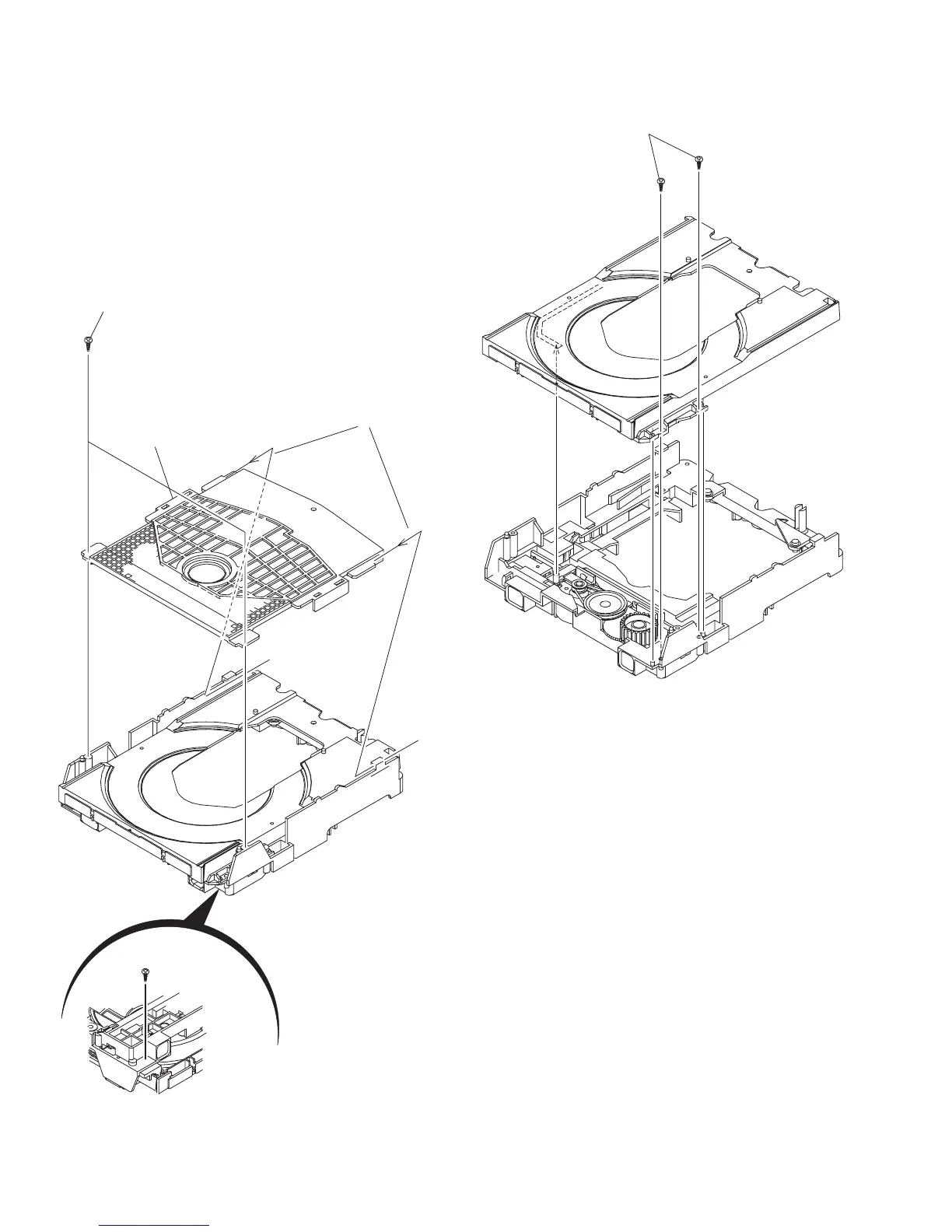

Fig.12
Fig.13
H
order 1
order 2
clamper base
J
[bottom side]
K
