(3) Remove the two screws D attaching the Main board.
(See Fig.5)
(4) Remove the one screw E attaching the DVD board.
(See Fig.5)
(5) Remove the two screws F attaching the Mecha chassis.
(See Fig.5)
(6) Remove the two screws G attaching the Amp board.
(See Fig.5)
(7) Remove the two screws H attaching the Voltage selector
board. (See Fig.5)

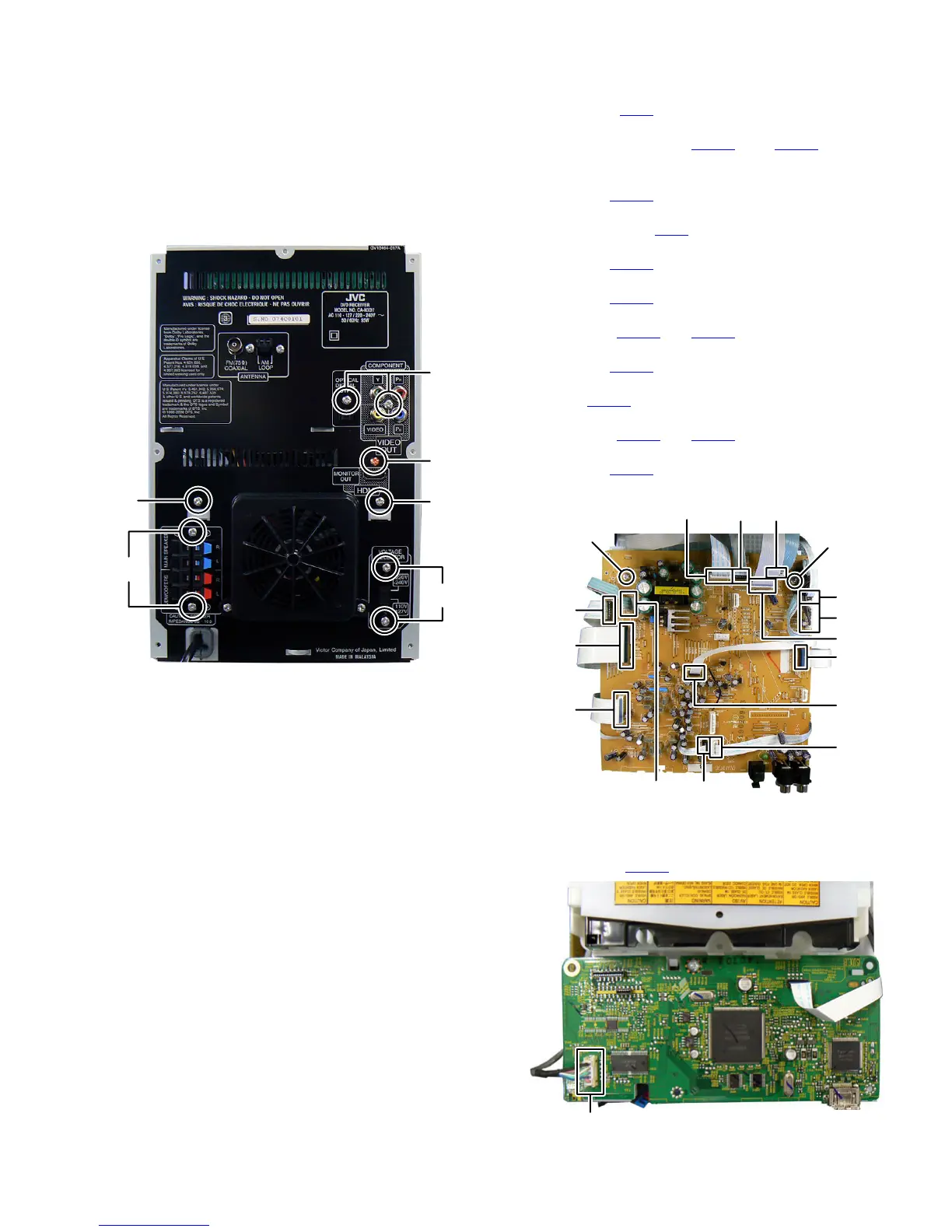

Fig.5
3.1.3 Removing the Main board (See Fig.6)
(1) Disconnect t the card wire from USB board connected to
connector CN502
of the Main board.
(2) Disconnect the card wires from Ripping module board con-
nected to connectors CN305
and CN501 of the Main
board.
(3) Disconnect the card wire from Loader board connected to
connector CN307
of the Main board.
(4) Disconnect the connector wire from Power board connect-
ed to connector CN180 of the Main board.
(5) Disconnect the card wire from DVD board connected to
connector CN500
of the Main board.
(6) Disconnect the card wire from Amp board connected to
connector CN503
of the Main board.
(7) Disconnect the card wires from DVD board connected to
connectors CN310 and CN308 of the Main board.
(8) Disconnect the parallel wire from Amp board connected to
connector CN181
of the Main board.
(9) Disconnect the card wire from Mic board connected to con-
nector CN304
of the Main board.
(10) Disconnect the card wires from Front panel connected to
connectors CN301 and CN312 of the Main board.
(11) Disconnect the parallel wire from Front panel connected to
connector CN315 of the Main board.
(12) Remove the two screws J attaching the Main board.
Fig.6
3.1.4 Removing the DVD mechanism (See Fig.7, 8)
(1) Disconnect the connector wire from USB board connected
to connector CN811
of the DVD board. (See Fig.7)
Fig.7
D
E
F
H
F
G
CN502
CN500
CN503
CN310
CN308
CN181
CN304
CN305
CN307
CN301 CN315
CN180
CN312
CN501
J
J
CN811
