3.2.3 Removing the feed motor assembly

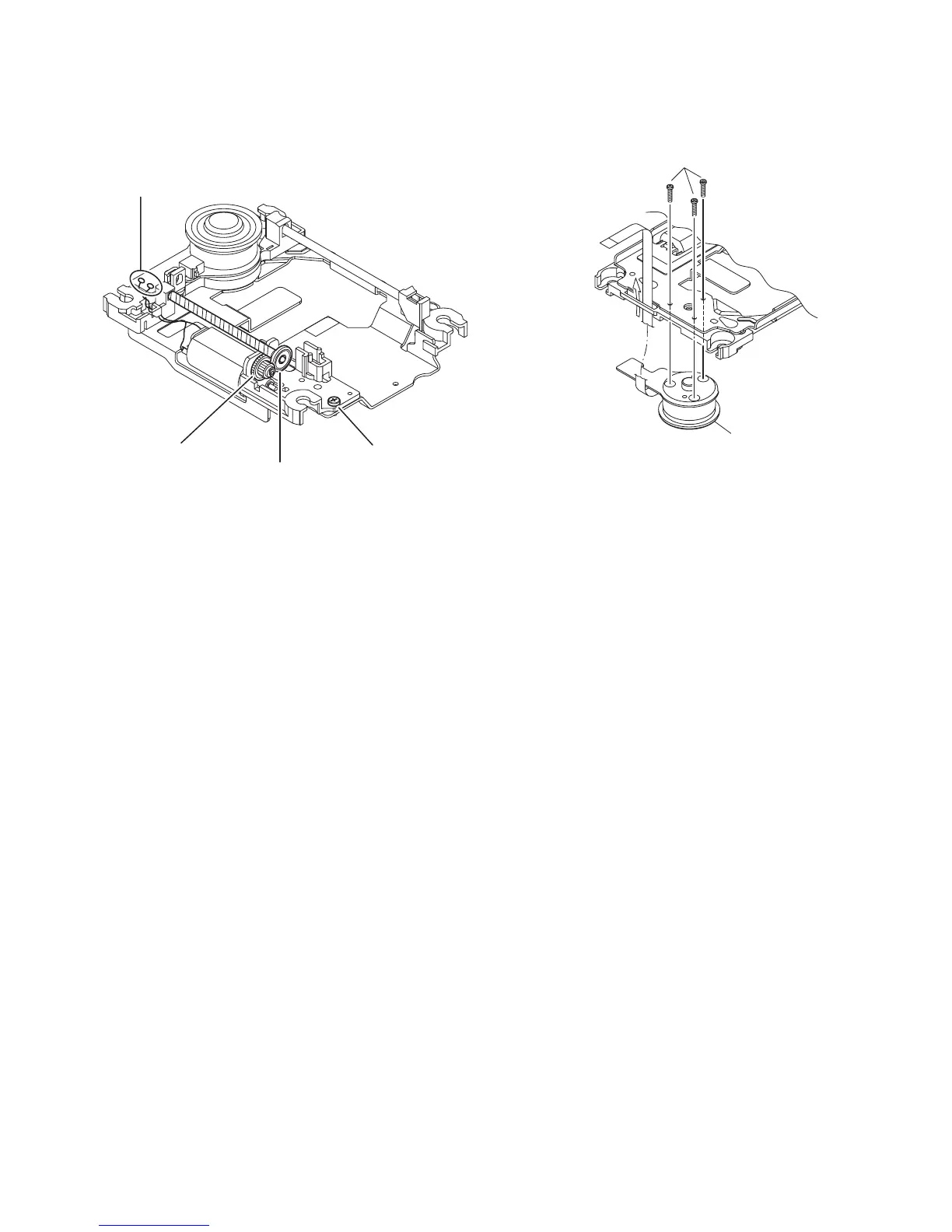

(See Fig.10)
(1) Remove the one screw F attaching the feed motor assem-
bly.
(2) Remove the feed motor wires from solder part of spindle
motor board.
Fig.10
3.2.4 Removing the spindle motor assembly
(See Fig.11)
(1) Remove the three screws G attaching the spindle motor
from spindle motor board.
Fig.11
Lead screw
Middle gear
Solder part
F
Spindle motor
G
