Home
JVC
Stereo System
NX-D7UX
JVC NX-D7UX User Manual
5
of 1
of 1 rating
55 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
P1G
T1G
11
1
MIC DAT
MIC FLG
MIC CLK
MIC CAL
MIC DET
A5V
RECR
AGND
RECL
MIC SIG
A9V
GVA10176-A5
J8000
C8040
C8039
D8004
D8003
W8000
D8002
D8000
J8001
K8003
CN800
C8000
R8030
R8006
C8007
C8003
K8002
C8038
C8037
C8012
D8001
C8023
C8006
C8011
C8002
C8001
C8005
C8036
C8035
R8002
R8001
R8007
IC800
R8005
C8004
R8000
R8003
R8004
C8020
K8000
C8033
C8029
C8028
C8027
C8026
C8018
C8019
C8013
C8016
R8024
R8023
C8032
IC801
R8022
R8020
C8024
C8025
C8021
R8021
C8034
R8016
R8017
R8015
R8014
R8025
C8014
R8013
R8012
R8009
R8008
R8010
R8011
R8019
R8018
C8030
C8031
C8008
C8009
C8010
K8001
C8017
C8015

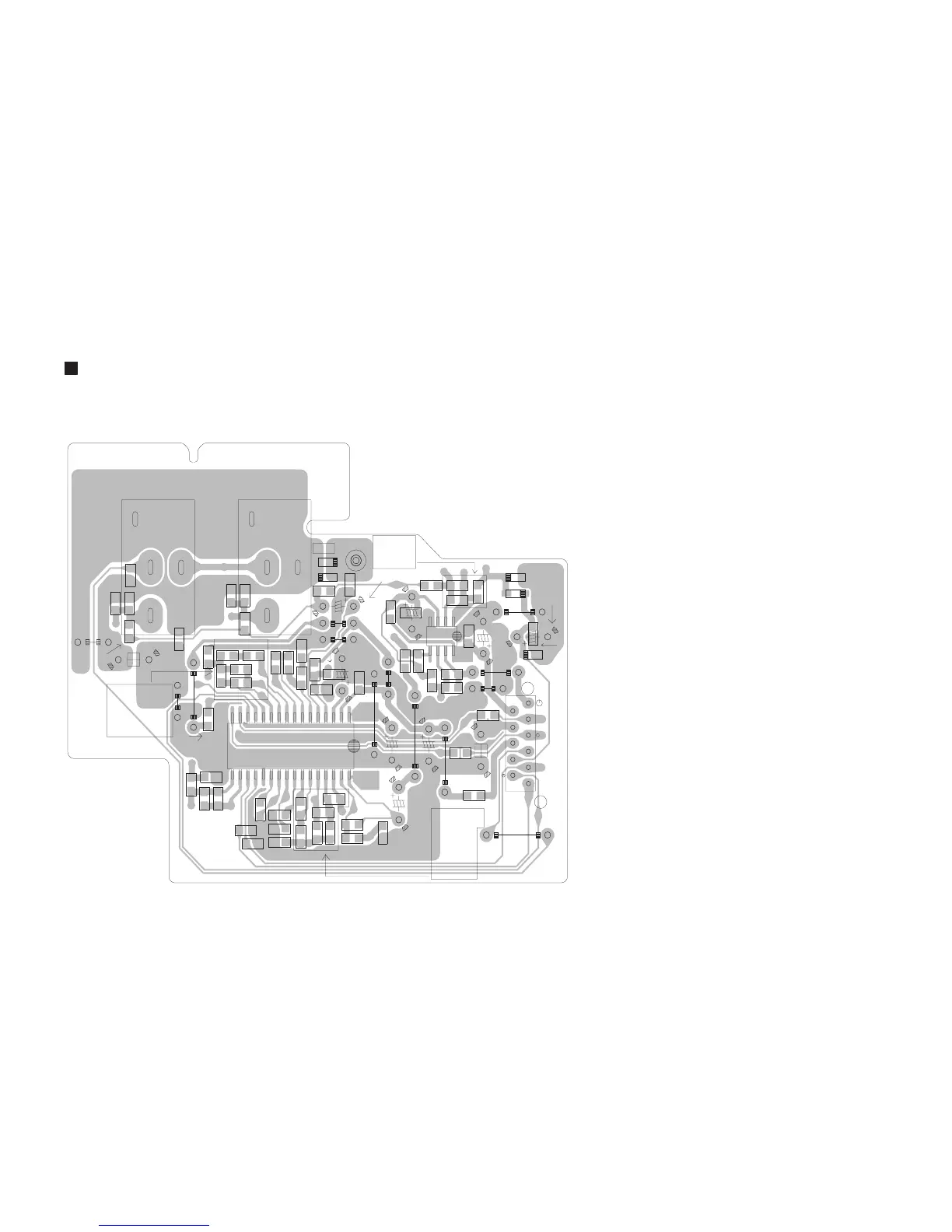

Mic board
(Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade))
(Lead free solder used in the board (material : Sn-Cu, melting point : 230 Centigrade))
created date:2009-09-08
No.MB711
(No.MB711<Rev.002>)24/
35
43
45
Table of Contents
Table of Contents
1
Specification
2
Safety Precautions
4
Critical Parts for Safety
4
Leakage Shock Hazard Testing
4
Preventing Static Electricity
5
Handling the Traverse Unit (Optical Pickup)
5
Attention When Traverse Unit Is Decomposed
5
Important for Laser Products
6
Specific Service Instructions
7
Removing the Rear Panel
8
Disassembly
8
Removing the Main Board
9
Removing the DVD Mechanism
9
Removing the Front Panel
10
Removing the Amp Board
10
Removing the Voltage Selector Board
10
Removing the Power Board
11
Removing the FL Board
11
Removing the Touch Sensor Board
11
Removing the MIC Board and USB Board
11
No.mb711<Rev
13
Removing the Traverse Mechanism
13
DVD Mechanism
13
Removing the Pickup Assembly
14
Removing the Feed Motor Assembly
15
Removing the Spindle Motor Assembly
15
Removing the Tray Assembly
16
No.mb711<Rev
16
Attention in Service of DVD Section
17
Test Mode
17
DVD Check Modes
17
Adjustment
17
No.mb711<Rev.002>)1
18
Troubleshooting
18
Schematic Diagrams
21
Block Diagram
23
Display Section
28
DVD Section
36
PCB Views
40
Main Board
40
Power Amp Board
41
Display Board
42
Jack Board
43
Sensor Board
46
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the JVC NX-D7UX and is the answer not in the manual?
