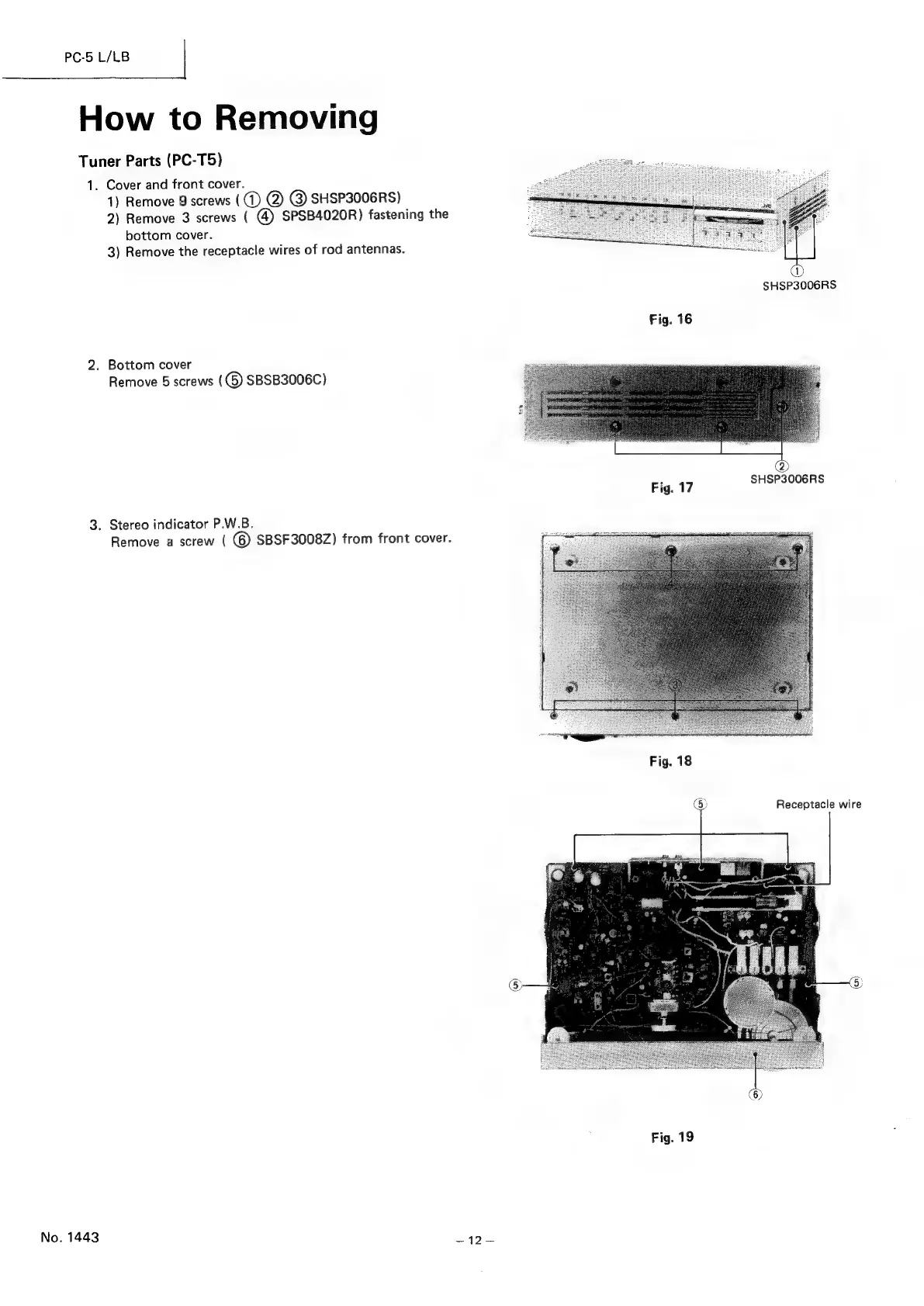

Pc-5 L/LB
How
to
Removing
Tuner Parts (PC-T5)
1. Cover and front cover.
1)
Remove
9
screws
(
(1)
(2)
@)
SHSP3006RS)
2)
Remove
3
screws
(
@)
SPSB4020R)
fastening
the
bottom cover.
3)
Remove
the
receptacle
wires
of
rod
antennas.
SHSP3006RS
Fig. 16
2. Bottom cover
Remove 5 screws ((S) SBSB3006C)
2
Fig. 17 SHSP3006RS
3. Stereo indicator P.W.B.
Remove
a
screw
(
©
SBSF3008Z)
from
front
cover.
®& Receptacle wire
Fig. 19
No.
1443
Aeigek
