PC-5 L/LB

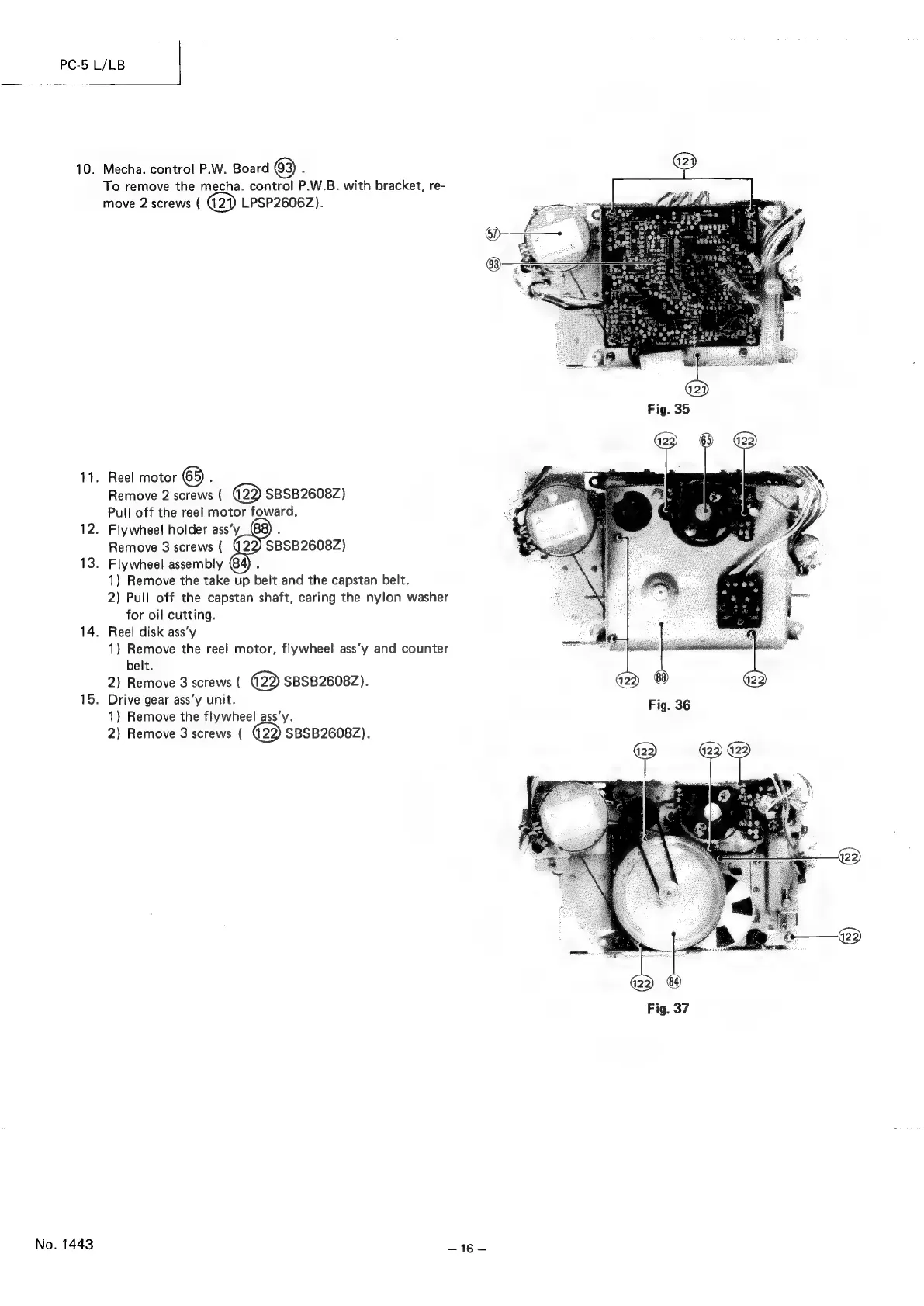

10. Mecha. control P.W. Board @3 .
To remove the mecha. control P.W.B. with bracket, re-
move 2 screws ( 2) LPSP2606Z).
11. Reel motor :
Remove 2 screws ( @D SBSB2608Z)
Pull off the reel motor foward.
12. Flywheel holder ass’y .
Remove 3 screws ( G29) SBSB2608Z)
13. Flywheel assembly 64) 3
1) Remove the take up belt and the capstan belt.
2) Pull off the capstan shaft, caring the nylon washer
for oil cutting.
14. Reel disk ass’y
1) Remove the reel motor, flywheel ass’y and counter
belt.
2) Remove 3 screws ( @)D SBSB26082).
15. Drive gear ass’y unit.
1) Remove the flywheel ass’y.
2) Remove 3 screws ( @2D SBSB2608Z2).
Fig. 37
No.
1443
—16—
