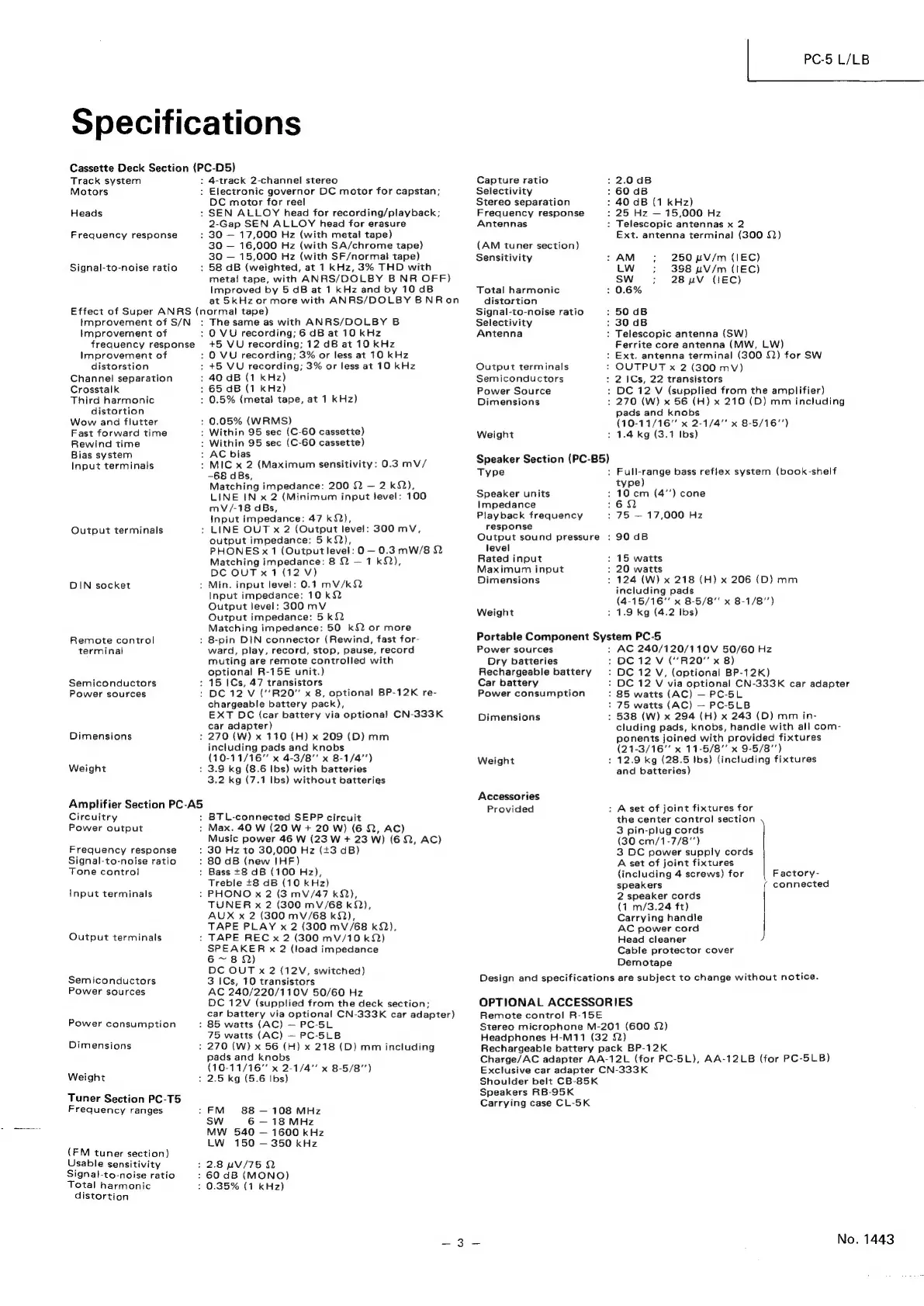

Specifications
Cassette Deck Section (PC-D5)
Track system
Motors
Heads
Frequency response
Signal-to-noise ratio
: 4track 2-channel stereo
: Electronic governor DC motor for capstan;
DC motor for reel
: SEN ALLOY head for recording/playback;
2-Gap SEN ALLOY head for erasure
: 30 — 17,000 Hz (with metal tape)
30 — 16,000 Hz (with SA/chrome tape)
30 — 15,000 Hz (with SF/normai tape)
: 58 dB (weighted, at 1 kHz, 3% THD with
metal tape, with ANRS/DOLBY B NR OFF)
Improved by 5 dB at 1 kHz and by 10 dB
at 5kHz or more with ANRS/DOLBY BNRon
Effect of Super ANRS (normal tape)
tmprovement of S/N
Improvement of
frequency response
Improvement of
distorstion
Channel separation
Crosstalk
Third harmonic
distortion
Wow and flutter
Fast forward time
Rewind time
Bias system
Input terminals
Output terminals
DIN socket
Remote control
terminal
Semiconductors
Power sources
Dimensions
Weight
Amplifier Section PC- nO
Circuitry
Power output
Frequency response
Signal-to-noise ratio
Tone control
Input terminals
Output terminals
Semiconductors
Power sources
Power consumption
Dimensions
Weight
Tuner Section PC-T5
Frequency ranges
(FM tuner section)
Usable sensitivity
Signal-to-noise ratio
Total harmonic
distortion
: LINE OUT x 2 (Output level:
: The same as with ANRS/DOLBY B
: OVU recording; 6 dB at 10 kHz
+5 VU recording; 12 dB at 10 kHz
: O VU recording; 3% or less at 10 kHz
: +5 VU recording; 3% or less at 10 kHz
: 40 dB (1 kHz)
: 65 dB (1 kHz)
: 0.5% (metal tape, at 1 kHz)
: 0.05% (WRMS)
: Within 95 sec (C-60 cassette)
: Within 95 sec (C-60 cassette)
: AC bias
: MIC x 2 (Maximum sensitivity: 0.3 mV/
-68 dBs,
Matching impedance: 200 2 — 2k),
LINE IN x 2 (Minimum input jevel: 100
mV/-18 dBs,
Input impedance: 47 kQ),
300 mV,
output impedance: 5k),
PHONES x 1 (Output level: 0 — 0.3 mW/8 Q
Matching impedance: 8 2 — 1k),
DC OUT x 1 (12 V)
: Min. input level: 0.7 mV/kQ
Input impedance: 10 kQ
Output level: 300 mV
Output impedance: 5 kQ2l
Matching impedance: 50 kQQ or more
: 8-pin DIN connector (Rewind, fast for-
ward, play, record, stop, pause, record
muting are remote controlled with
optional R-15E unit.)
: 15 ICs, 47 transistors
: DC 12 V (“ R20" x 8, optional BP-12K re-
chargeable battery pack),
EXT DC (car battery via optional CN-333K
car adapter)
: 270 (W) x 110 (H) x 209 (D) mm
including pads and knobs
(10-11/16” x 4-3/8" x 8-1/4’)
: 3.9 kg (8.6 Ibs) with batteries
3.2 kg (7.1 Ibs) without batteries
BTL-connected SEPP circuit
: Max. 40 W (20 W + 20 W) (6 2, AC)
Music power 46 W (23 W + 23 W) (62, AC)
: 30 Hz to 30,000 Hz (+3 dB)
: 80 dB (new IHF)
: Bass +8 dB (100 Hz),
Treble +8 dB (10 kHz)
: PHONO x 2 (3 mV/47 kQ),
TUNER x 2 (300 mV/68 k&2),
AUX x 2 (300 mV/68 k22),
TAPE PLAY x 2 (300 mV/68 k&),
: TAPE REC x 2 (300 mV/10 k22)
SPEAKER x 2 (load impedance
6~8 2)
DC OUT x 2 (12V, switched)
3 ICs, 10 transistors
AC 240/220/110V 50/60 Hz
DC 12V (supplied from the deck section;
car battery via optional CN-333K car adapter)
: 85 watts (AC) — PC-5L
75 watts (AC) — PC-5LB
: 270 (W) x 56 (H) x 218 (D) mm including
pads and knobs
(10-11/16" x 2-1/4" x 8-5/8")
: 2.5 kg (5.6 Ibs)
> FM 88 — 108 MHz
sw 6 — 18 MHz
MW 540 — 1600 kHz
LW 150 — 350 kHz
1: 2.8 uV/75.2
: 60 dB (MONO)
: 0.35% (1 kHz)
Capture ratio
Selectivity
Stereo separation
Frequency response
Antennas
(AM tuner section)
Sensitivity
Total harmonic
distortion
Signal-to-noise ratio
Selectivity
Antenna
Output terminals
Semiconductors
Power Source
Dimensions
Weight
Speaker Section (PC- B5)
Type
Speaker units
Impedance
Playback frequency
response
Output sound pressure
level
Rated input
Maximum input
Dimensions
Weight
PC-5 L/LB
: 2.0 dB
: 60 dB
: 40 dB (1 kHz)
: 25 Hz — 15,000 Hz
: Telescopic antennas x 2
Ext. antenna terminal (300 Q)
: AM =; 250 uV/m (IEC)
LW; 388 wV/m (IEC)
SW; 28uV (IEC)
: 0.6%
: 50 dB
: 30 dB
: Telescopic antenna (SW)
Ferrite core antenna (MW, LW)
: Ext. antenna terminal (300 ©) for Sw
: OUTPUT x 2 (300 mv)
: 2 1Cs, 22 transistors
: DC 12 V (supplied from the amplifier)
: 270 (W) x 56 (H) x 210 (D) mm including
pads and knobs
(10-11/16" x 2-1/4" x 8-5/16"’)
: 1.4 kg (3.1 Ibs)
: Full-range bass reflex system (book-shelf
type)
: 10 cm (4’’) cone
:6Q
: 75 — 17,000 Hz
:90dB
: 15 watts
: 20 watts
: 124 (W) x 218 (H) x 206 (D) mm
including pads
(4-15/16" x 8-5/8" x 8-1/8")
: 1.9 kg (4.2 Ibs)
Portable Component baa PC-5
Power sources
Dry batteries
Rechargeable battery
Car battery
Power consumption
Dimensions
Weight
Accessories
Provided
AC 240/120/110V 50/60 Hz
: DC 12 V (''R20” x 8)
: DC 12 V, (optional BP-12K)
> DC 12 V via optional CN-333K car adapter
: 85 watts (AC) — PC-5L
: 75 watts (AC) — PC-5LB
: 538 (W) x 294 (H) x 243 (D) mm in-
cluding pads, knobs, handle with all com-
ponents joined with provided fixtures
(21-3/16" x 11-5/8"' x 9-5/8"')
: 12.9 kg (28.5 Ibs) (including fixtures
and batteries)
: A set of joint fixtures for
the center control section
3 pin-plug cords
(30 cm/1-7/8"')
3 DC power supply cords
A set of joint fixtures
{including 4 screws) for Factory-
speakers connected
2 speaker cords
(1 m/3.24 ft)
Carrying handle
AC power cord
Head cleaner
Cable protector cover
Demotape
Design and specifications are subject to change without notice.
OPTIONAL ACCESSORIES
Remote control R-15E
Stereo microphone M-201 (600 (2)
Headphones H-M11 (32 92)
Rechargeable battery pack BP-12K
Charge/AC adapter AA-12L (for PC-5L), AA-12LB (for PC-5LB)
Exclusive car adapter CN-333K
Shoulder belt CB-85K
Speakers RB-95K
Carrying case CL-5K
