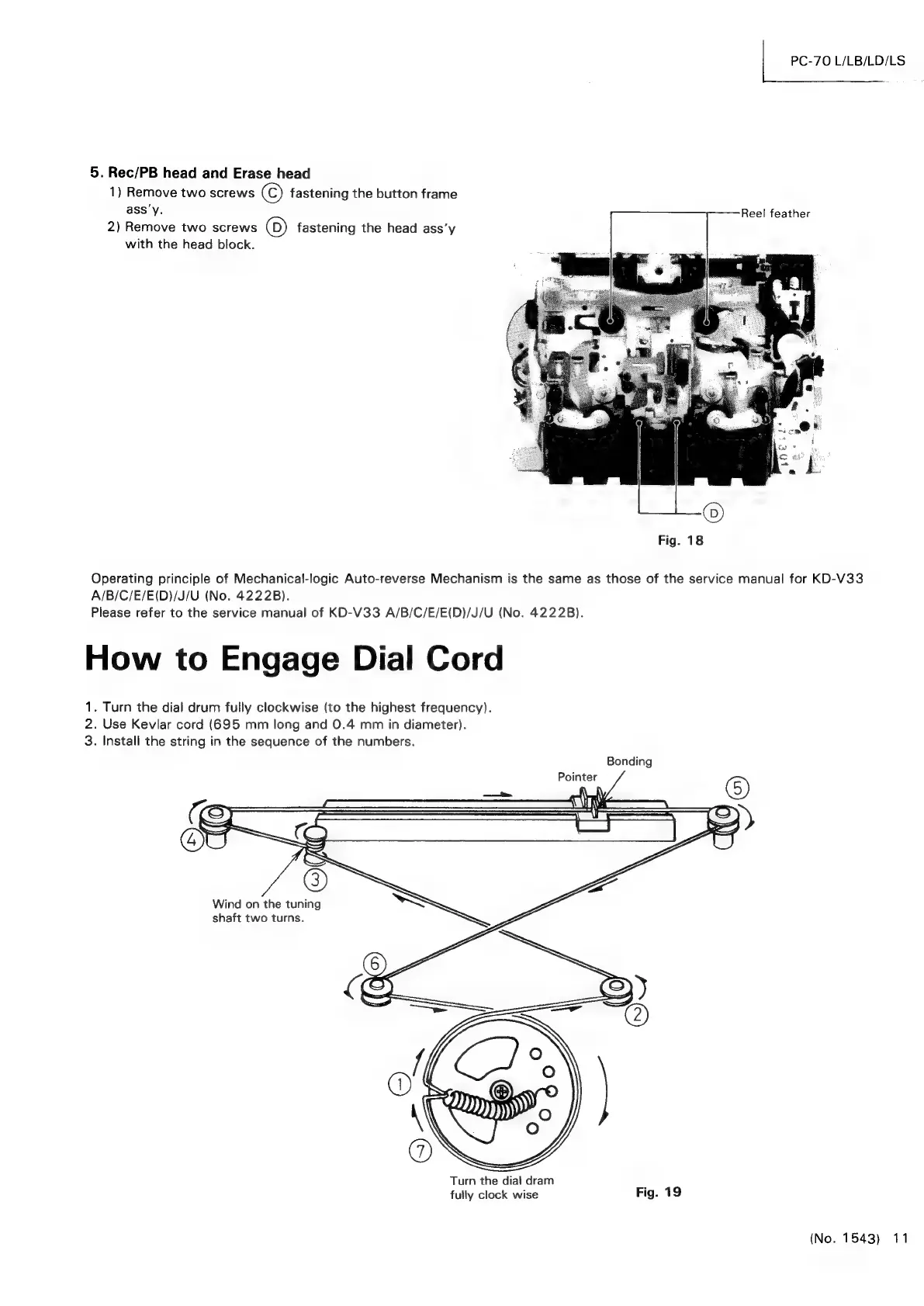

PC-70
L/LB/LD/LS
5.
Rec/PB
head
and
Erase
head
1)
Remove
two
screws
©
fastening
the
button
frame
ass’y.
2)
Remove
two
screws
(0)
fastening
the
head
ass’y
with
the
head
block.
Reel
feather
Fig.
18
Operating
principle
of
Mechanical-logic
Auto-reverse
Mechanism
is
the
same
as
those
of
the
service
manual
for
KD-V33
A/B/C/E/E(D)/J/U
(No.
4222B).
Please
refer
to
the
service
manual
of
KD-V33
A/B/C/E/E(D)/J/U
(No.
4222B).
How
to
Engage
Dial
Cord
1.
Turn
the
dial
drum
fully
clockwise
(to
the
highest
frequency).
2.
Use
Kevlar
cord
(695
mm
long
and
0.4
mm
in
diameter).
3.
Install
the
string
in
the
sequence
of
the
numbers.
Bonding
Pointer
Wind
on
the
tuning
shaft
two
turns.
Turn
the
dial
dram
fully
clock
wise
Fig.
19
(No.
1543)
11
