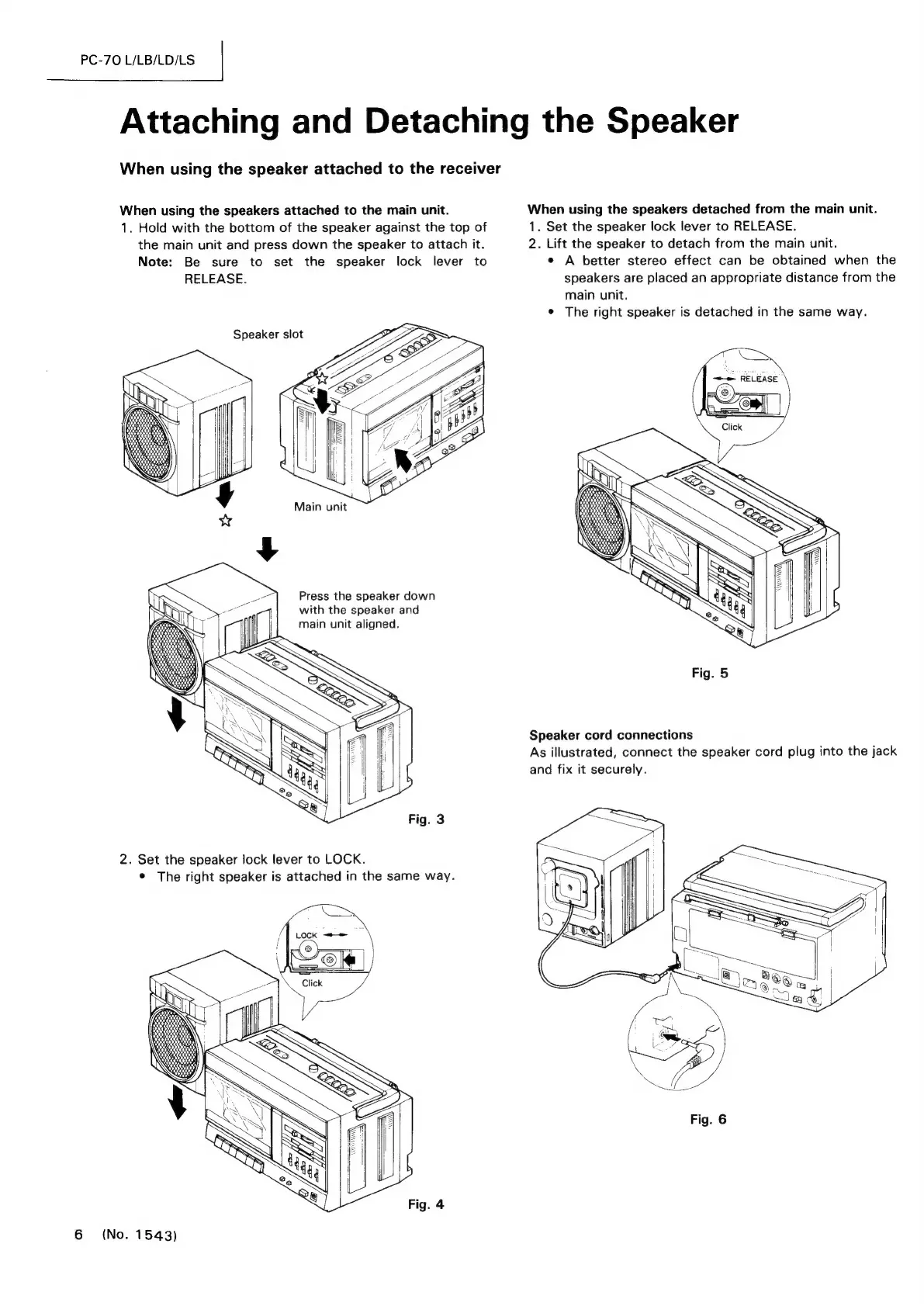

Attaching and Detaching the Speaker
When using the speaker attached to the receiver
When using the speakers attached to the main unit. When using the speakers detached from the main unit.
1. Hold with the bottom of the speaker against the top of 1. Set the speaker lock lever to RELEASE.
the main unit and press down the speaker to attach it. 2. Lift the speaker to detach from the main unit.
Note: Be sure to set the speaker lock lever to e A better stereo effect can be obtained when the
RELEASE. speakers are placed an appropriate distance from the
main unit.
e The right speaker is detached in the same way.
Speaker slot
~= RELEASE
Press the speaker down
with the speaker and
main unit aligned.
Speaker cord connections
As illustrated, connect the speaker cord plug into the jack
and fix it securely.
2. Set the speaker lock lever to LOCK.
¢ The right speaker is attached in the same way.
