PC-70 L/LB/LD/LS

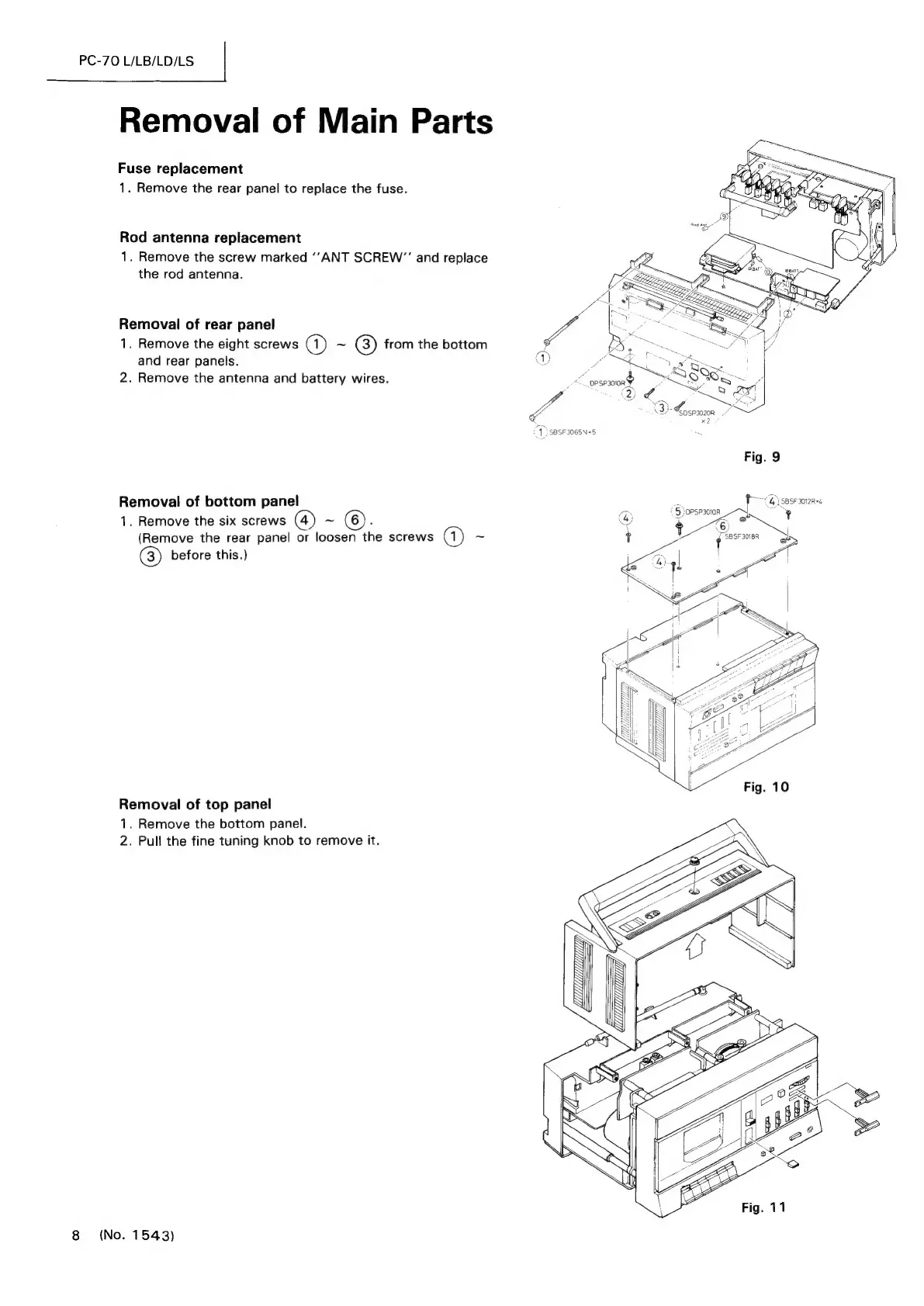

Removal of Main Parts
Fuse replacement
1. Remove the rear panel to replace the fuse.
Rod antenna replacement
1. Remove the screw marked ‘‘ANT SCREW” and replace
the rod antenna.
Removal of rear panel
1. Remove the eight screws (1) ~ GB) from the bottom
and rear panels.
2. Remove the antenna and battery wires.
a ~ Soy? 7 : i
’ As, > aa
ie SNS Sahn
RN f on
D- Qoeprnae va
x2
7 seSF3065N«5 &
Fig. 9
Removal of bottom panel
1. Remove the six screws (4) ~ 6) ; wy
(Remove the rear panel or loosen the screws @) ~
@) before this.)
ans
oe
‘ ?
© nS
Removal of top panel
1. Remove the bottom panel.
2. Pull the fine tuning knob to remove it.
8 (No. 1543)
