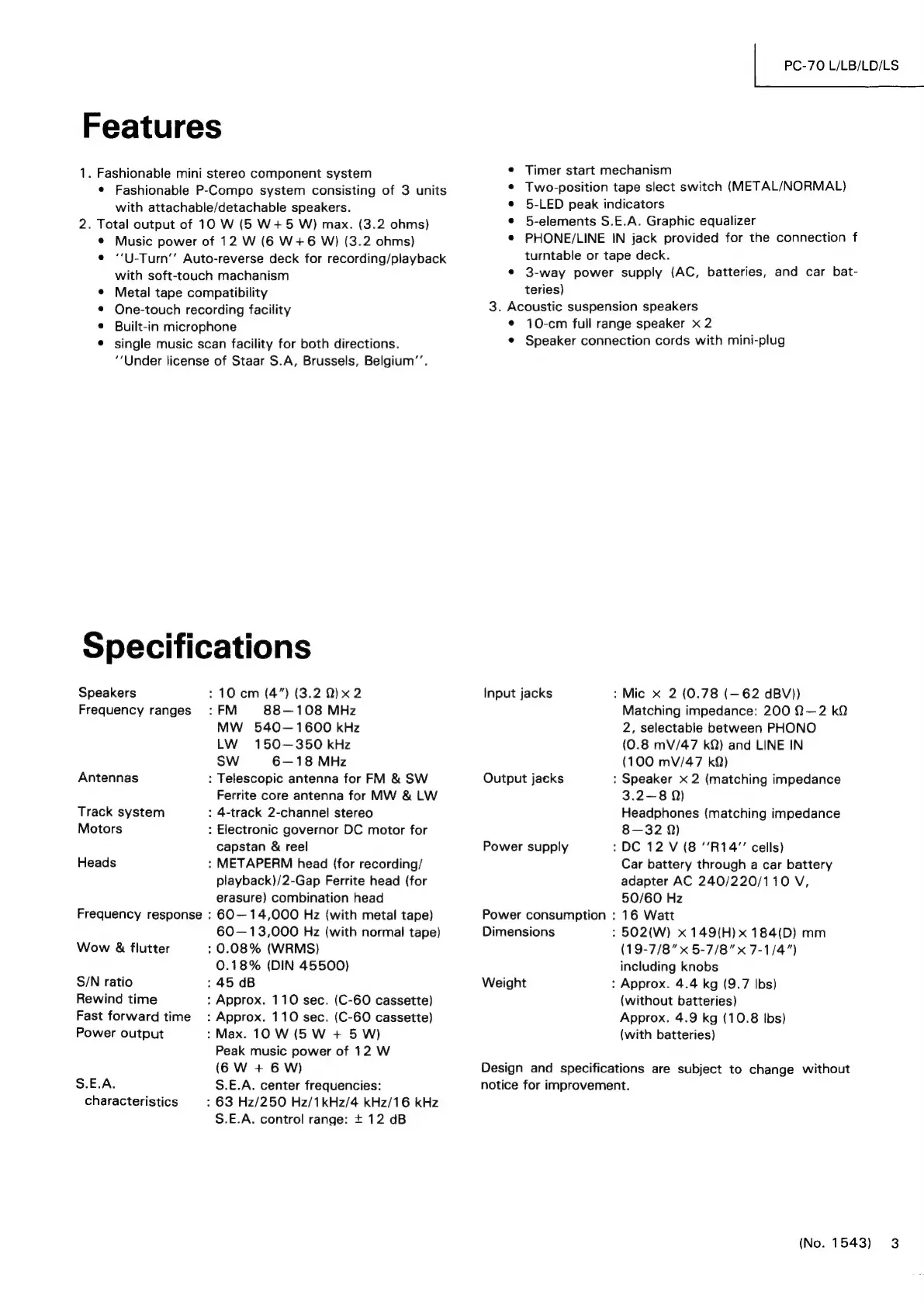

Features
1. Fashionable mini stereo component system
Fashionable P-Compo system consisting of 3 units
with attachable/detachable speakers.
2. Total output of 10 W (5 W+5 W) max. (3.2 ohms)
Music power of 12 W (6 W+6 W) (3.2 ohms)
“U-Turn’’ Auto-reverse deck for recording/playback
with soft-touch machanism
PC-70 L/LB/LD/LS
Timer start mechanism
Two-position tape slect switch (METAL/NORMAL)}
5-LED peak indicators
5-elements S.E.A. Graphic equalizer
PHONE/LINE IN jack provided for the connection f
turntable or tape deck.
3-way power supply (AC, batteries, and car bat-
Metal tape compatibility
One-touch recording facility
Built-in microphone
single music scan facility for both directions.
‘‘Under license of Staar S.A, Brussels, Belgium’’.
Specifications
Speakers
Frequency ranges
Antennas
Track system
Motors
Heads
Frequency response
Wow & flutter
S/N ratio
Rewind time
Fast forward time
Power output
S.E.A.
characteristics
: 10 cm (4”) (3.2 2)x 2
:FM 88—108 MHz
MW 540-1600 kHz
LW 150—350 kHz
SW 6—18 MHz
: Telescopic antenna for FM & SW
Ferrite core antenna for MW & LW
: 4-track 2-channel stereo
: Electronic governor DC motor for
capstan & reel
: METAPERM head (for recording/
playback)/2-Gap Ferrite head (for
erasure) combination head
: 6O— 14,000 Hz (with metal tape)
60—13,000 Hz (with normal tape)
: 0.08% (WRMS)
0.18% (DIN 45500)
: 45 dB
: Approx. 110 sec. (C-60 cassette)
: Approx. 110 sec. (C-60 cassette)
: Max. 10 W (5 W + 5 W)
Peak music power of 12 W
(6 W + 6 W)
S.E.A. center frequencies:
: 63 Hz/250 Hz/1kHz/4 kHz/16 kHz
S.E.A. control range: + 12 dB
teries)
3. Acoustic suspension speakers
¢ 10-cm full range speaker x 2
¢ Speaker connection cords with mini-plug
Input jacks
Output jacks
Power supply
Power consumption :
: 502(W) x 149(H) x 184(D) mm
Dimensions
Weight
: Mic x 2 (0.78 (—62 dBV))
Matching impedance: 200 2—2 kQ
2, selectable between PHONO
(0.8 mV/47 kQ) and LINE IN
(100 mV/47 kQ)
: Speaker x 2 (matching impedance
3.2—8 Q)
Headphones (matching impedance
8—32 Q)
:DC 12 V (8 “R14” cells)
Car battery through a car battery
adapter AC 240/220/110 V,
50/60 Hz
16 Watt
(19-7/8”" x 5-7/8” x 7-1/4”)
including knobs
: Approx. 4.4 kg (9.7 Ibs)
(without batteries)
Approx. 4.9 kg (10.8 Ibs)
(with batteries)
Design and specifications are subject to change without
notice for improvement.
(No. 1543)
