PC-70 L/LB/LD/LS

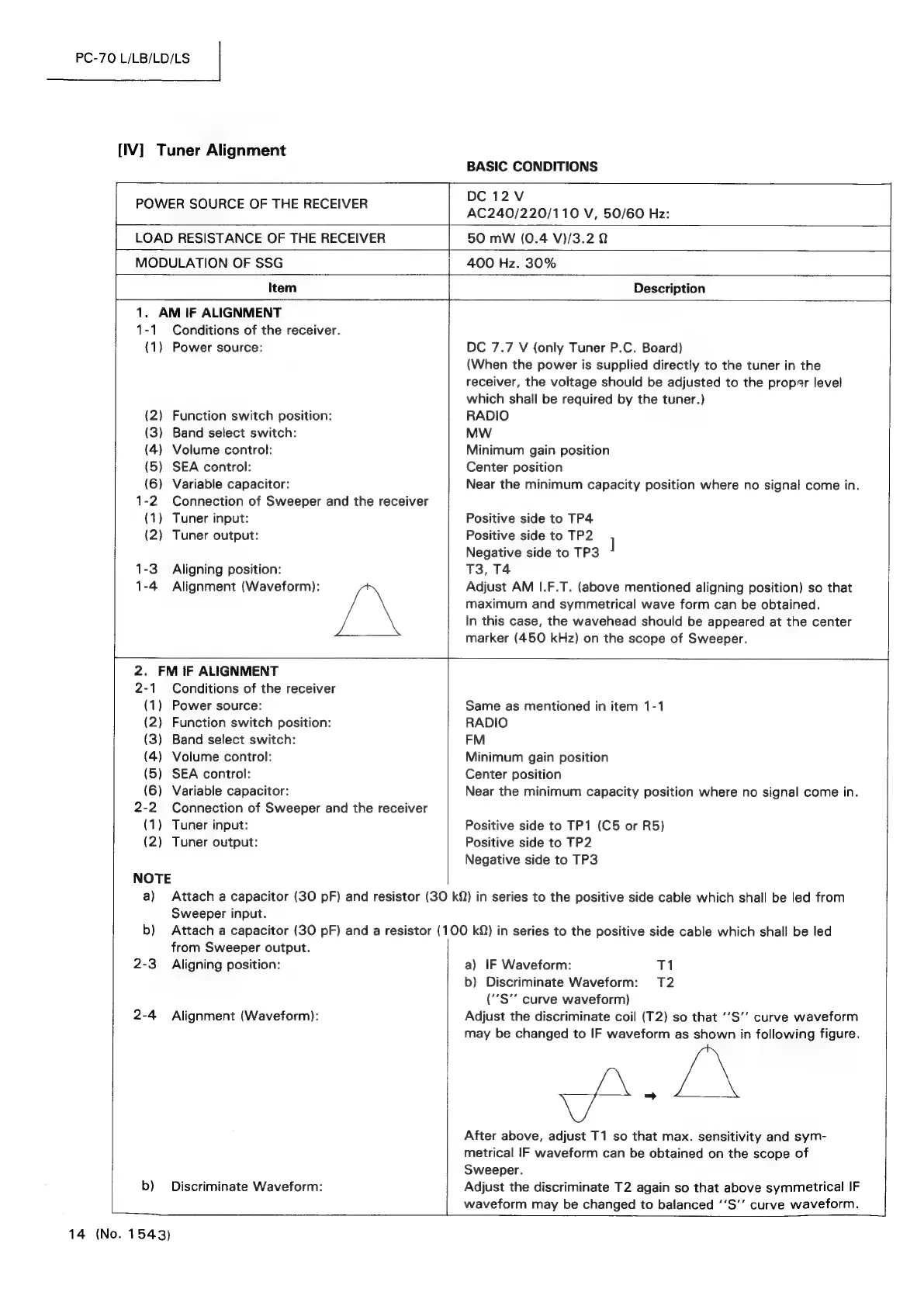

[IV] Tuner Alignment
POWER SOURCE OF THE RECEIVER
BASIC CONDITIONS
DC 12V
AC240/220/110 V, 50/60 Hz:
LOAD RESISTANCE OF THE RECEIVER
50 mW (0.4 V)/3.2 0
MODULATION OF SSG
400 Hz. 30%
Item
1. AM IF ALIGNMENT
1 Conditions of the receiver.
) Power source:
(2) Function switch position:
(3) Band select switch:
(4) Volume control:
(5) SEA control:
(6) Variable capacitor:
1-2 Connection of Sweeper and the receiver
(1) Tuner input:
(2) Tuner output:
1-3 Aligning position:
1-4 Alignment (Waveform):
2. FM IF ALIGNMENT
2-1 Conditions of the receiver
(1) Power source:
(2) Function switch position:
(3) Band select switch:
(4) Volume control:
(5) SEA control:
(6) Variable capacitor:
2-2 Connection of Sweeper and the receiver
(1) Tuner input:
(2) Tuner output:
NOTE
Description
DC 7.7 V {only Tuner P.C. Board)
(When the power is supplied directly to the tuner in the
receiver, the voltage should be adjusted to the proper level
which shail be required by the tuner.)
RADIO
MW
Minimum gain position
Center position
Near the minimum capacity position where no signal come in.
Positive side to TP4
Positive side to TP2 j
Negative side to TP3
T3, T4
Adjust AM I.F.T. (above mentioned aligning position) so that
maximum and symmetrical wave form can be obtained.
In this case, the wavehead should be appeared at the center
marker (450 kHz) on the scope of Sweeper.
Same as mentioned in item 1-1
RADIO
FM
Minimum gain position
Center position
Near the minimum capacity position where no signal come in.
Positive side to TP1 (C5 or R5)
Positive side to TP2
Negative side to TP3
a) Attach a capacitor (30 pF) and resistor (30 kQ) in series to the positive side cable which shall be led from
Sweeper input.
b) Attach a capacitor (30 pF) and a resistor (100 kQ) in series to the positive side cable which shall be led
from Sweeper output.
2-3 Aligning position:
2-4 Alignment (Waveform):
b) Discriminate Waveform:
a) IF Waveform: T1
b) Discriminate Waveform: T2
(’S’’ curve waveform)
Adjust the discriminate coil (T2) so that ‘’S’’ curve waveform
may be changed to IF waveform as shown in following figure.
After above, adjust T1 so that max. sensitivity and sym-
metrical IF waveform can be obtained on the scope of
Sweeper.
Adjust the discriminate T2 again so that above symmetrical IF
waveform may be changed to balanced ‘‘S’’ curve waveform.
|
14 (No. 1543)
