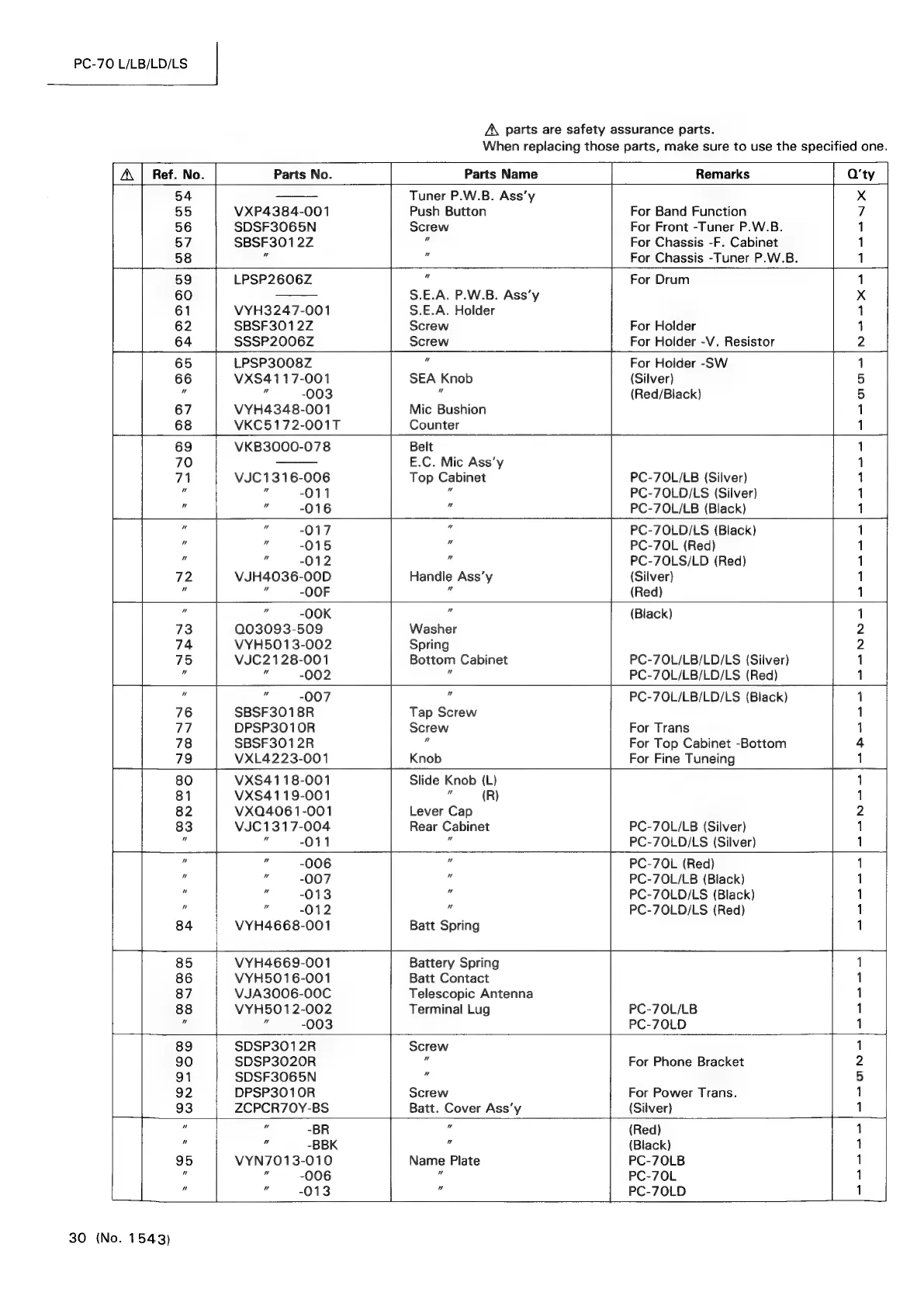

PC-70 L/LB/LD/LS
AX parts are safety assurance parts.
When replacing those parts, make sure to use the specified one.
A\ | Ref. No. Parts No. Parts Name Remarks Q'ty
54 Tuner P.W.B. Ass’y x
55 VXP4384-001 Push Button For Band Function 7
56 SDSF3065N Screw For Front -Tuner P.W.B. 1
57 SBSF301 2Z : For Chassis -F. Cabinet 1
58 ” me For Chassis -Tuner P.W.B. 1
59 LPSP2606Z 3 For Drum 1
60 S.E.A. P.W.B. Ass’y xX
61 VYH3247-001 S.E.A. Holder 1
62 SBSF3012Z Screw For Holder 1
64 SSSP2006Z Screw For Holder -V. Resistor 2
65 LPSP3008Z i For Holder -SW 1
66 VXS4117-001 SEA Knob (Silver) 5
” . -003 ss (Red/Black) 5
67 VYH4348-001 Mic Bushion 1
68 VKC5172-001T Counter 1
69 VKB3000-078 Belt 1
70 E.C. Mic Ass’y 1
71 VJC1316-006 Top Cabinet PC-7OL/LB (Silver) 1
bg ¢ -011 " PC-7OLD/LS (Silver) 1
" -016 f PC-7OL/LB (Black) 1
i‘ £ -017 " PC-7OLD/LS (Black) 1 :
M -015 if PC-7OL (Red) 1
4 -012 . PC-7OLS/LD (Red) 1
72 VJH4036-00D Handle Ass’y (Silver) 1
‘“ id -OOF . (Red) 1
’ f -OOK * (Black) 1
73 Q03093-509 Washer 2
74 VYH5013-002 Spring 2
75 VJC2128-001 Bottom Cabinet PC-7OL/LB/LD/LS (Silver) 1
if bs -002 . PC-70L/LB/LD/LS (Red) 1
m " -007 . PC-70L/LB/LD/LS (Black) 1
76 SBSF3018R Tap Screw 1
77 DPSP3010R Screw For Trans 1
78 SBSF3012R 2 For Top Cabinet -Bottom 4
79 VXL4223-001 Knob For Fine Tuneing 1
80 VXS4118-001 Slide Knob (L) 1
81 VXS4119-001 i. (R) 1
82 VX0Q4061-001 Lever Cap 2
83 VJC1317-004 Rear Cabinet PC-7OL/LB (Silver) 1
: "011 : PC-7OLD/LS (Silver) 1 |
‘ f -006 . PC-7OL (Red) 1
" -007 ” PC-7OL/LB (Black) 1
. is -013 ” PC-7OLD/LS (Black) 1
7 g -012 id PC-7OLD/LS (Red) 1
84 VYH4668-001 Batt Spring | 1
85 VYH4669-001 Battery Spring 1
86 VYH5016-001 Batt Contact 1
87 VJA3006-00C Telescopic Antenna 1
88 VYH5012-002 Terminal Lug PC-70L/LB 1
" -003 PC-70LD 1
89 SDSP3012R Screw 1
90 SDSP3020R Ad For Phone Bracket 2
91 SDSF3065N a 5
92 DPSP3010R Screw For Power Trans. 1
93 ZCPCR70Y-BS Batt. Cover Ass’y (Silver) 1
ce Z a -BR e (Red) 1
os ” -BBK n (Black) 1
95 VYN7013-010 Name Plate PC-70LB 1
a i -006 - PC-70L 1
| ¥ % -013 ud PC-70LD 1 |
30 (No. 1543)
