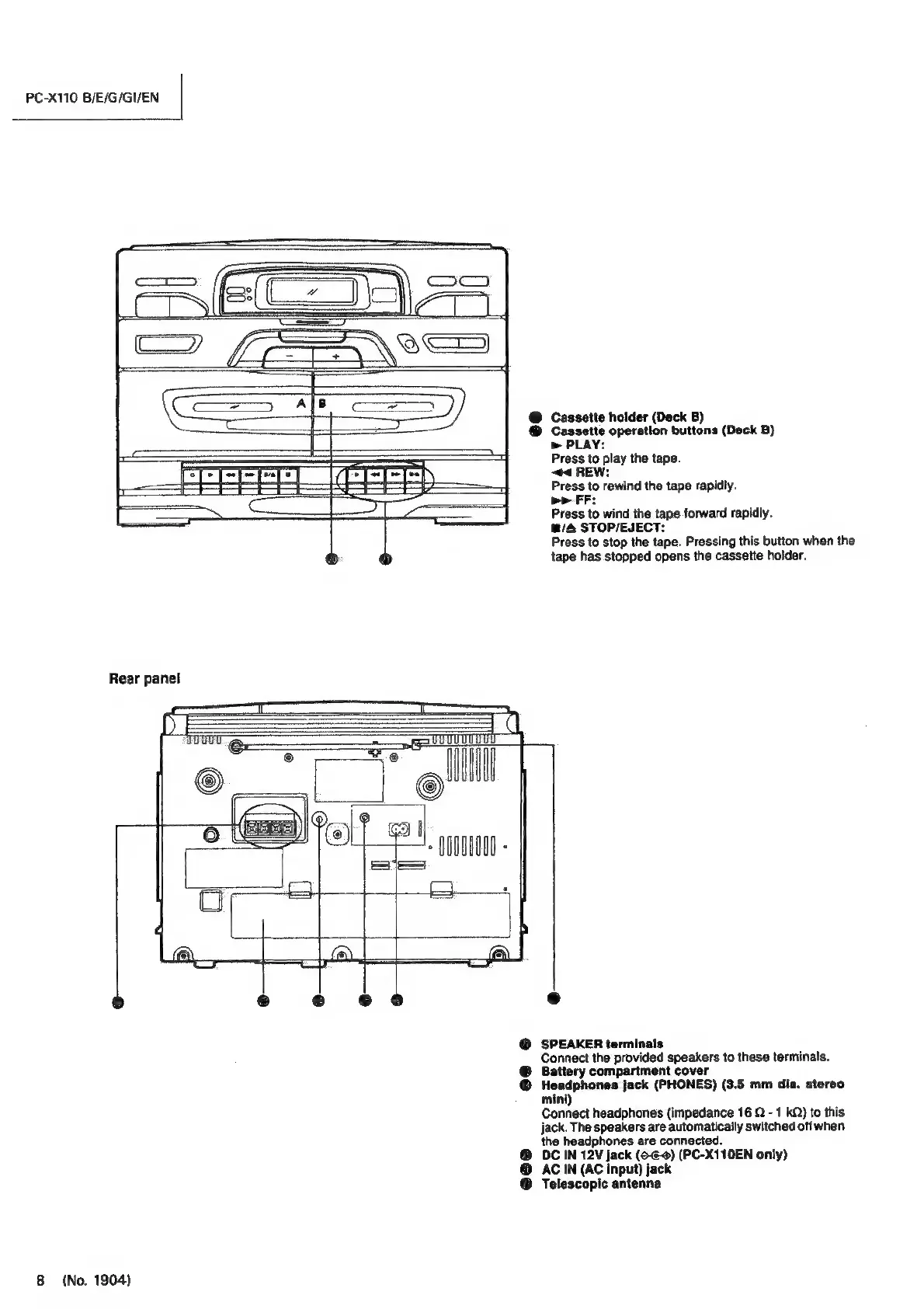

JVC PC-X110 - Rear Panel Connections and Controls; Cassette Deck B Controls; External Connections Overview

PC-X110 B/E/G/GI/EN
‘< C = > AIB ¢ = y 7)
=
—
@
Cassette
holder
(Deck
B)
@ Cassette operation buttons (Deck B)
> PLAY:
Press to play the tape.
eT lal] = Tot 1e <4 REW:
r
Press
to
rewind
the
tape
rapidly.
b> FF:
Press to wind the tape forward rapidly.
@/& STOP/EJECT:
Press to stop the tape. Pressing this button when the
tape has stopped opens the cassette holder.
Rear panel
@ SPEAKER terminals
Connect the provided speakers to these terminals.
Battery compartment cover
Headphones jack (PHONES) (3.5 mm dia. stereo
mini)
Connect headphones (impedance 16 Q - 1 kQ) to this
jack. The speakers are automatically switched off when
the headphones are connected.
@ DC IN 12V jack (o¢-) (PC-X110EN only)
@ ACIN (AC input) jack
@ Telescopic antenna
8 (No. 1904)
