1 - 16
PC-X250

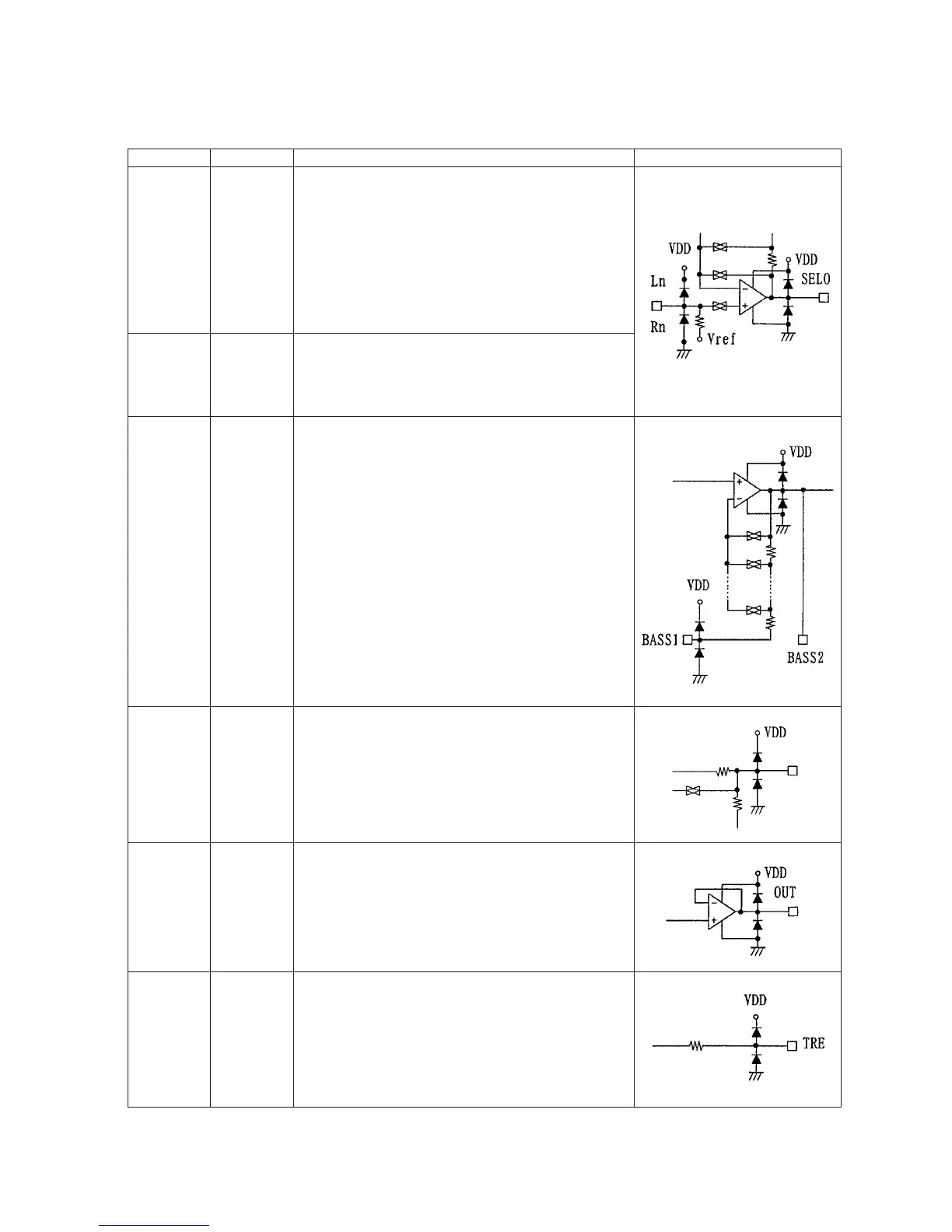

LC75342 Pin Functions
Pin No. Pin Description Notes
¥ Input signal connections
14
13
12
11
17
18
19
20
L1
L2
L3
L4
R1
R2
R3
R4
¥ Connections for the resistors and capacitors that form the bass band
filters.
7
6
24
25
LBASS1
LBASS2
RBASS1
RBASS2
¥ Input selector outputs
10
21
LSEL0
RSEL0
¥ Volume and equalizer outputs
5
26
LOUT
ROUT
8
23
LTRE
RTRE
¥ Connections for the capacitors that form the treble band filters.
9
22
LIN
RIN
¥ Volume control and equalizer input
