Disassembly method
Removing the rear panel
1.

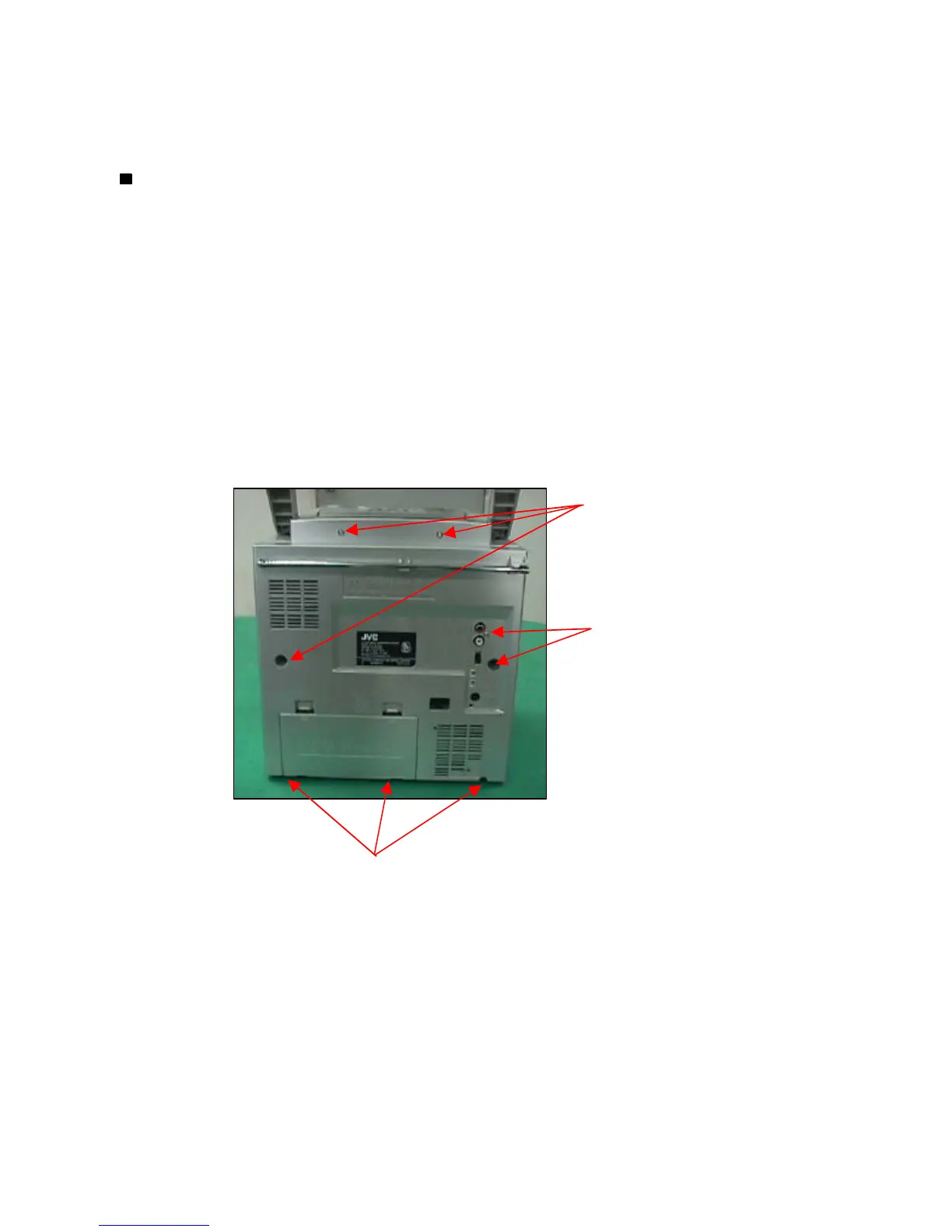

From behind the body, remove the Five screws
A
retaining the rear panel.
2.
Then remove the Two screws
B
retaining the bottom of rear panel.
3.
Take out the rear panel from the body.
Note:
Be careful of the FM antenna white wire, it is connection with the tuner PCB up side.
You can directly take out from the tuner PCB.
When you re-assembly the product, plug the FM antenna white wire into the Tuner PCB's
"FM ANT" position.
Screw A.
Screw A.
Screw B.
1 - 4
