JVC QL-Y5F User Manual

HEFEA I indicator
Wiederhol-Anzeige
Indicateur de
‘Anzeige (30)
ur de taille (30)
GréRen-Anzeiae (17)
Indicateur de taille(17)
QUARTZ LOCK indicator
Quartzverriegelungs-Anzeige
Indicatour d’asservissoment
a quartz
SPEED indicator (45)
Geschwindigkeits-Anzeige (45)
Indicoteur de vitesse (45)
SPEED indicator (33)
Geschwindigkeits-Anzeige (33)
Indicateur de vitesse (33)
0)

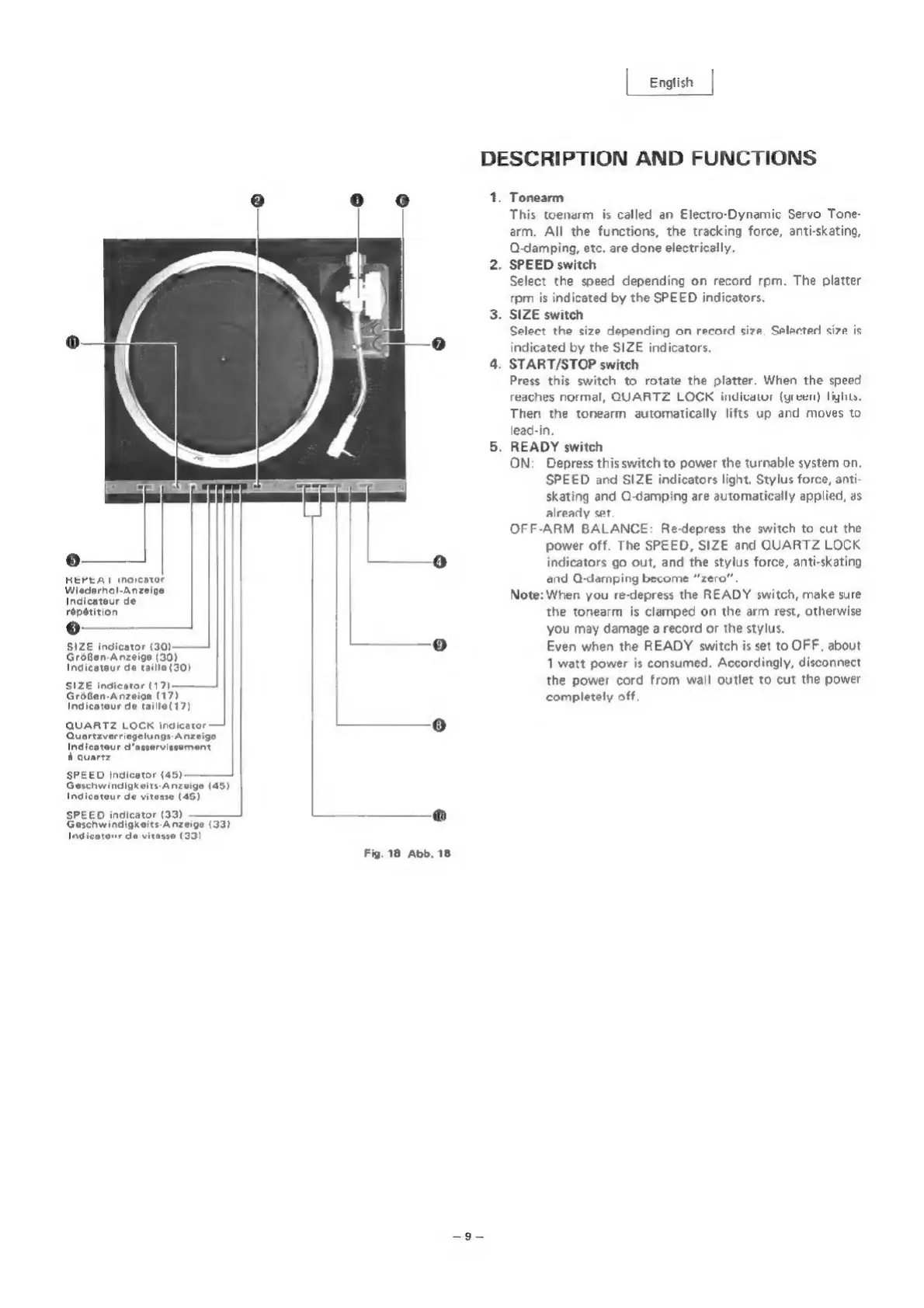

Fig. 18 Abb. 18
English
DESCRIPTION AND FUNCTIONS
. Tonearm
This toenarm is called an Electro-Dynamic Servo Tone:
arm. All the functions, the tracking force, anti-skating,
Q-damping, etc. are done electrically.
. SPEED switch
Select the speed depending on record rpm. The platter
rpm is indicated by the SPEED indicators.
. SIZE switch
Select the size depending on record size. Selected size is
indicated by the SIZE indicators.
. START/STOP switch
Press this switch to rotate the platter. When the speed
reaches normal, QUARTZ LOCK indicator (green) lights.
Then the tonearm automatically lifts up and moves to
lead-in.
. READY switch
ON: Depress this switch to power the turnable system on.
SPEED and SIZE indicators light. Stylus force, anti-
skating and Q-damping are automatically applied, as
already set
OFF-ARM BALANCE: Re-depress the switch to cut the
power off. The SPEED, SIZE and QUARTZ LOCK
indicators go out, and the stylus force, anti-skating
and Q-damping become “zero”
Note: When you re-depress the READY switch, make sure
the tonearm is clamped on the arm rest, otherwise
you may damage a record or the stylus.
Even when the READY switch is set to OFF, about
1 watt power is consumed. Accordingly, disconnect
the power cord from wall outlet to cut the power
completely off

JVC QL-Y5F Specifications

General

Brand	JVC
Model	QL-Y5F
Category	Turntable
Language	English
