English

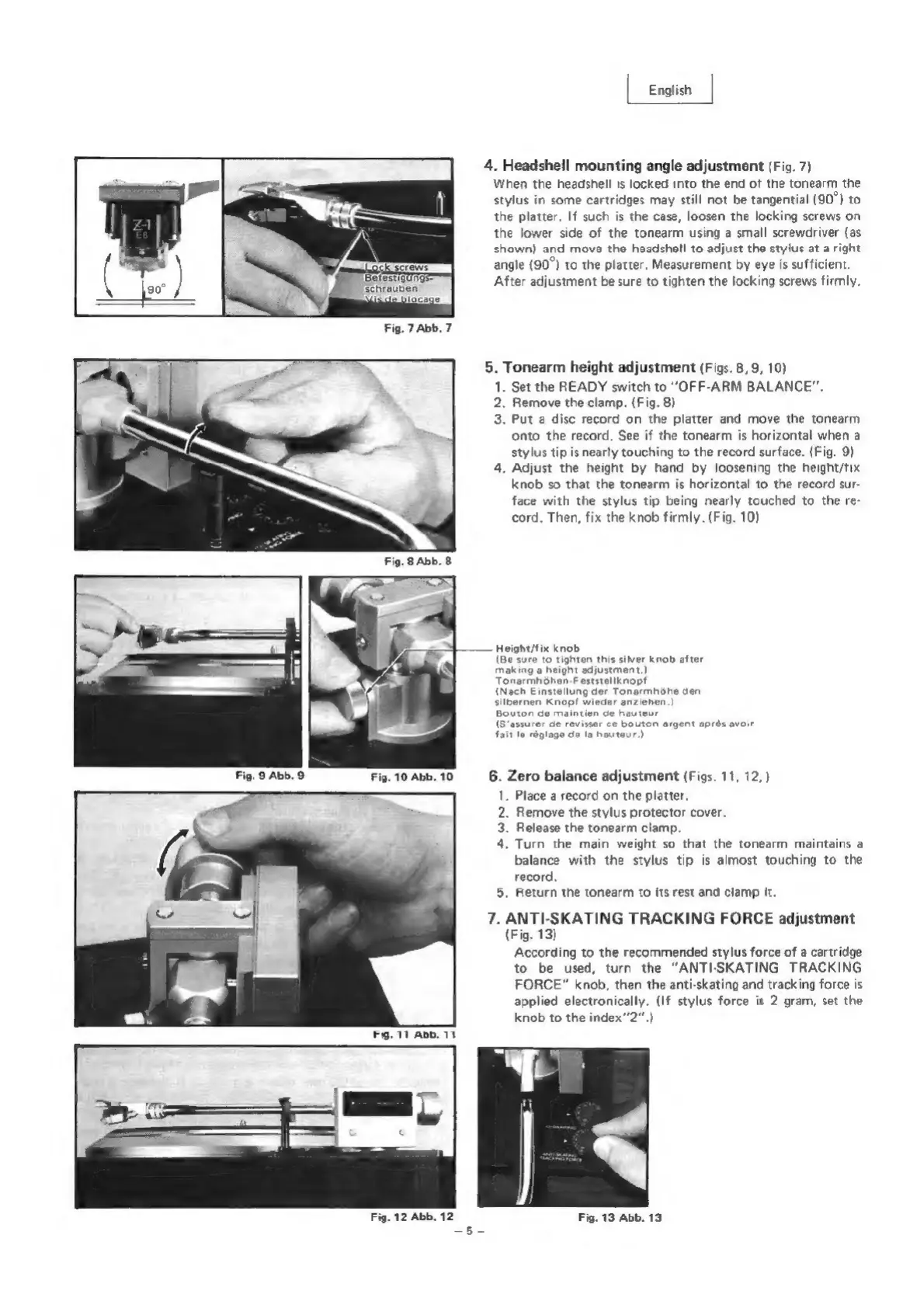

4. Headshell mounting angle adjustment (Fig. 7)
When the headshell is locked into the end of the tonearm the
stylus in some cartridges may still not be tangential (90°) to
the platter. If such is the case, loosen the locking screws on
the lower side of the tonearm using a small screwdriver (as
shown) and move the headshell to adjust the stylus at a right
angle (90°) to the platter. Measurement by eye is sufficient.
After adjustment be sure to tighten the locking screws firmly.
Fig. 7 Abb. 7
5. Tonearm height adjustment (Figs. 8,9, 10)
1. Set the READY switch to ‘OF F-ARM BALANCE”.
2. Remove the clamp. (Fig. 8)
3. Put a disc record on the platter and move the tonearm
onto the record. See if the tonearm is horizontal when a
stylus tip is nearly touching to the record surface. (Fig. 9)
4. Adjust the height by hand by loosening the height/tix
knob so that the tonearm is horizontal to the record sur-
face with the stylus tip being nearly touched to the re-
cord. Then, fix the knob firmly. (Fig. 10)
Height/fix knob
(Be sure to tighten this silver knob after
making a height adjustment.)
Tonarmhohen-Feststellknopf
(Nach Einstellung der Tonarmhohe den
silbernen Knopf wieder anziehen.)
Bouton de maintien de hauteur
(G‘assurer de revisser ce bouton argent aprés avoir
fait le réglage do la hauteur.)
Fig. 10 Abb. 10 6. Zero balance adjustment (Figs. 11, 12,)
1. Place a record on the platter
2. Remove the stylus protector cover.
3. Release the tonearm clamp.
4. Turn the main weight so that the tonearm maintains a
balance with the stylus tip is almost touching to the
record.
5. Return the tonearm to its rest and clamp It.
7. ANTI-SKATING TRACKING FORCE adjustment
(Fig. 13)
According to the recommended stylus force of a cartridge
to be used, turn the “ANTI-SKATING TRACKING
FORCE” knob, then the anti-skating and tracking force is
applied electronically. (If stylus force is 2 gram, set the
knob to the index’’2”.)
Fig. 11 Abb. 11
Fig. 12 Abb. 12 Fig. 13 Abb. 13
-5
