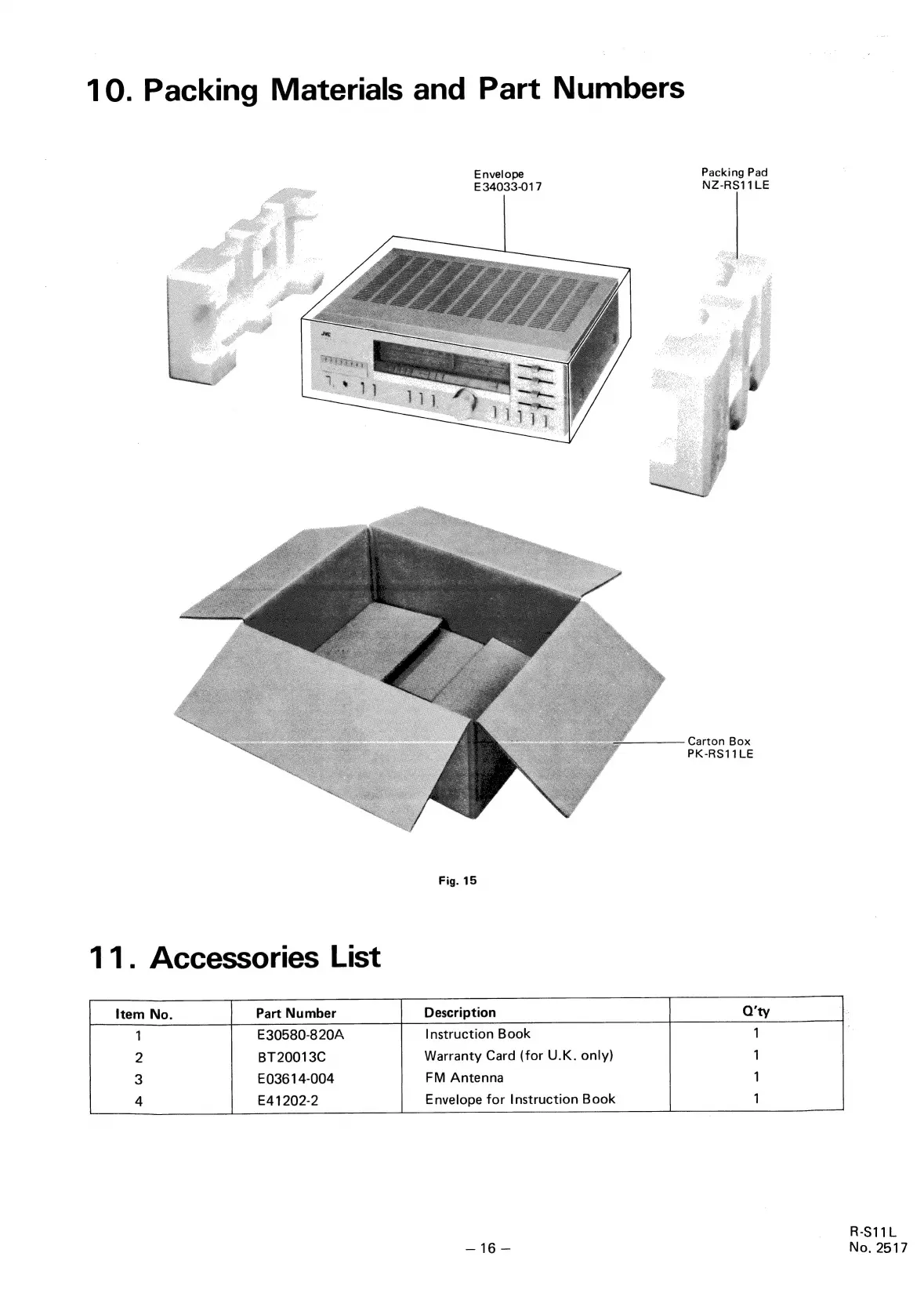

10.
Packing
Materials
and
Part
Numbers
Envelope
Packing
Pad
E34033-017
NZ-RS11LE
Carton
Box
PK-RS11LE
Fig.
15
11.
Accessories
List
Part
Number
Description
E30580-820A
Instruction
Book
BT
20013C
Warranty
Card
(for
U.K.
only)
E036
14-004
FM
Antenna
E41202-2
Envelope
for
Instruction
Book
R-S11L
246
=
No.
2517
18
