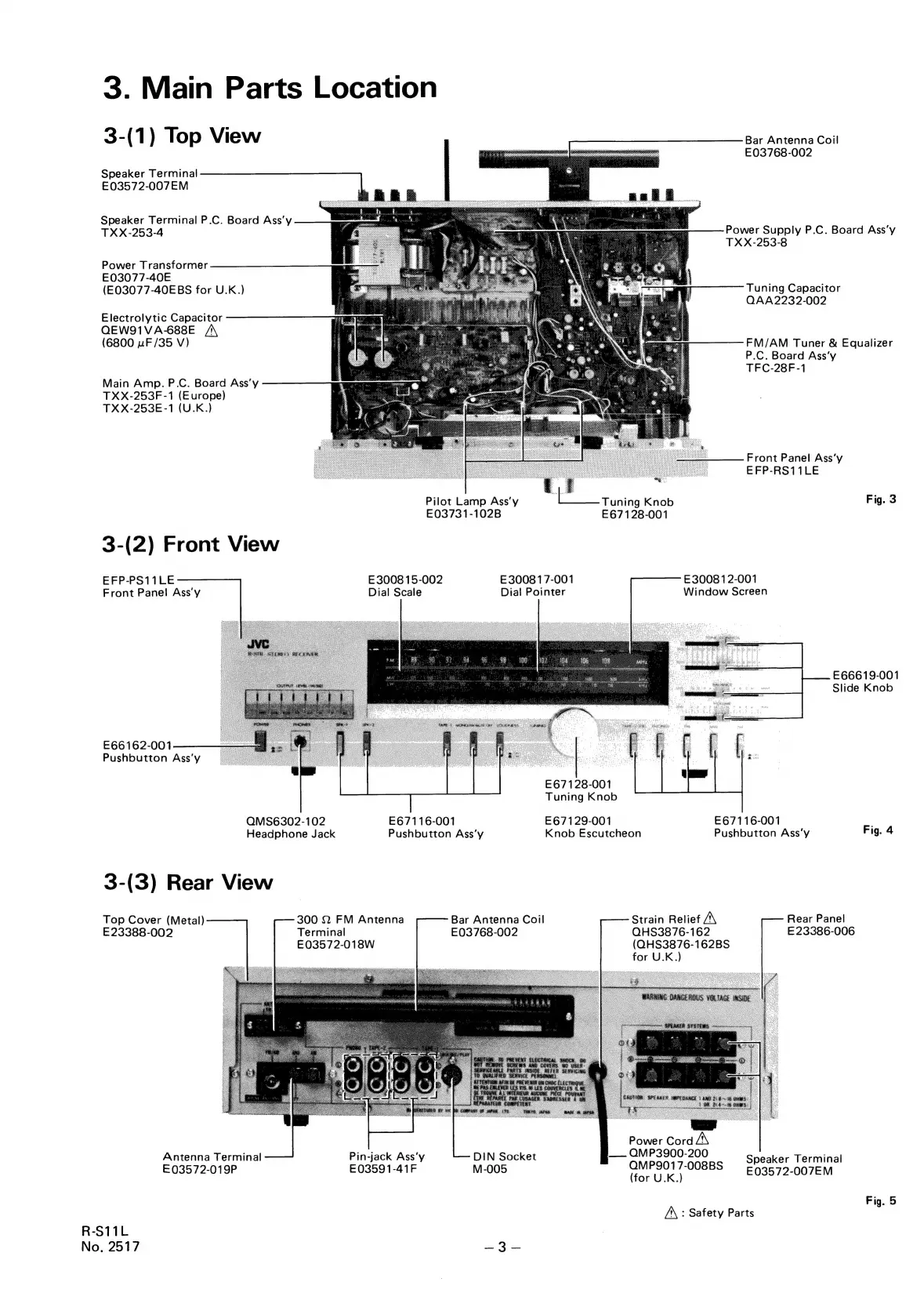

3. Main Parts Location
3-(1) Top View
Bar Antenna Coil
E03768-002
Speaker Terminal | ee
E03572-007EM a Nas | ss a
Speaker Terminal P.C. Board Ass’y
TXX-253-4
Power
Supply
P.C.
Board
Ass’y
TXX-253-8
Power Transformer
E03077-40E
(E03077-40EBS for U.K.) Tuning Capacitor
QAA2232-002
Electrolytic Capacitor
QEW91VA-688E /\
(6800 wF/35 V) FM/AM Tuner & Equalizer
P.C. Board Ass’y
TFC-28F -1
Main Amp. P.C. Board Ass’y
TXX-253F-1 (Europe)
TX X-253E-1 (U.K.)
Front Panel Ass‘y
EFP-RS11LE
Pilot Lamp Ass’y Tuning Knob Fig. 3
E03731-102B E67128-001
3-(2) Front View
EFP-PS11LE E3008 15-002 E3008 17-001 E3008 12-001
Front Panel Ass’y Dial Scale Dial Pointer Window Screen
E66619-001
Slide Knob
E66162-001
Pushbutton Ass’y
E67128-001
Tuning Knob
QMS6302-102 E67116-001 E67129-001 E67116-001 ;
Headphone Jack Pushbutton Ass’y Knob Escutcheon Pushbutton Ass‘y Fig. 4
3-(3) Rear View
Top Cover (Metal)
E23388-002
300 2 FM Antenna Bar Antenna Coil Strain Relief A\ Rear Panel
Terminal E03768-002 QHS3876-162 E23386-006
E03572-018W (QHS3876-162BS
for U.K.)
Power Cord /\
Antenna Terminal Pin-jack Ass'y DIN Socket |— OMP3900-200 Speaker Terminal
E03572-019P E03591-41F M-005 Geege ee E03572-007EM
Fig. 5
Z\ : Safety Parts
R-S11L
No, 2517 ac: ee
