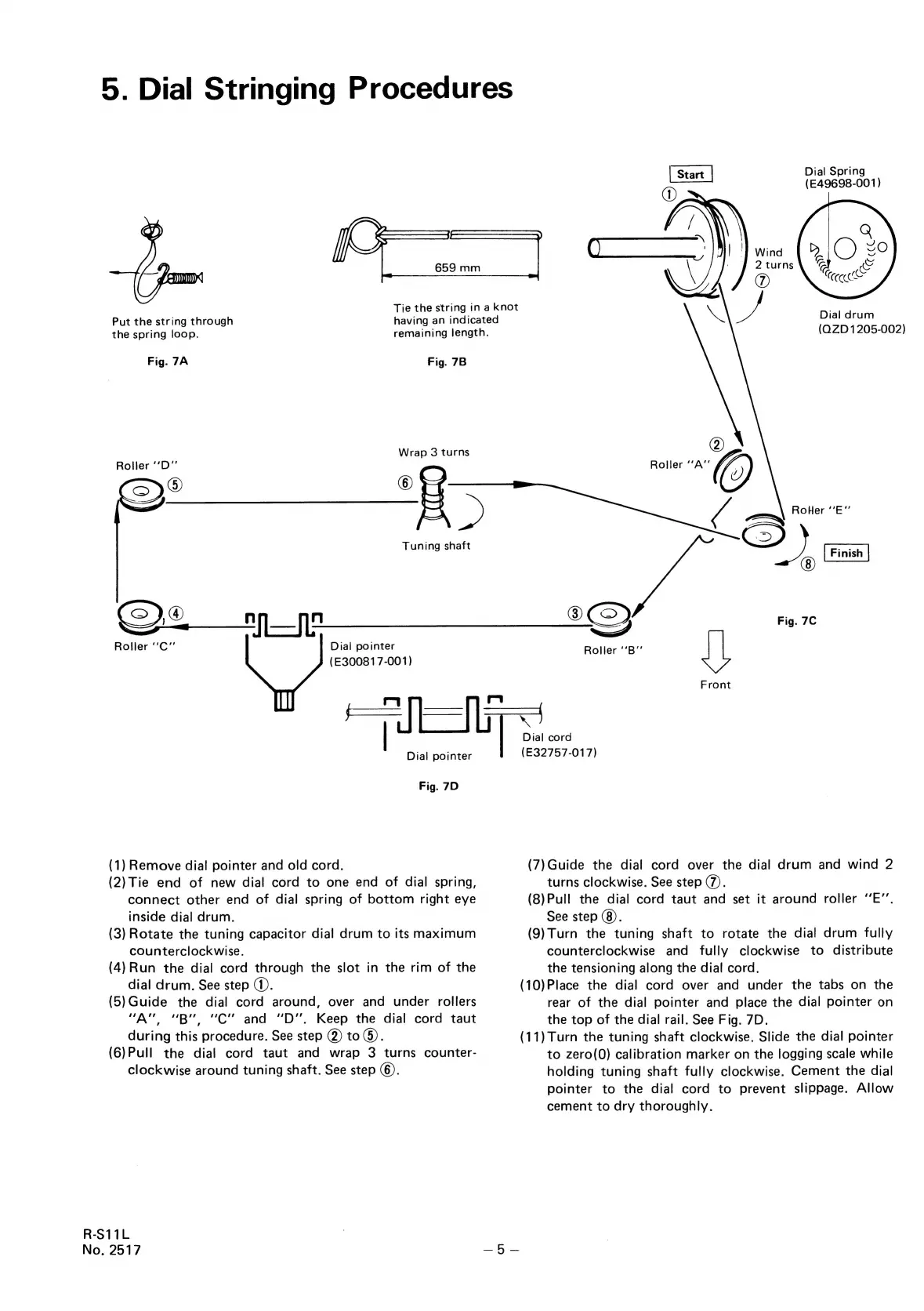

5. Dial Stringing Procedures
659 mm
Tie the string in a kno
Dial Spring
(E49698-001)
t
Put
the
string
through
having
an
indicated
Dial
drum
the
spring
loop.
remaining
length.
(QZD1205-002)
Fig.
7A
Fig.
7B
Wrap
3
turns
©
Holler
Roller
“A
lk
RodHer
E”
Tuning
shaft
C2)
)
mar
[Finish
|
@
CO?
Fig.
7C
Roller ‘‘C”’
Dial pointer
(E30081 7-001)
ETI :
Dial pointer
Fig. 7D
(1) Remove dial pointer and old cord.
(2)Tie end of new dial cord to one end of dial spring,
connect other end of dial spring of bottom right eye
inside dial drum.
(3) Rotate the tuning capacitor dial drum to its maximum
counterclockwise.
(4) Run the dial cord through the slot in the rim of the
dial drum. See step (1).
(5)Guide the dial cord around, over and under rollers
“AU, “B", “CC” and “D’. Keep the dial cord taut
during this procedure. See step @) to @).
(6)Pull the dial cord taut and wrap 3 turns counter-
clockwise around tuning shaft. See step 6).
R-S11L
No, 2517
Ss
Roller ‘'B”’
L
Front
Dial cord
(E32757-017)
(7)Guide the dial cord over the dial drum and wind 2
turns clockwise. See step (7).
(8)Pull the dial cord taut and set it around roller ‘’E”’.
See step (8).
(9)Turn the tuning shaft to rotate the dial drum fully
counterclockwise and fully clockwise to distribute
the tensioning along the dial cord.
(10)Place the dial cord over and under the tabs on the
rear of the dial pointer and place the dial pointer on
the top of the dial rail. See Fig. 7D.
(11) Turn the tuning shaft clockwise. Slide the dial pointer
to zero(Q) calibration marker on the logging scale while
holding tuning shaft fully clockwise. Cement the dial
pointer to the dial cord to prevent slippage. Allow
cement to dry thoroughly.
