Motor
oe.
Driving Belt mas \\ Pause Bar
\\ eee Arm
\
ie Stop Lever
Shut-off Ass’y
a Driving Pulley
Take-up Disk }
Detection
Belt
Kick Lever Release Leve

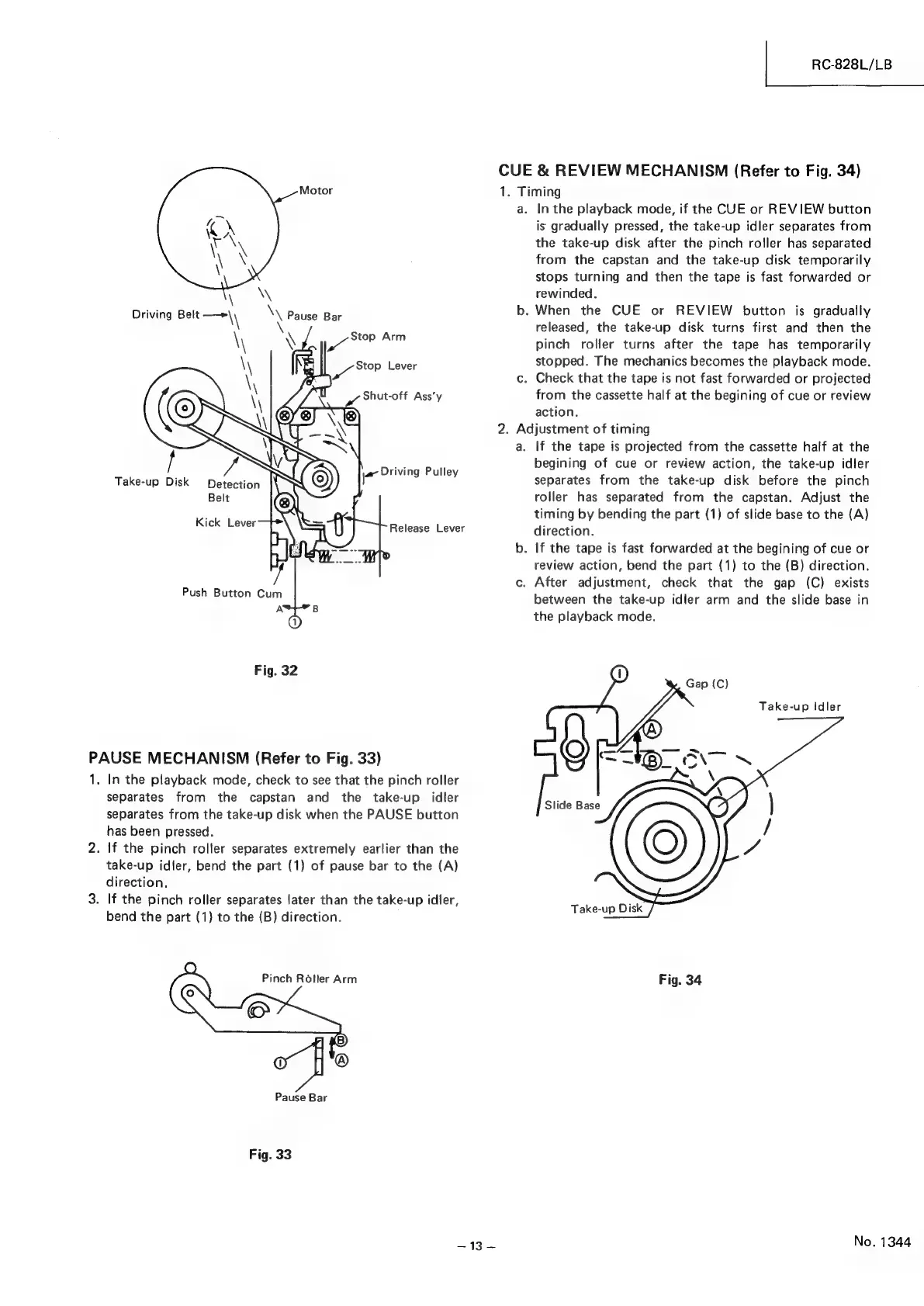

PAUSE MECHANISM (Refer to Fig. 33)
1.
In the playback mode, check to see that the pinch roller
separates from the capstan and the take-up idler
separates from the take-up disk when the PAUSE button
has been pressed.
. If the pinch roller separates extremely earlier than the
take-up idler, bend the part (1) of pause bar to the (A)
direction.
. If the pinch roller separates later than the take-up idler,
bend the part (1) to the (B) direction.
Pause Bar
Fig. 33
RC-828L/LB
CUE & REVIEW MECHANISM (Refer to Fig. 34)
1. Timing
a.
In the playback mode, if the CUE or REVIEW button
is gradually pressed, the take-up idler separates from
the take-up disk after the pinch roller has separated
from the capstan and the take-up disk temporarily
stops turning and then the tape is fast forwarded or
rewinded.
. When the CUE or REVIEW button is gradually
released, the take-up disk turns first and then the
pinch roller turns after the tape has temporarily
stopped. The mechanics becomes the playback mode.
. Check that the tape is not fast forwarded or projected
from the cassette half at the begining of cue or review
action.
2. Adjustment of timing
r
~13 —
a.
If the tape is projected from the cassette half at the
begining of cue or review action, the take-up idler
separates from the take-up disk before the pinch
roller has separated from the capstan. Adjust the
timing by bending the part (1) of slide base to the (A)
direction.
. If the tape is fast forwarded at the begining of cue or
review action, bend the part (1) to the (B) direction.
. After adjustment, check that the gap (C) exists
between the take-up idler arm and the slide base in
the playback mode.
Gap (C)
Take-up Idler
Slide Base
Take-up Disk
Fig. 34
