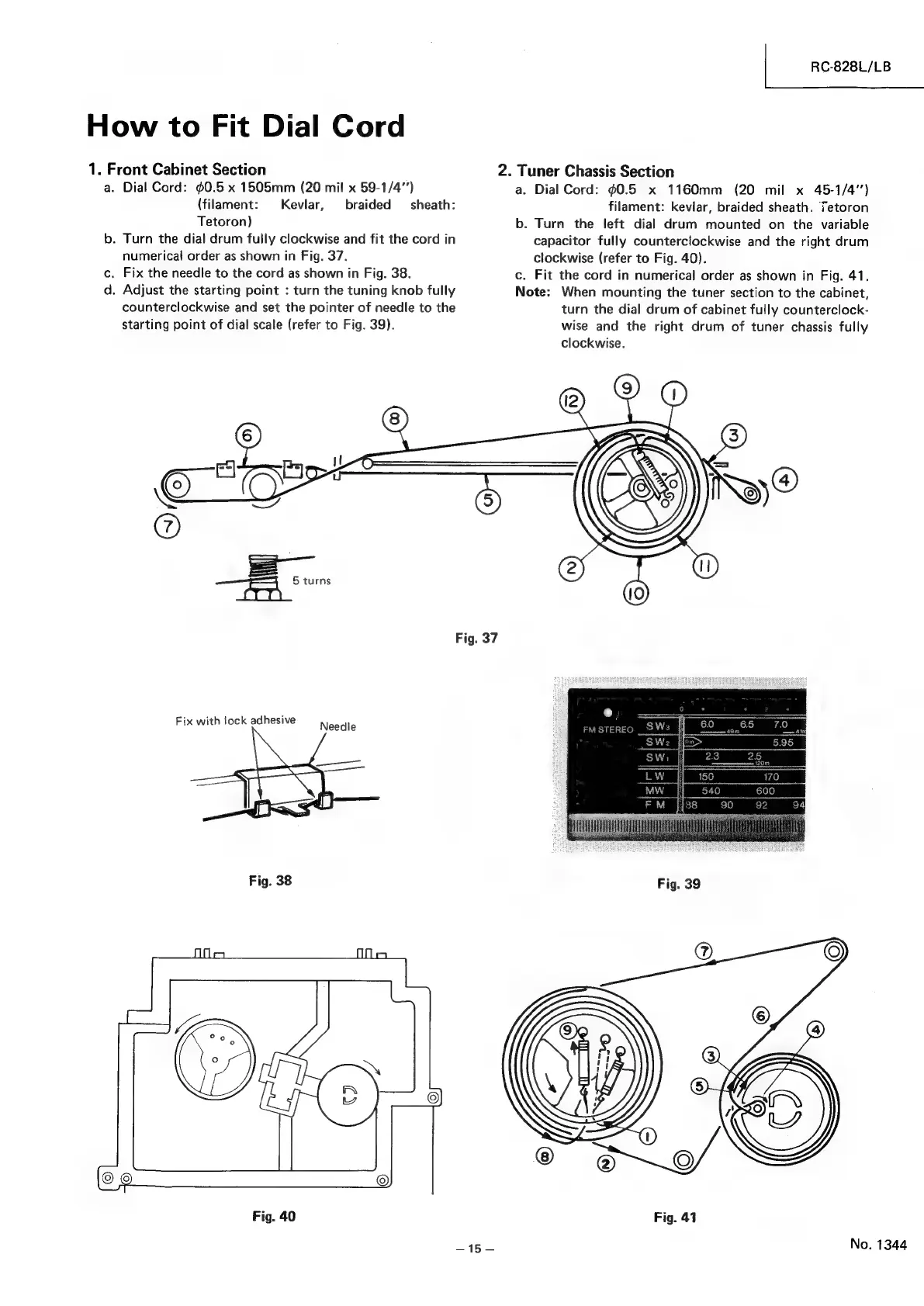

How
to
Fit
Dial
Cord
1.
Front
Cabinet
Section
a.
Dial
Cord:
$0.5
x
1505mm
(20
mil
x
59-1/4’’)
(filament:
Kevlar,
braided
sheath:
Tetoron)
b.
Turn
the
dial
drum
fully
clockwise
and
fit
the
cord
in
numerical
order
as
shown
in
Fig.
37.
c.
Fix
the
needle
to
the
cord
as
shown
in
Fig.
38.
d.
Adjust
the
starting
point
:
turn
the
tuning
knob
fully
counterclockwise
and
set
the
pointer
of
needle
to
the
starting
point
of
dial
scale
(refer
to
Fig.
39).
Fn
*
turns
Fig.
37
Fix
with
lock
adhesive
Needle
Fig.
38
Fig.
40
—15—
|
RC-828L/LB
2.
Tuner
Chassis
Section
a.
Dial
Cord:
¢0.5
x
1160mm
(20
mil
x
45-1/4”)
filament:
kevlar,
braided
sheath.
Tetoron
b.
Turn
the
left
dial
drum
mounted
on
the
variable
capacitor
fully
counterclockwise
and
the
right
drum
clockwise
(refer
to
Fig.
40).
c.
Fit
the
cord
in
numerical
order
as
shown
in
Fig.
41.
Note:
When
mounting
the
tuner
section
to
the
cabinet,
turn
the
dial
drum
of
cabinet
fully
counterclock-
wise
and
the
right
drum
of
tuner
chassis
fully
clockwise.
Fig.
39
No.
1344
