JVC RC-BZ5RD Service Manual

RC-BZ5LB/BZ5RD
3-13
Item Parts number Parts name Area
A
Packing parts list
Q'ty Description
Block No. M4MM
P 1 GJ560340040101 CUSHION (L) 1
P 2 GJ560340050101 CUSHION (R) 1
P 3 GJ560340140101 CARTON WALL 1 RC-BZ5RD
GJ560340130101 CARTON WALL 1 RC-BZ5LB
P 4 QPA02503503P POLY BAG 1 250 X 350
P 5 GJ740456520300 POLYBAG PE 1 450 X 650
P 6 QPA01503503 POLY BAG 1 150 X 350
P 7 QPA01202505 POLY BAG 1 120 X 250
P 8 LV30189-001A CARTON LABEL 1
Item Parts number Parts name Area
A
Accessories parts list
Q'ty Description
Block No. M5MM
A 1 GJ350161831129 POWER CORD
A
1 7A 120V 1.80M
A 2 GJ773012200101 INTRUCTIONS J,C1 ENG SPA FRE
A 3 BT-20044G ACC SAFETY GUID J,C1 GJ775000140101
A 4 GJ775000200202 SERVICE LIST J,C1
A 5 GJ775000340101 SVC CENTER LIST J,C1
A 6 GJ773030190302 WARRANTY CARD J1
A 7 GJ773030290101 WARRANTY CARD C1
A 8 GJA1002014001C REMOCON UNIT 1
A 9 GJ460340320102 BATTER COVER 1 REMOTE CONTROL
P3
P5
P1
P6
A1
A10
P2
A9
A8
P7
P8
P4
A2~A7

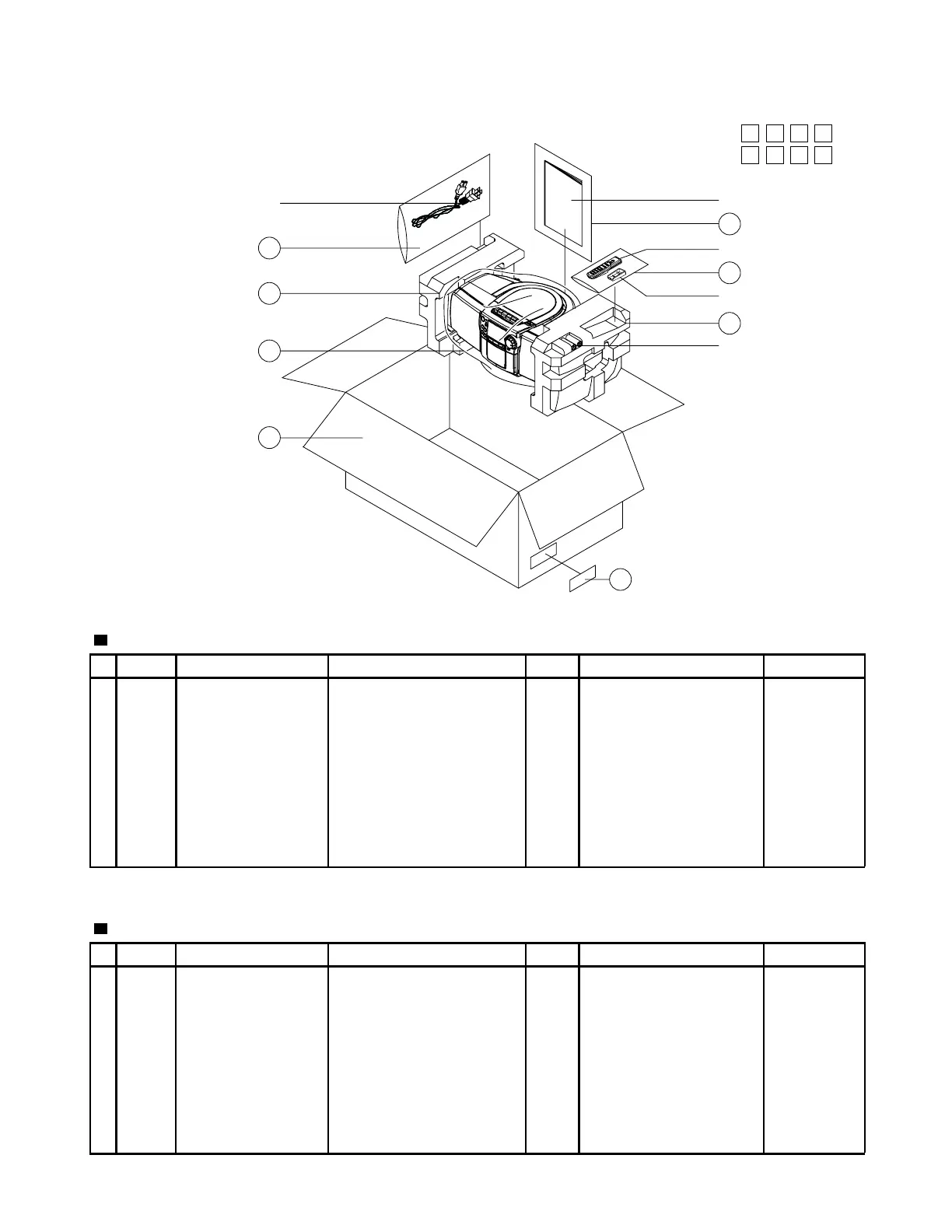

Packing materials and accessories parts list
