RC-BZ5LB/BZ5RD
3-6
16
4
3
2
9
10
13
11
15
14
8
6
1
7
6
5
G-31KB
(Grease to apply have
to be alittle for the
exchange)
G-31KB
G-31KB

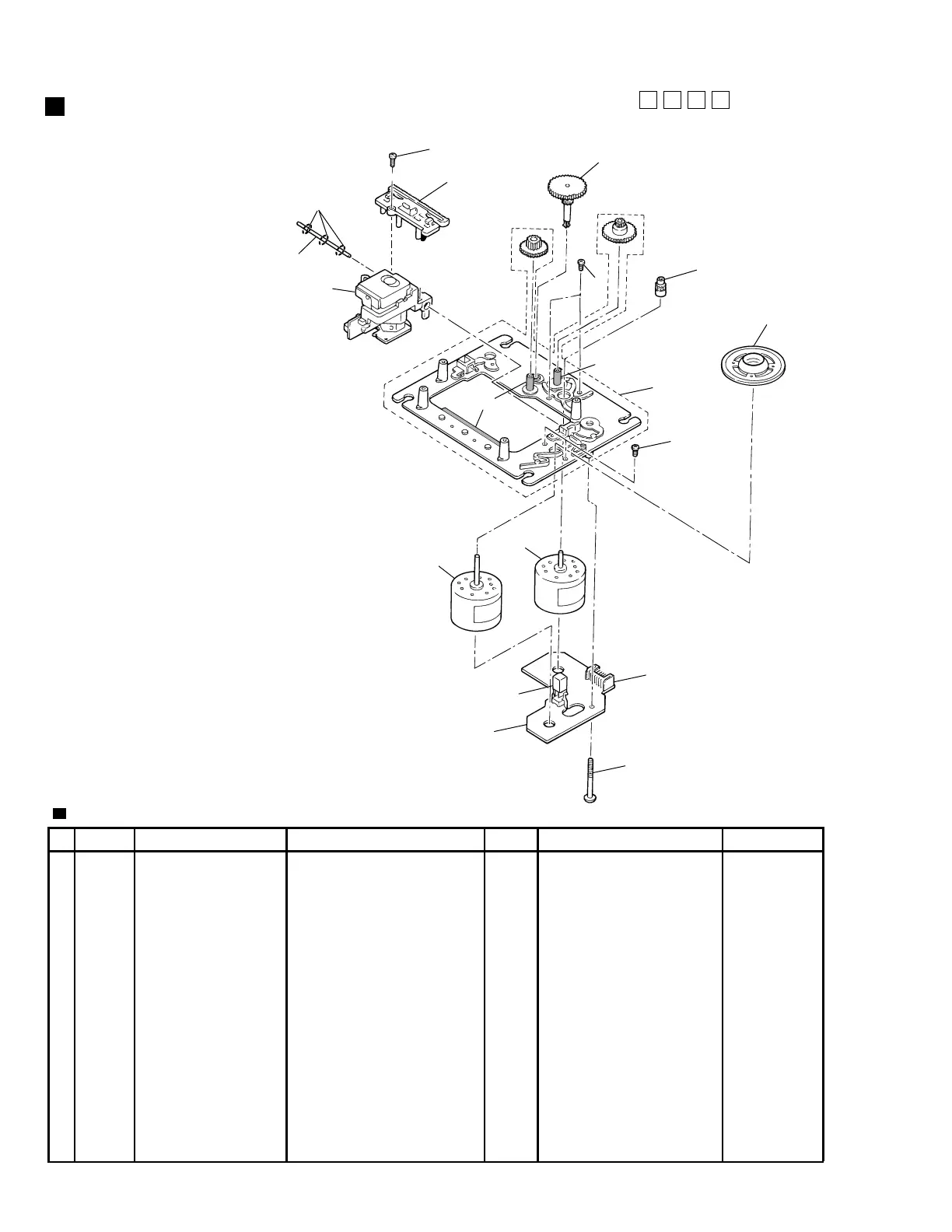

CD mechanism assembly and parts list
Grease Point
No.EXL-M7B
NOTE
Please order moutor after confirming the number
of the P.C.Board because the combination of feed
motor is different according to the P.C.Board used.
Block No.
M
M
M
3
Item Parts number Parts name Area
A
Parts list ( CD mechanism assembly )
Q'ty Description
Block No. M3MM
1 GJ560280020101 MECHA BASE 1
2 OPTIMA-7B CD PICK UP 1
3 E407782-001 PICK STAFT 1
4 E307746-001 CD RACK GEAR 1 GEAR SHAFT
5 GJ560280010101 MECHA GEAR 1
6 GJ50312003102 SCREW MZX3 B/H 4
7 E406750-001 PINION GEAR 1
8 GJA2062001001C CD TURN TABLE 1
9 GJ90028678400 FEED MOTOR 1
10 GJ90028678300 SPINDLE MOTOR 1
11 GJ100069000100 MECH CIR BOARD 1
13 GJ157208512 LEAF SWITCH 1
14 GJ50322623312 SPECIAL SCREW 1
15 GJ51206010101 6P PLUG ASSY 1
16 SDSF2006Z SCREW 1
