RC-BZ5LB/BZ5RD
3-5
TN-21ZVC-1800

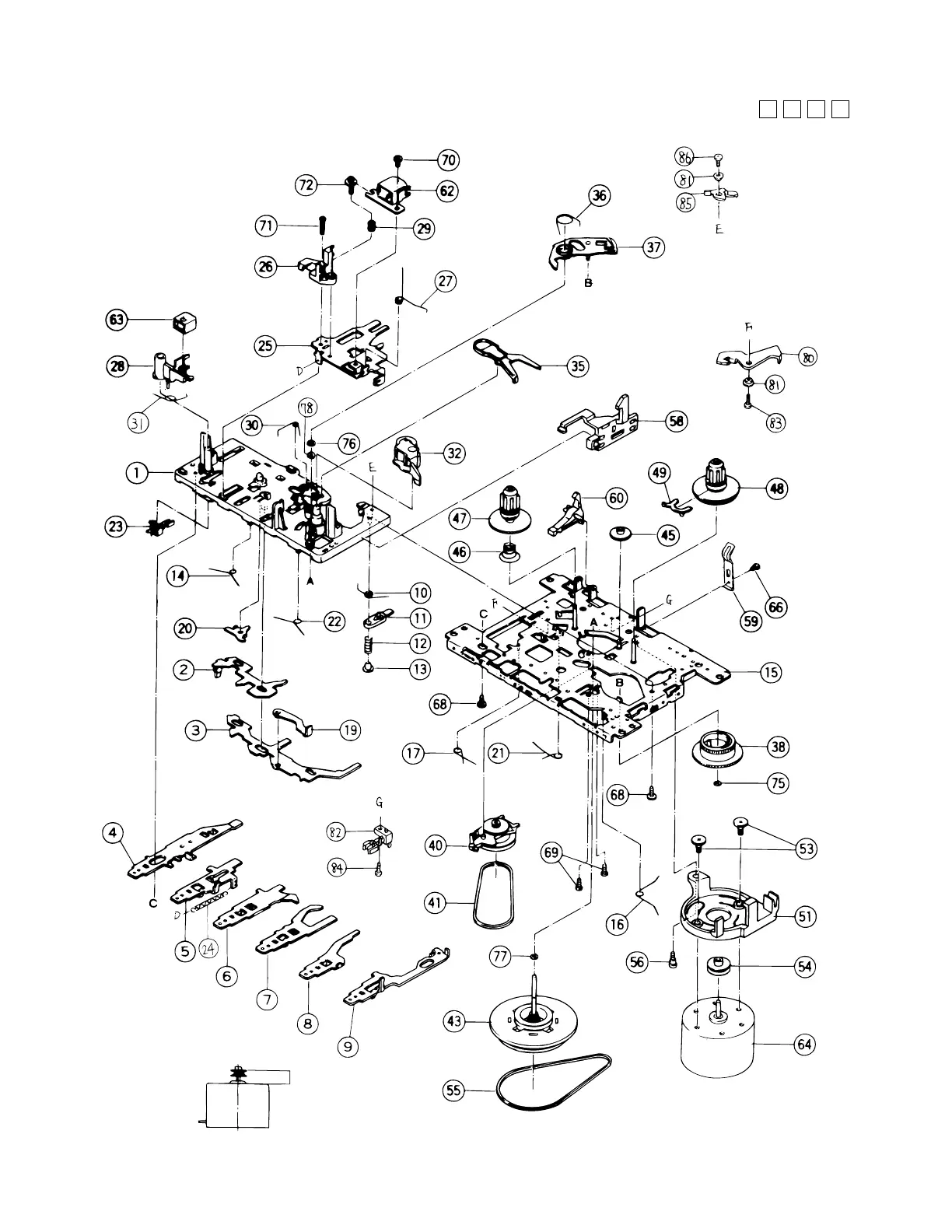

Cassette mechanism assembly and parts list
Block No.
M
M
M
2
Pulley hight dimension
7.6±0.1
www.freeservicemanuals.info
11/28/2017
Digitized in Heiloo Netherlands
