JVC RC-S22 C - Controls and Connections

RC-S22 C/W/JW/WH/L/LB/LD

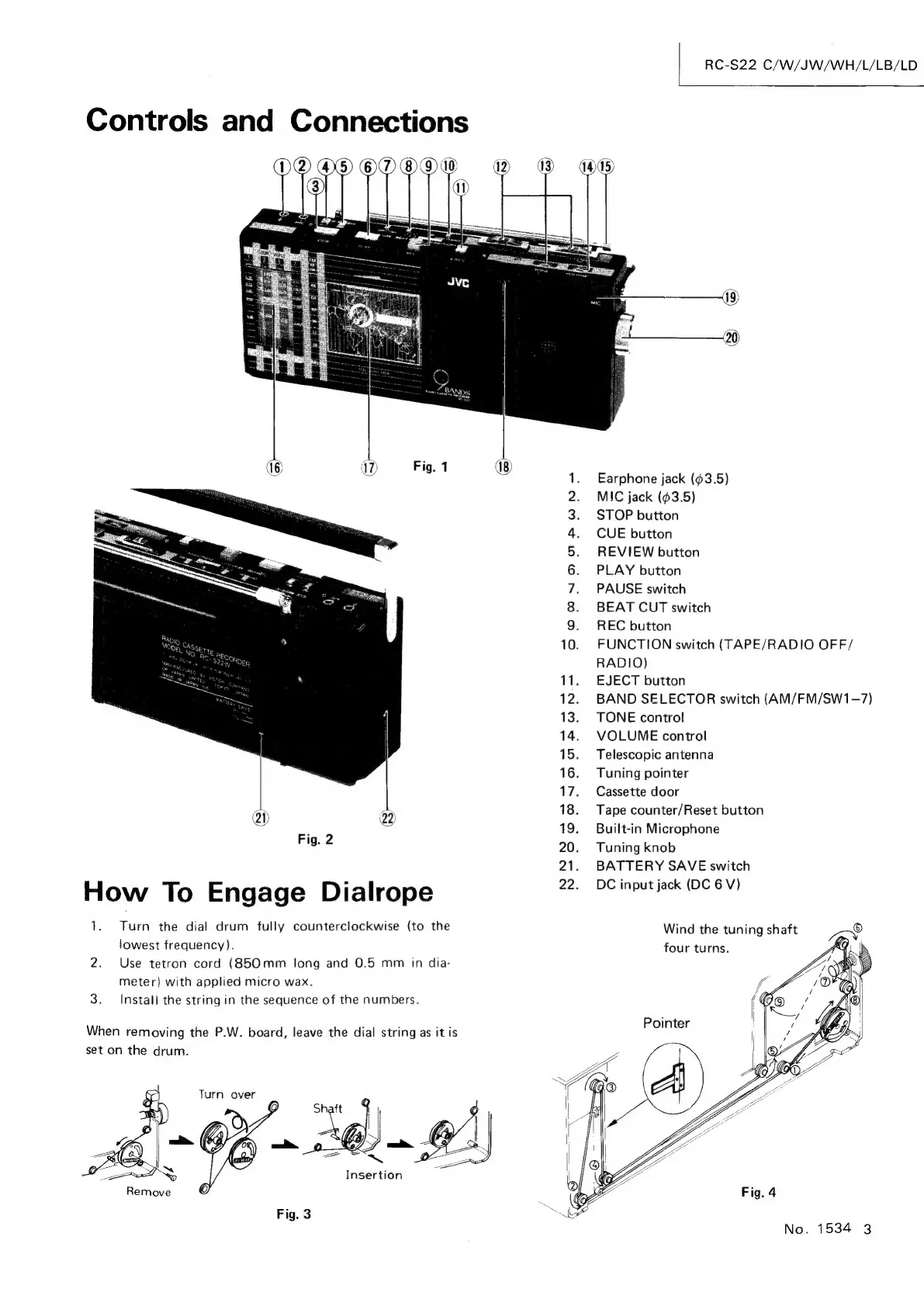

Controls and Connections
Earphone jack (¢3.5)
MIC jack (63.5)
STOP button
CUE button
REVIEW button
PLAY button
PAUSE switch
BEAT CUT switch
REC button
FUNCTION switch (TAPE/RADIO OFF/
RADIO)
11. EJECT button
12. BAND SELECTOR switch (AM/FM/SW1-7)
13. TONE control
14. VOLUME control
15. Telescopic antenna
16. Tuning pointer
17. Cassette door
18. Tape counter/Reset button
: : 19. Built-in Microphone
Fig. 2 20. Tuning knob
21. BATTERY SAVE switch
22. DC input jack (DC 6 V)
SEDNATAWNS =
How To Engage Dialrope
1. Turn the dial drum fully counterclockwise (to the Wind the tuning shaft ®
lowest
frequency).
four
turns.
Ce
2. Use tetron cord (850mm long and 0.5 mm in dia-
meter) with applied micro wax.
3. Install the string in the sequence of the numbers. ( (
|
Pointer
When removing the P.W. board, leave the dial string as it is
set on the drum.
Insertion
Fig. 4
Fig. 3 te
No. 1534 3
