JVC RC-S22 C - Main Parts Location; Chassis Base Assembly

RC-S22 C/W/JW/WH/L/LB/LD

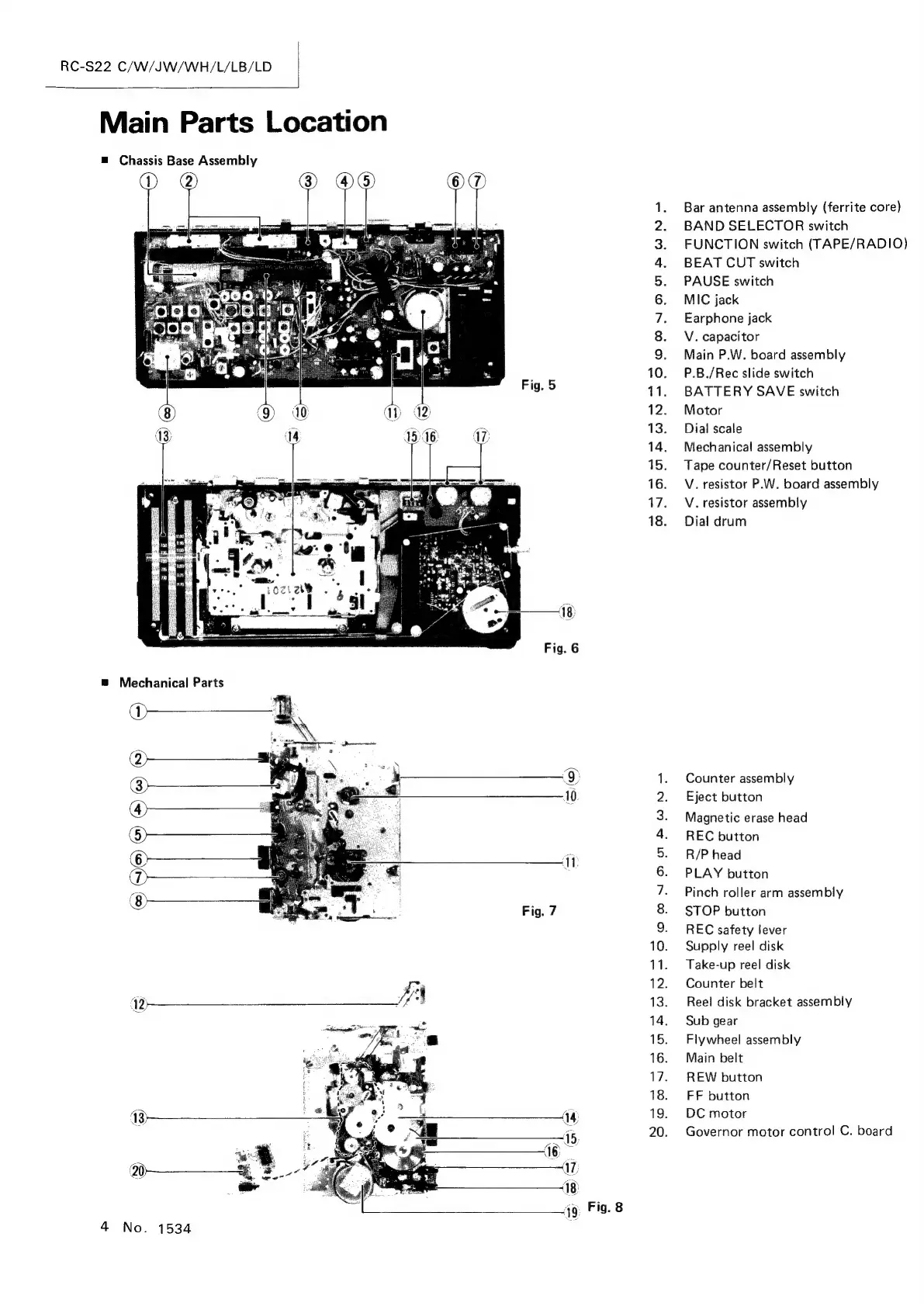

Main Parts Location
= Chassis Base Assembly
Bar antenna assembly (ferrite core)
BAND SELECTOR switch
FUNCTION switch (TAPE/RADIO)
BEAT CUT switch
PAUSE switch
MIC jack
Earphone jack
V. capacitor
Main P.W. board assembly
10. P.B./Rec slide switch
11. BATTERY SAVE switch
12. Motor
13. Dial scale
14. Mechanical assembly
15. Tape counter/Reset button
16. V. resistor P.W. board assembly
17. V. resistor assembly
18. Dial drum
ON AT AWN S
co
(©)
Counter assembly
Eject button
oOo
Magnetic erase head
REC button
R/P head
PLAY button
Pinch roller arm assembly
STOP button
9. REC safety lever
10. Supply reel disk
11. Take-up reel disk
12. Counter belt
13. Reel disk bracket assembly
OOO GT COIN
14. Sub gear
15. Flywheel assembly
16. Main belt
17. REW button
18. FF button
19. DC motor
20. Governor motor control C. board
