JVC RX-5042S User Manual

9
DVD
IN
DVD
IN
DVD
R
L
L
A
B
C
E
D
F
G
RIGHT LEFT
FRONT
SUB
WOOFER
AUDIO
RIGHT
SURR
LEFT
DVD
IN
CENTER
R
DVD
IN
DVD
IN
DVD
A
B
C
D
RIGHT LEFT
FRONT
SUB
WOOFER
AUDIO
RIGHT
SURR
LEFT
CENTER
DVD
IN
R
L

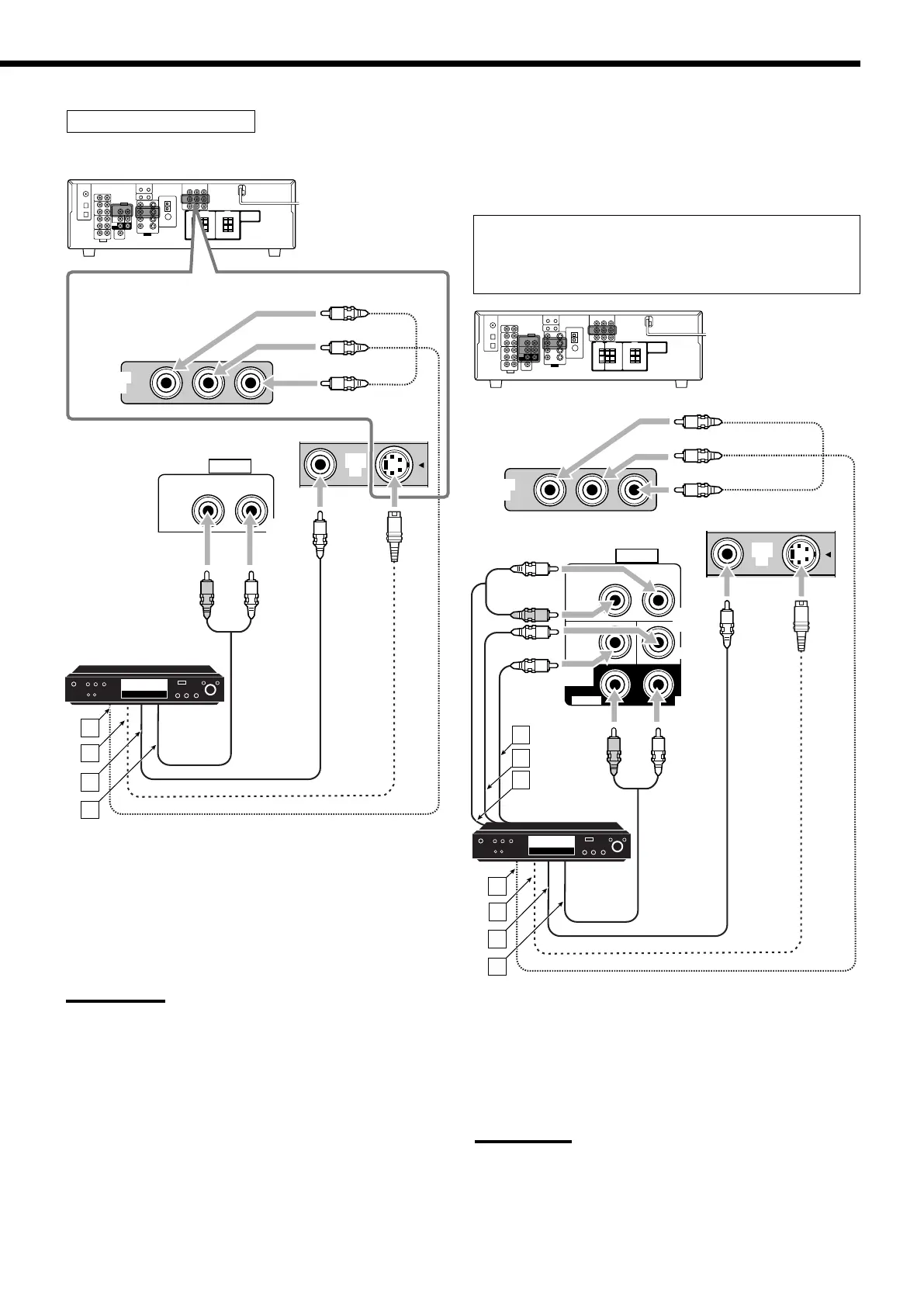

DVD player
DVD player
Only for RX-6042S
• When you connect a DVD player with its analog discrete
output (5.1-channel reproduction) jacks:
This connection is the best connection method for enjoying
DVD Audio sounds.
• When a DVD Audio disc is played back, the original high-
quality sounds can be reproduced only using this connection.
Å To subwoofer output
ı To center channel audio output
Ç To left/right front channel audio output
Î To component video output
‰ To S-video output
Ï To composite video output
Ì To left/right surround channel audio output
Note:
When connecting a DVD player to the component video input jacks,
make the component video input setting (VIDEO IN DVD) correctly for
AV COMPU LINK. See page 22 for details.
DVD player
• When you connect a DVD player with stereo output jacks:
Å To component video output
ı To S-video output
Ç To composite video output
Î To left/right front channel audio output (or to audio-mixed
output if necessary)
Notes:
• For RX-6042S: When connecting a DVD player to the component
video input jacks, make the component video input setting (VIDEO
IN DVD) correctly for AV COMPU LINK. See page 22 for details.
• To enjoy Dolby Digital and DTS multi-channel software (including
Dual Mono software), connect the DVD player through the digital
input/output terminals.
Green
Red
Blue
Green
Red
Blue
Only for RX-6042S
01-10_5042&6042[A]2.p65 04.3.26, 6:33 PM9
