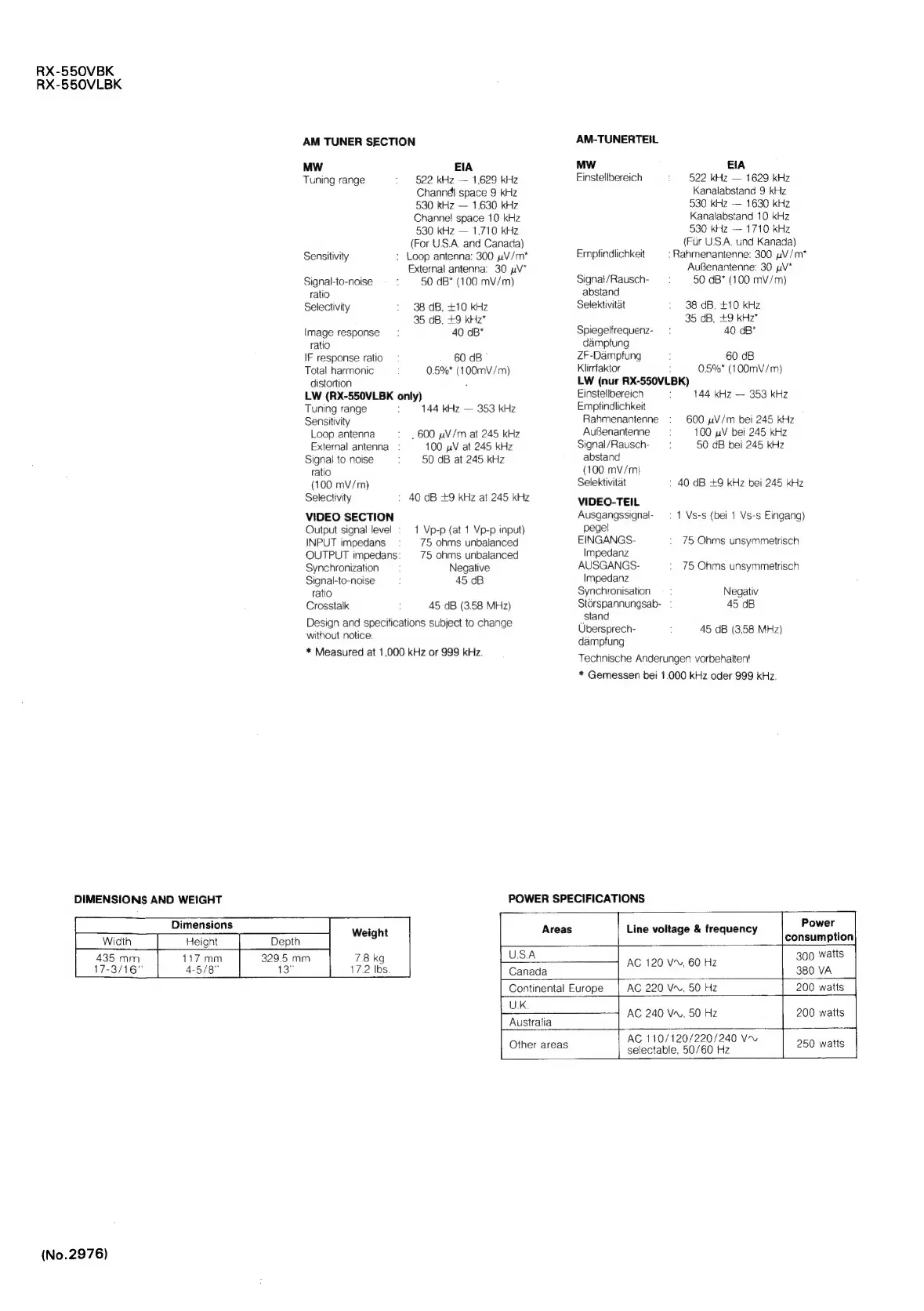

RX-550VBK
RX-550VLBK
Tuning range
AM TUNER SECTION
MW EIA
$22 kHz — 1,629 kHz
Channdél space 9 kHz
530 kHz — 1.630 kHz
Channel! space 10 kHz
530 kHz — 1,710 kHz
(For USA. and Canada)
AM-TUNERTEIL
MW EIA
Einstellbereich : 522 kHz — 1629 kHz
Kanalabstand 9 kHz
530 kHz — 1630 kHz
Kanalabstand 10 kHz
530 kHz — 1710 kHz
(Fur U.S.A. und Kanada)
Sensitivity : Loop antenna: 300 pV/m* Empfindlichkeit
External antenna: 30 pV*
:Rahmenantenne: 300 uV/m*
AuBenantenne: 30 pV*
Signal-to-noise 50 dB* (100 mV/m) Signai/Rausch- 50 dB* (100 mV/m)
ratio abstand
Selectivity > 38 dB, +10 kHz Selektivitat - 38 dB, +10 kHz
35 dB, +9 kHz” 35 dB, +9 kHz*
Image response: 40 dB* Spiegelfrequenz- —: 40 dB*
ratio damptung
IF response ratio; 60 dB ZF-Dampfung : 60 cB
Tota! harmonic 0.5%" (100mV/m) Klirrfaktor : 0,5%* (100mV/m)
distortion * LW (nur RX-550VLBK)
LW (RX-550VLBK only) Einstellbereich 144 kHz — 353 kHz
Tuning range 144 kHz — 353 kHz Empfindlichkeit
Sensitivity Rahmenantenne 600 pV/m bei 245 kHz
Loop antenna 600 pV/m at 245 kHz Au8enantenne 100 pV bei 245 kHz
External antenna: 100 pV at 245 kHz Signal/Rausch- 50 dB bei 245 kHz
Signal to noise 50 dB at 245 kHz abstand
ratio (100 mV/m)
(100 mV/m) Selektivitat : 40 dB +9 kHz bei 245 kHz
Selectivity : 40 dB +9 kHz at 245 kHz VIDEO-TEIL
VIDEO SECTION Ausgangssignal- : 1 Vs-s (bei 1 Vs-s Eingang)
Output signa! level - 1 Vp-p (at 1 Vp-p input) pegel
INPUT impedans 75 ohms unbalanced EINGANGS- 75 Ohms unsymmetrisch
OUTPUT impedans: 75 ohms unbalanced Impedanz
Synchronization —: Negative AUSGANGS- 75 Ohms unsymmetrisch
Signal-to-noise : 45 dB Impedanz
ratio Synchronisation — Negativ
Crosstalk > 45 dB (358 MHz) parable 45 dB
men FS stan
pee colina ae subject to change Up ersprech- 45 dB (3,58 MH?)
dampfung
* Measured at 1,000 kHz or 999 kHz. Technische Anderungen vorbehalten!
* Gemessen bei 1.000 kHz oder 999 kHz.
DIMENSIONS AND WEIGHT POWER SPECIFICATIONS
Dimensions Areas Line voltage & frequency | Powel;
Width
Height
consumption
435 mm 117 mm USA 300 watts
17-3/16" 4-5/8" Canada EE eee 380 VA
Continental Europe | AC 220 Vw. 50 Hz 200 watts
UK.
; AC 240 Vu, 50 Hz 200 watts
Australia
I
{
AC 110/120/220/240 Vu
Other areas selectable, 50/60 Hz 250 hats: |
(No.2976)
